CMM Machine Quotation Checklist For Overseas Buyers
2026-06-03 13:35CMM Machine Quotation Checklist For Overseas Buyers
Requesting a CMM machine quotation is not as simple as asking for a machine price. For overseas buyers, a coordinate measuring machine is a precision inspection system that involves machine structure, measuring range, accuracy, probe system, software functions, fixtures, calibration, export packaging, installation support, training, and after-sales service. If the quotation is not detailed enough, buyers may face hidden costs, missing accessories, unsuitable machine size, limited software capability, or installation problems after delivery. This checklist helps overseas buyers prepare the right information and compare CMM quotations more accurately before placing an order.
Quick Answer
Before requesting a CMM machine quotation, overseas buyers should prepare part drawings, CAD files, maximum part size, tolerance requirements, measured features, inspection purpose, probe needs, software reporting requirements, fixture expectations, installation environment, destination country, delivery terms, calibration needs, training requirements, and after-sales service expectations. A complete quotation should clearly list machine model, measuring range, accuracy, probe package, software modules, accessories, export packaging, installation support, warranty, and total cost.
1. Start With The Real Inspection Task
A useful CMM quotation must begin with the real inspection task. Overseas buyers should first define what parts need to be inspected, what dimensions are critical, what tolerances must be verified, and how the CMM will be used in daily production. A machine for occasional sample inspection may need a different configuration from a machine used for batch production, first article inspection, PPAP documentation, or customer approval.
If the supplier does not understand the inspection task, the quotation may only include a standard machine model and base price. This can create problems later, especially when the buyer needs special probe access, GD&T reports, scanning measurement, custom fixtures, or export installation support.

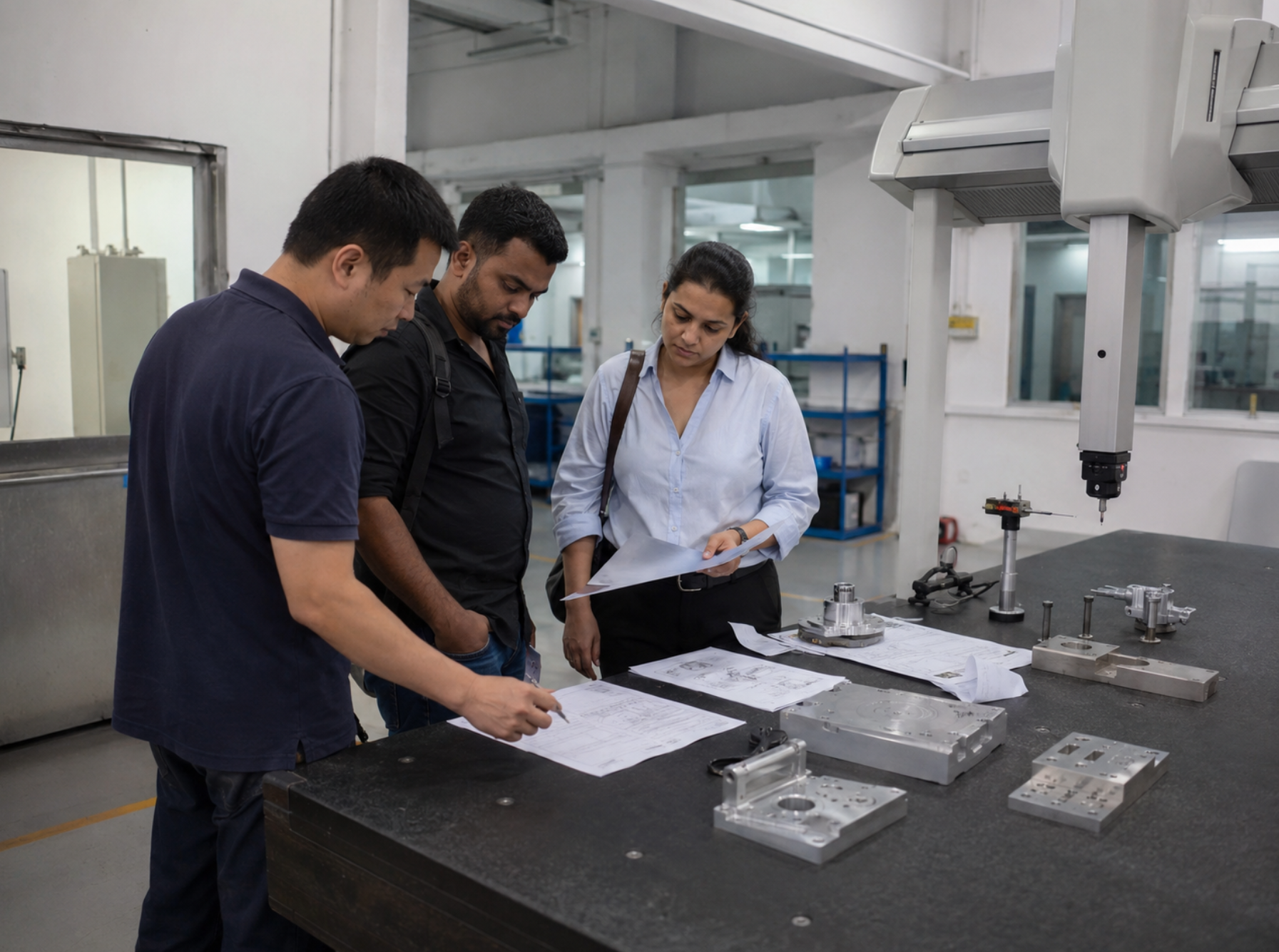

Before asking for price, buyers should prepare drawings, CAD files, sample part photos, tolerance information, inspection frequency, and reporting requirements. This allows the supplier to recommend a more practical and complete CMM solution.
2. Confirm Machine Model, Measuring Range And Accuracy
The quotation should clearly show the CMM model, machine type, measuring range, accuracy specification, repeatability, load capacity, and working environment requirements. Overseas buyers should not compare quotations only by machine size. A machine with the same measuring range may have different accuracy, structure quality, software package, probe system, and service scope.
| Quotation Item | What Buyers Should Check | Why It Matters |
|---|---|---|
| Machine Model | Bridge CMM, shop-floor CMM, large-size CMM or customized system | Ensures the machine type fits the application |
| Measuring Range | X, Y, Z travel, fixture height, probe clearance | Prevents size limitation after delivery |
| Accuracy | Accuracy specification, repeatability, calibration condition | Determines whether the CMM can verify required tolerances |
| Load Capacity | Maximum part weight plus fixture weight | Important for heavy machined parts, castings, and fixtures |
| Environment Requirement | Temperature, vibration, air supply, power supply | Affects real measurement stability after installation |
3. Check What Probe System Is Included

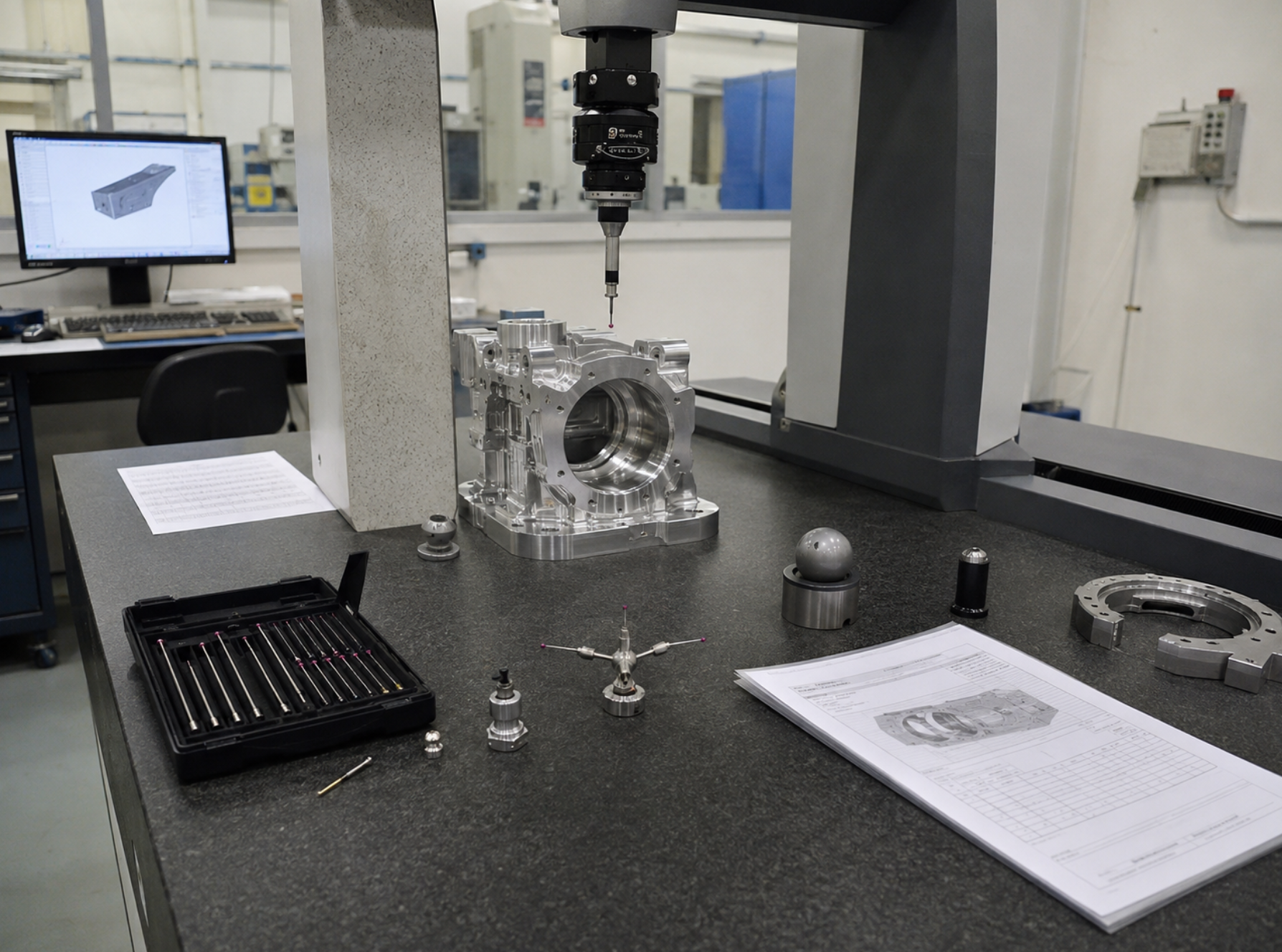

The probe system is one of the most important parts of a CMM quotation. Some quotations include only a basic touch trigger probe, while others include a motorized probe head, scanning probe, stylus kit, calibration sphere, probe changer, extension bars, or additional accessories. Buyers should ask the supplier to list every probe-related item clearly.
A low quotation may look attractive at first, but if the probe package is too basic, the buyer may not be able to measure deep bores, side features, profiles, or complex GD&T requirements. Probe configuration should be selected according to real part geometry and inspection tasks.
Probe Package Checklist
Touch trigger probe model and quantity
Motorized probe head or manual probe head
Scanning probe requirement if profile or surface measurement is needed
Stylus kit, extension bars, star stylus, angled stylus, and spare stylus balls
Calibration sphere and probe qualification accessories
Probe changer or multi-probe system if automatic inspection is required
Compatibility with CMM software and inspection workflow
4. Confirm Software Modules And Report Functions
Software can significantly affect the total value of a CMM quotation. Overseas buyers should check whether the quotation includes basic measurement software only, or whether it also includes CAD import, GD&T evaluation, offline programming, automatic inspection reports, SPC data output, scanning data processing, and custom report templates.
For CNC machining, automotive, aerospace, die casting, mold, and industrial quality control projects, report quality is very important. The software should help buyers generate clear inspection reports for customers, audits, internal records, and production improvement.
| Software Function | Should Be Clearly Quoted? | Buyer Value |
|---|---|---|
| CAD Import | Yes | Supports model-based inspection and programming |
| GD&T Evaluation | Yes | Verifies position, flatness, profile, runout, and datum requirements |
| Automatic Report | Yes | Reduces manual reporting time and improves traceability |
| SPC Output | If needed | Helps monitor batch quality and process drift |
| Scanning Data Processing | If scanning probe is included | Supports profile and surface measurement |
5. Ask Whether Fixtures Are Included Or Optional

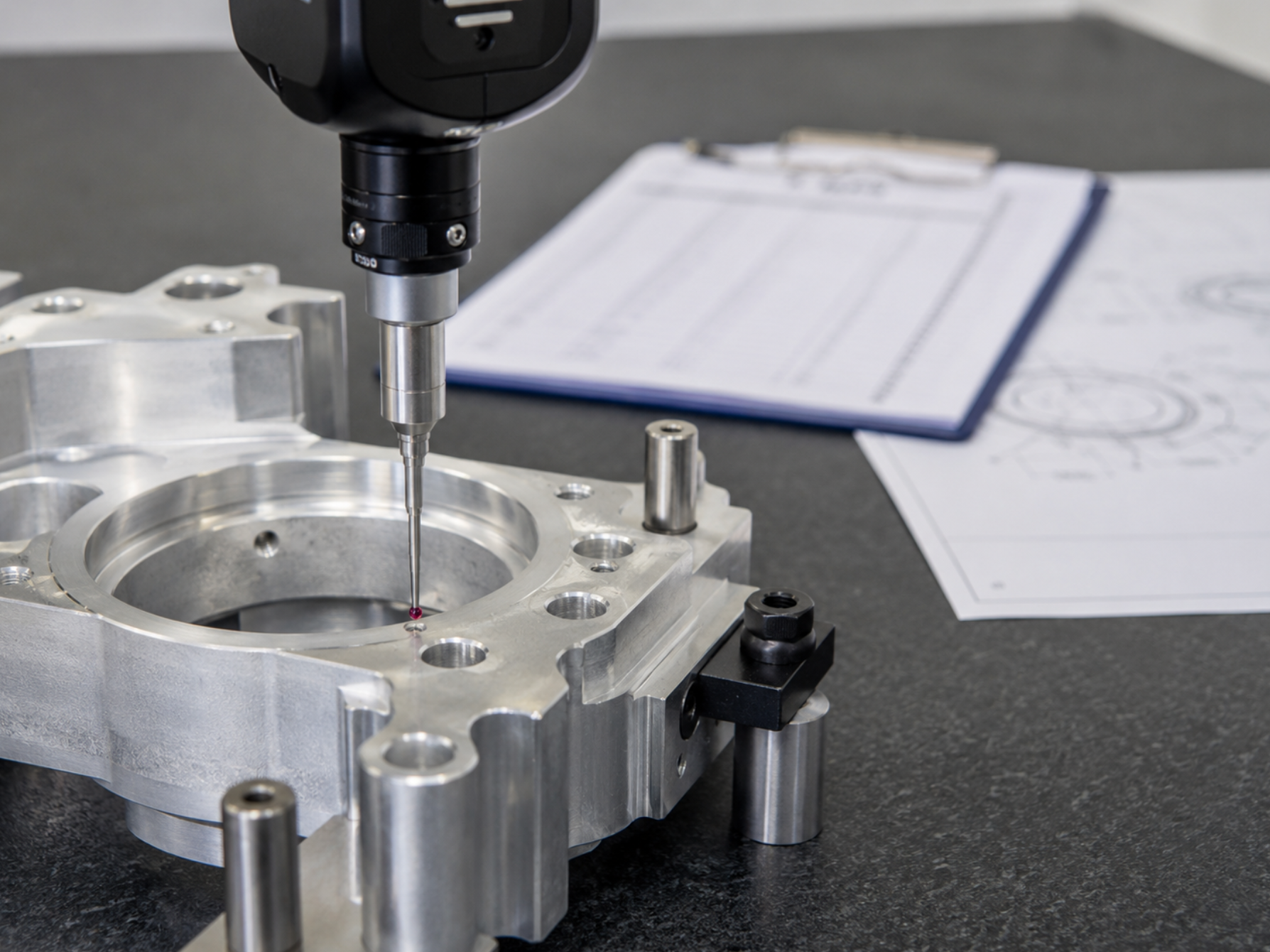

Many CMM quotations do not include custom fixtures by default. However, fixture design can strongly affect measurement repeatability, especially for batch inspection, thin-wall parts, die casting parts, automotive housings, aerospace brackets, and complex machined components. Overseas buyers should confirm whether the quotation includes modular fixtures, custom fixtures, fixture base plates, clamps, locating pins, or only the machine itself.
If the buyer needs repeatable production inspection, fixture cost should be discussed early. Otherwise, the machine may arrive, but operators may still struggle to position parts consistently.
6. Export Packaging, Documents And Delivery Terms

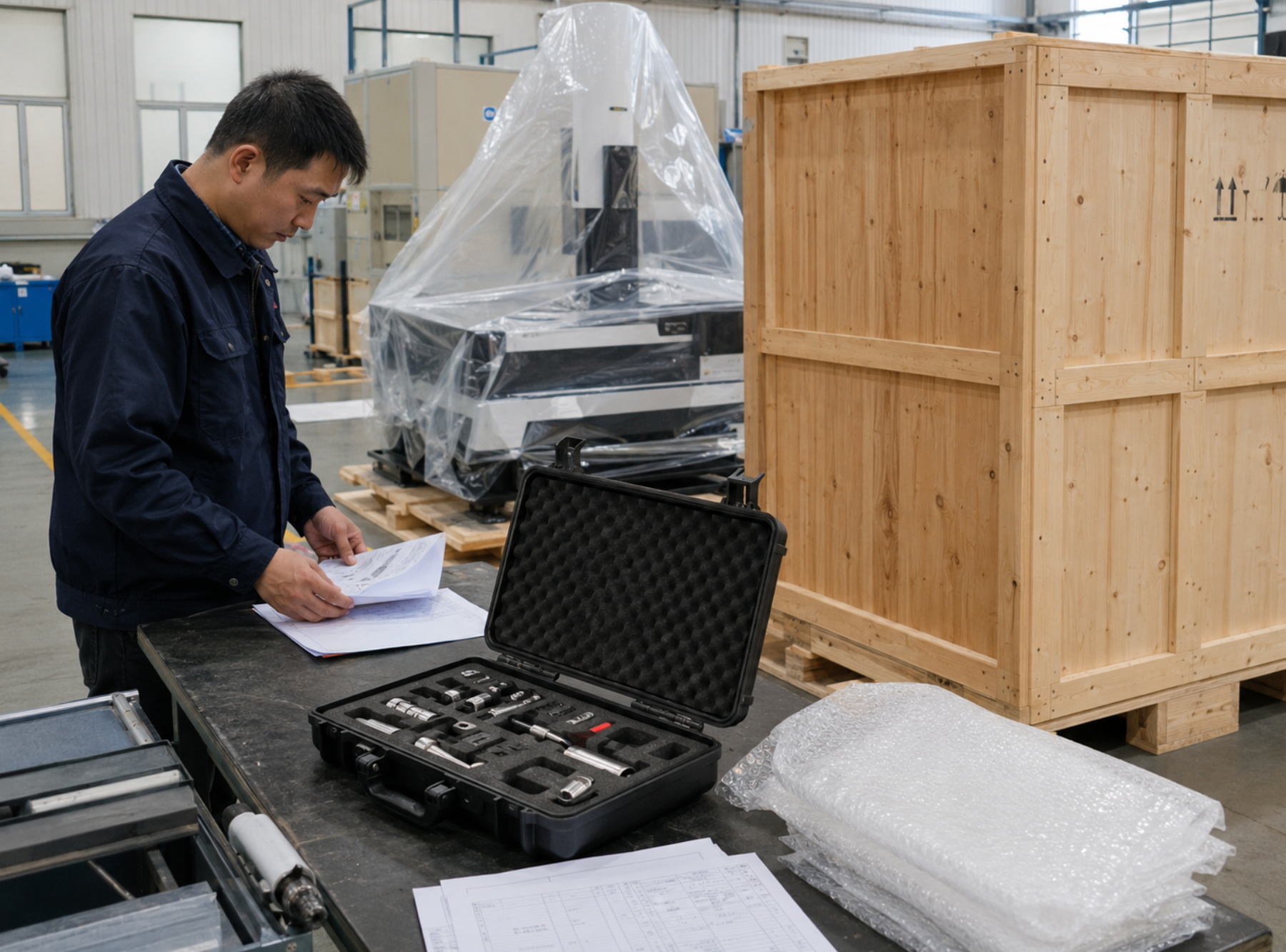

For overseas buyers, export packaging and documents are not small details. A CMM is precision equipment, so the machine body, granite table, probe system, computer, controller, cables, accessories, calibration sphere, and documents must be protected during long-distance transportation.
The quotation should clearly state packaging method, delivery terms, shipping size, gross weight, packing list, and included export documents. Buyers should also confirm whether pre-shipment photos, factory acceptance report, calibration certificate, user manual, and warranty document will be provided.
Export Checklist
Export-grade wooden case or protective packaging
Shock protection, moisture protection, and accessory protection
Commercial invoice, packing list, and delivery documents
Calibration certificate and acceptance testing record
Manuals, software license information, and warranty document
FOB, CIF, DAP, EXW or other Incoterms clearly stated
Estimated production time, shipping time, and delivery responsibility
7. Installation, Calibration, Training And Acceptance
A complete CMM quotation should explain what happens after delivery. Overseas buyers should ask whether installation guidance, leveling instructions, software setup, probe qualification, accuracy verification, calibration support, operator training, and acceptance testing are included. If on-site service is not included, the supplier should provide remote video support and detailed installation documents.
Buyers should also confirm whether the supplier can support real part testing after installation. A machine that passes basic movement checks may still need program setup and fixture adjustment before it can support daily inspection.
8. Final Quotation Checklist Before Placing An Order
Machine type, model, measuring range, accuracy and load capacity are clearly listed.
Probe system, stylus kit, calibration sphere and probe accessories are clearly included.
Software modules, CAD import, GD&T, report and SPC functions are clearly explained.
Fixture requirements are confirmed as included, optional or excluded.
Calibration certificate, factory acceptance and site acceptance requirements are discussed.
Export packaging, shipping dimensions, gross weight and packing list are provided.
Delivery terms, production time, shipping method and payment terms are clear.
Installation guidance, training, warranty and after-sales support are included in writing.
Spare parts, software update, remote support and service response are confirmed.
The supplier has reviewed part drawings, CAD files and inspection requirements before final quotation.
A quotation that clearly answers these points is easier to compare and less likely to create hidden costs after purchase.
9. Common Quotation Mistakes Overseas Buyers Should Avoid
Comparing CMM quotations only by final price.
Ignoring probe system, stylus kit, calibration accessories and software modules.
Choosing measuring range without considering fixture height and probe clearance.
Assuming custom fixtures are included when they are not listed.
Not confirming export packaging and shipping protection.
Skipping installation, calibration, training and acceptance support details.
Requesting a quotation without drawings, CAD files, tolerance data or measured features.
Paying deposit before checking what is included and what is optional.
Conclusion
A CMM machine quotation should be evaluated as a complete inspection solution, not just a machine price. Overseas buyers should check machine model, measuring range, accuracy, probe system, software modules, fixtures, calibration, export packaging, delivery terms, installation guidance, training, warranty and after-sales support. By providing drawings, CAD files, tolerance requirements, measured features and destination information before quotation, buyers can receive a more accurate CMM recommendation and avoid hidden costs during overseas procurement.
