5-Axis Machining Centers: Capabilities for Complex Geometry Manufacturing

5-Axis Machining Centers: Capabilities for Complex Geometry Manufacturing

Unlocking Geometric Freedom: Beyond 3 Linear Axes

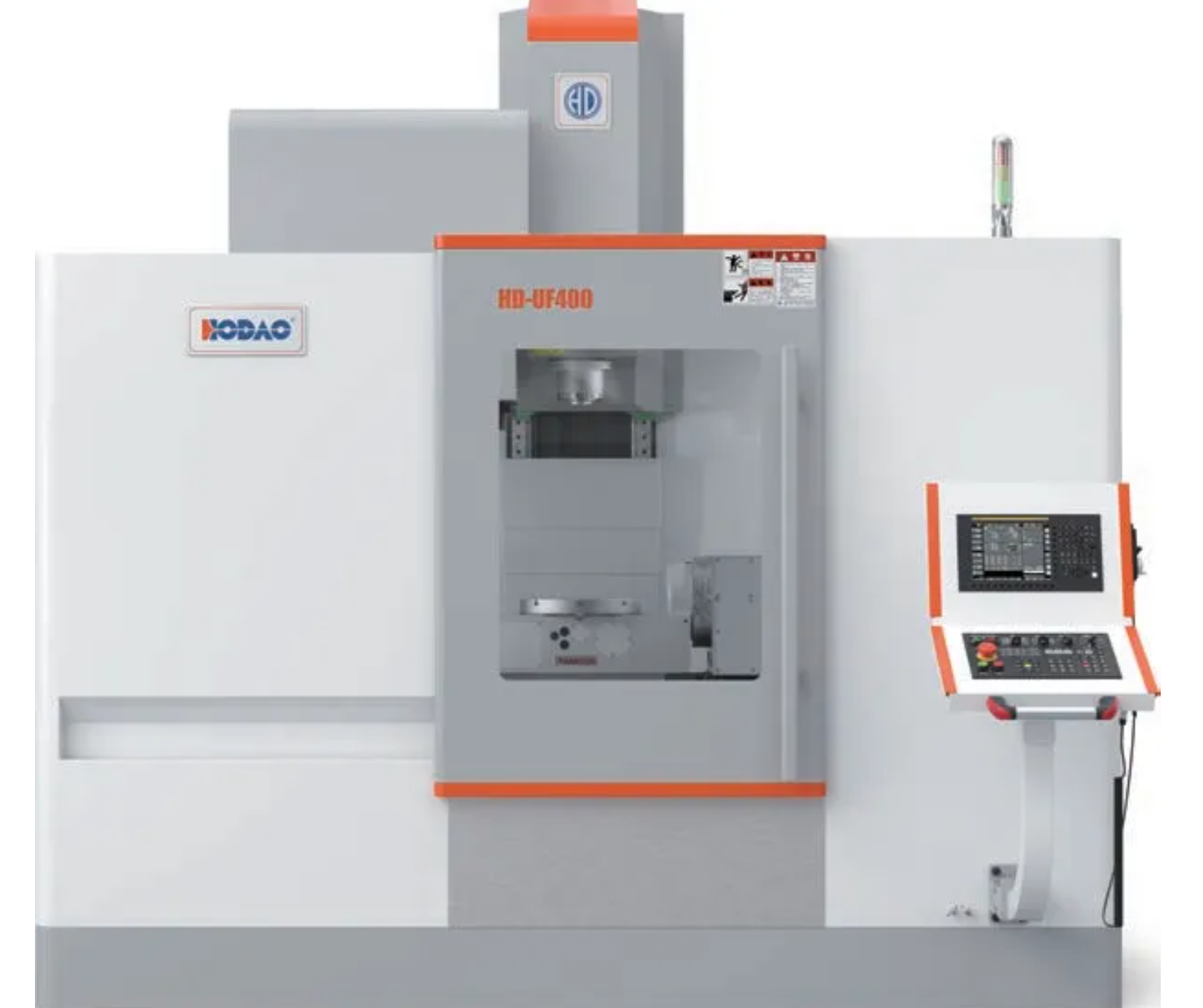

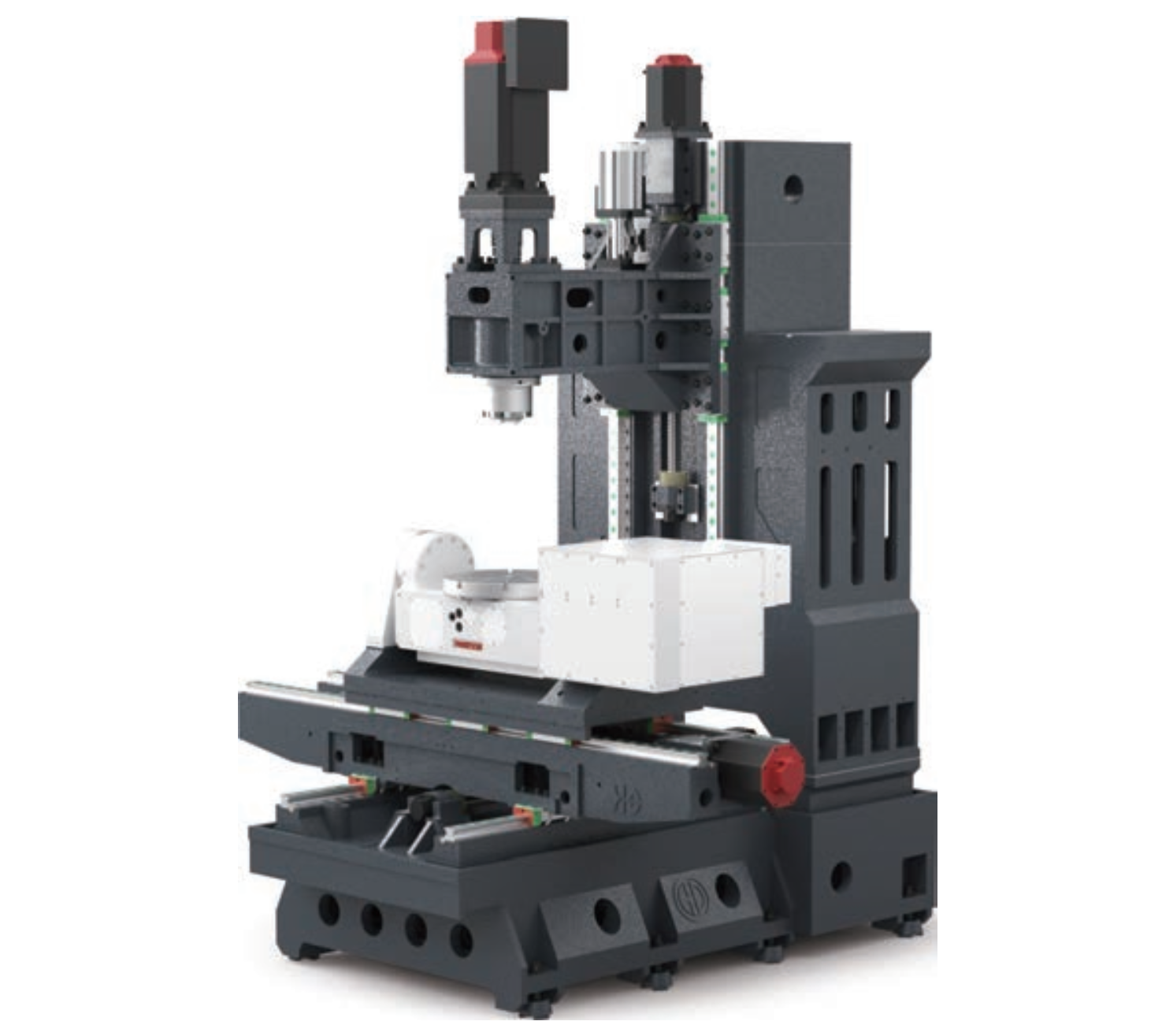

Unlike conventional 3-axis machines, a 5-axis machining center adds two rotational axes (typically A and B, or A and C) to the three linear axes (X, Y, Z). This fundamental kinematic upgrade unlocks the ability to orient the cutting tool at virtually any angle relative to the workpiece. This is the key to machining complex geometries in a single setup. Parts that would require multiple, time-consuming fixturings on a 3-axis machine—like impellers, turbine blades, medical implants, or intricate automotive molds—can be machined completely in one clamping. The tool can approach the workpiece from the optimal angle, allowing for the machining of undercuts, deep cavities, and complex contoured surfaces that are impossible with a fixed tool orientation. This not only enables the production of sophisticated designs but is also essential for industries pushing the boundaries of lightweight, aerodynamically efficient, and highly functional components.

Tangible Benefits: Precision, Efficiency, and Superior Surface Finish

The capabilities of 5-axis machining translate into direct, significant manufacturing advantages. First, by completing a part in a single setup, it eliminates cumulative errors that arise from repositioning the workpiece between operations. This drastically improves overall accuracy and ensures tighter adherence to design tolerances, a critical factor for high-value components. Second, it dramatically enhances machining efficiency. Complex parts can be produced faster due to reduced non-cutting time for fixture changes and the ability to use shorter, more rigid cutting tools that can be oriented optimally, allowing for higher feed rates and deeper cuts. Third, the continuous optimal tool orientation enables superior surface finish. The cutting tool can maintain a consistent, favorable contact angle with the surface, minimizing cusp marks and reducing or eliminating the need for secondary bench work like hand polishing, especially on complex curves and sculpted surfaces.

The Critical Role of Advanced Control and Integration

Harnessing the full potential of 5-axis technology requires more than just a mechanical platform; it demands sophisticated CNC control systems and seamless integration with design and verification tools. The machine's controller must perform complex kinematic transformations in real-time, accurately coordinating the movement of all five axes to follow the programmed tool path. This is where integration with CAM software is vital, as it generates the intricate, collision-free tool paths that leverage the machine's full range of motion. Furthermore, for a holistic precision manufacturing workflow, the integration of in-process measurement becomes paramount. The ability to mount a touch probe on the spindle allows for on-machine part verification, tool setting, and even adaptive machining based on measured data. This closed-loop process ensures that the complex geometry being machined is not only possible but is also being produced correctly the first time, minimizing scrap and rework. For manufacturers, a 5-axis machining center is thus a cornerstone technology for advanced, integrated manufacturing cells.

5-axis machining centers are transformative tools that bridge the gap between intricate digital designs and physical reality. By providing unparalleled geometric freedom, they enable the manufacture of complex, high-value components in a single, accurate setup. The resulting benefits—enhanced precision, reduced cycle times, and exceptional surface quality—make them indispensable in competitive, technology-driven industries like aerospace, medical, and automotive. Ultimately, a 5-axis machine is not just a more capable cutter; it is a strategic platform for innovation, efficiency, and achieving new levels of manufacturing excellence, forming a perfect synergy with precision measurement and automation solutions in a modern smart factory.
