CMM For EV Battery Tray And New Energy Vehicle Components
2026-06-05 13:44CMM For EV Battery Tray And New Energy Vehicle Components
EV battery trays and new energy vehicle components require stable dimensional inspection because they directly affect battery pack assembly, sealing performance, mounting accuracy, structural strength, and vehicle safety. These parts often include large aluminum frames, die-cast housings, machined mounting holes, sealing surfaces, welded structures, cooling plate interfaces, and complex assembly datums. A coordinate measuring machine can help manufacturers verify part size, hole position, flatness, profile, datum relationship, and GD&T requirements before sample approval, batch production, and final delivery.
Quick Answer
For EV battery tray and new energy vehicle component inspection, buyers should choose a CMM according to part size, measuring range, flatness requirement, hole position tolerance, sealing surface accuracy, fixture support, probe access, GD&T software, and production inspection volume. Large battery trays may require a larger measuring range, stable fixture design, and reliable reporting workflow for supplier quality control.

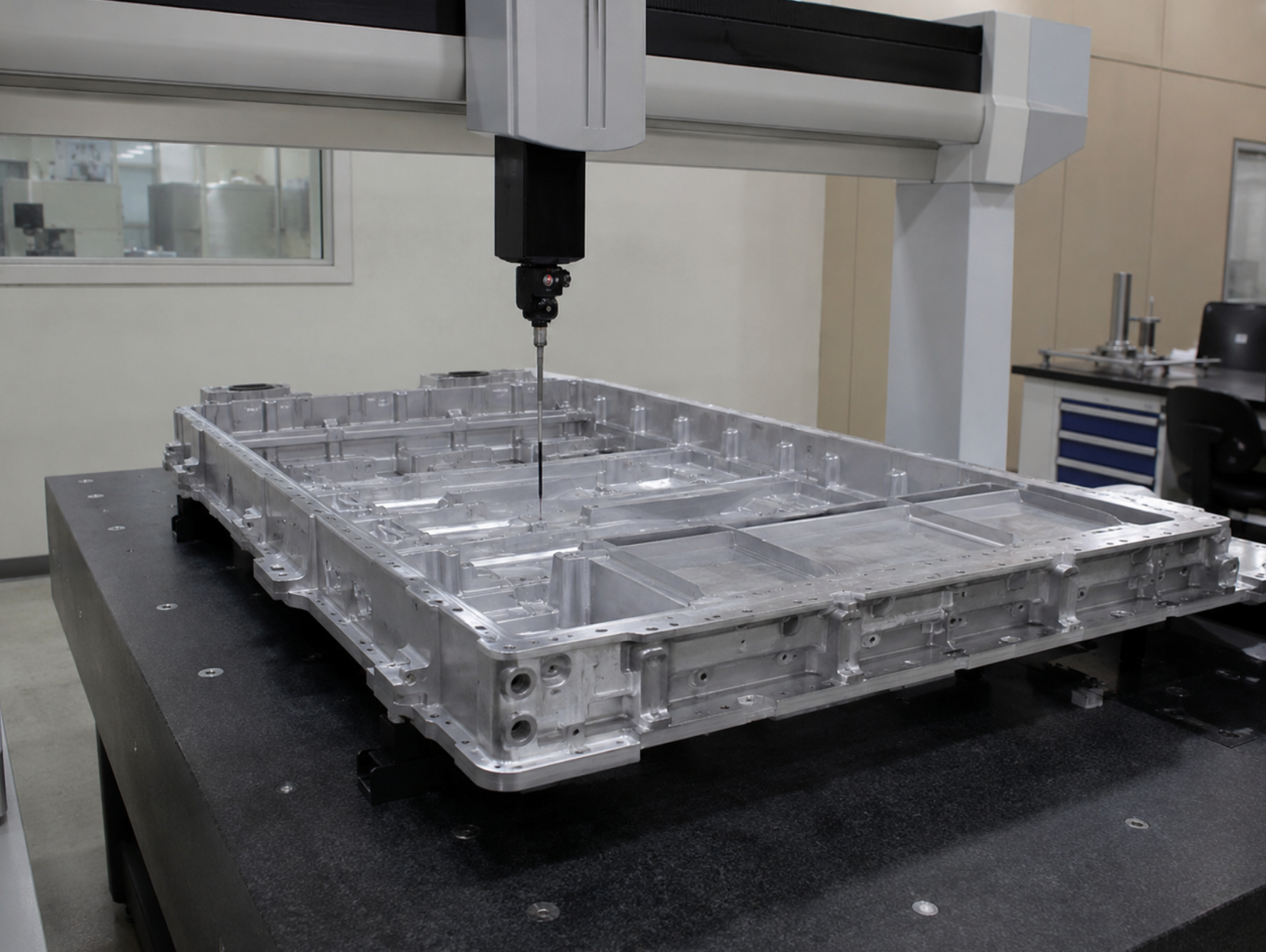

1. Why EV Battery Tray Parts Need CMM Inspection
EV battery trays are usually large structural parts that support battery modules, cooling systems, sealing structures, and mounting interfaces. If the tray has dimensional deviation, the battery pack may not assemble correctly. Poor flatness, incorrect hole position, or unstable datum relationship may cause sealing failure, assembly stress, vibration, water leakage, or production rework.
New energy vehicle components are also becoming more complex. Aluminum die-cast parts, welded frames, machined housings, motor housings, battery pack covers, inverter housings, and cooling plate interfaces often combine casting, welding, machining, and surface finishing processes. Each process may introduce deformation or dimensional variation.
A CMM helps manufacturers inspect these parts with traceable data. It can verify large-size dimensions, datum alignment, hole patterns, mounting points, flatness, profile, and assembly interfaces, making it suitable for first article inspection, batch quality control, customer approval, and supplier audit preparation.

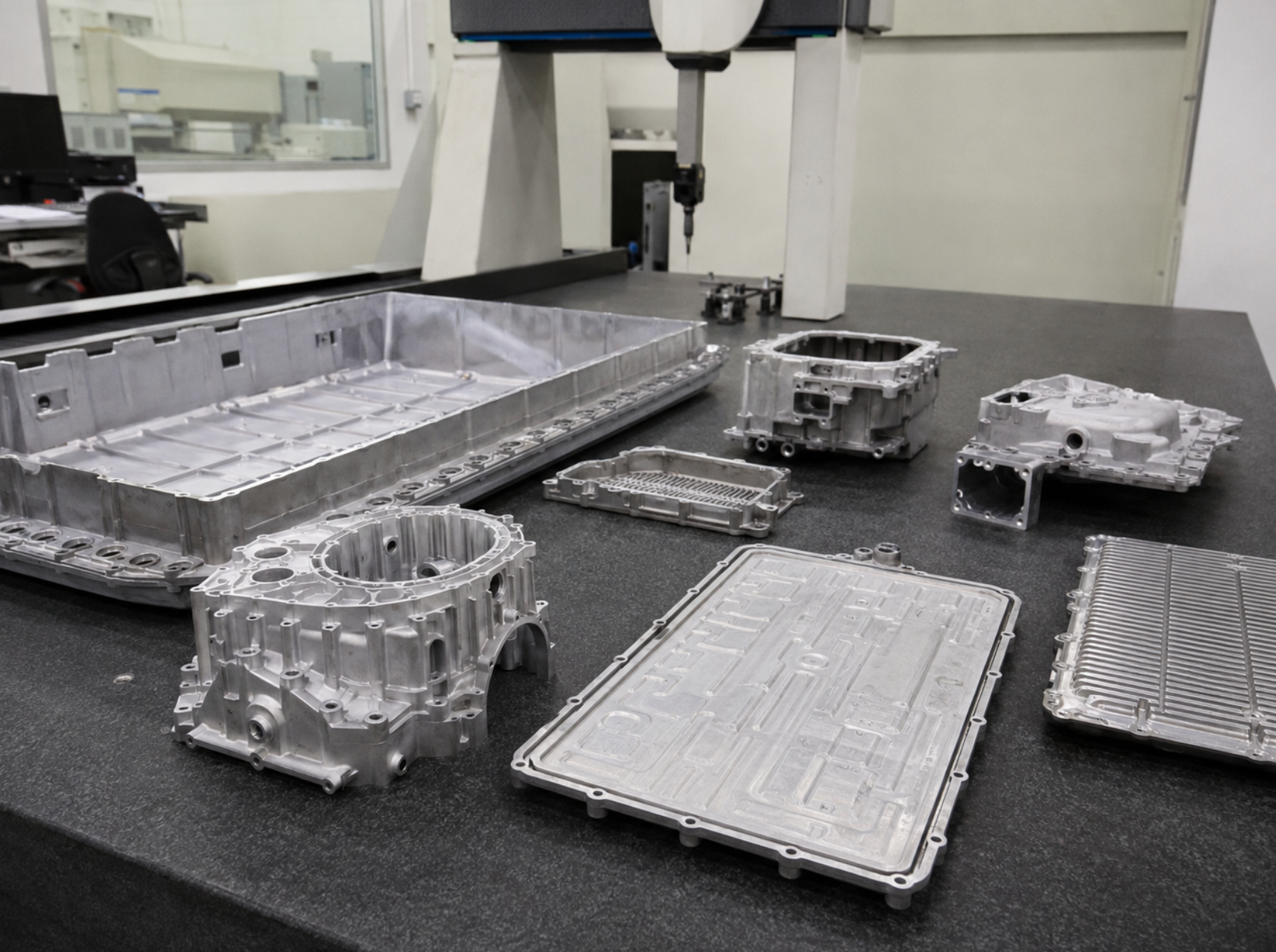

2. Typical EV And New Energy Vehicle Parts Measured By CMM
Different EV components require different measuring ranges, fixtures, probe configurations, and software functions. Buyers should define the part family and inspection focus before requesting a CMM quotation.
| Component Type | Inspection Focus | CMM Selection Priority |
|---|---|---|
| EV Battery Tray | Large size, flatness, hole position, sealing surface, mounting interface | Large measuring range and stable fixture support |
| Battery Pack Cover | Profile, sealing edge, screw holes, deformation | Profile inspection and controlled clamping |
| Motor Housing | Bore diameter, coaxiality, end face flatness, mounting holes | Accuracy, bore strategy, GD&T software |
| Inverter Housing | Thin wall, sealing face, screw holes, datum planes | Fixture repeatability and probe access |
| Cooling Plate Interface | Flatness, profile, hole pattern, sealing surface | Surface measurement and automatic reporting |
3. Key Features Buyers Should Inspect
EV battery tray inspection should focus on the features that affect assembly, sealing, safety, and long-term reliability. A battery tray may look like a large structural part, but many features require strict control. Mounting holes must align with the vehicle structure. Sealing surfaces must remain flat enough to support gasket performance. Module mounting points must maintain stable position. Cooling system interfaces must match connected components accurately.
The inspection plan should follow the drawing datum structure instead of measuring random dimensions. For large EV components, fixture strategy and part support are especially important because incorrect support can change the measurement result.
| Inspection Feature | Why It Matters | Recommended CMM Focus |
|---|---|---|
| Mounting Hole Position | Affects vehicle assembly and battery pack installation | Touch probe and GD&T position tolerance |
| Tray Flatness | Affects module mounting and structural stability | Large-area plane measurement and stable support |
| Sealing Surface | Helps prevent water leakage and sealing failure | Flatness, profile and datum alignment |
| Profile Of Structural Frame | Checks deformation after welding, casting or machining | Scanning probe or CAD comparison if required |
| Cooling Interface | Affects cooling system assembly and heat transfer contact | Surface measurement and report traceability |
4. Recommended CMM Configuration For EV Component Inspection
The correct CMM configuration depends on the part size, tolerance, structure, and inspection workflow. For medium-sized aluminum housings, motor housings, inverter housings, and machined components, a bridge CMM may be suitable. For large battery trays, long aluminum frames, or large welded structures, buyers may need a larger measuring range and a fixture strategy designed specifically for the part.
Recommended Configuration
Machine Type: Bridge CMM for medium-size precision EV components; larger CMM solution for long battery tray structures.
Measuring Range: Selected according to maximum tray size, fixture height, probe clearance and loading direction.
Probe System: Touch trigger probe for holes and planes; scanning probe when profile or surface data is required.
Fixture: Custom support fixture to prevent deformation and ensure repeatable datum location.
Software: CAD import, GD&T evaluation, automatic report and SPC output for production control.
Service: Installation, calibration, acceptance testing, training and after-sales support.
Buyers should compare the complete CMM solution rather than only the machine body. Probe, fixture, software, calibration and service support can strongly affect whether the machine works well for EV part inspection.

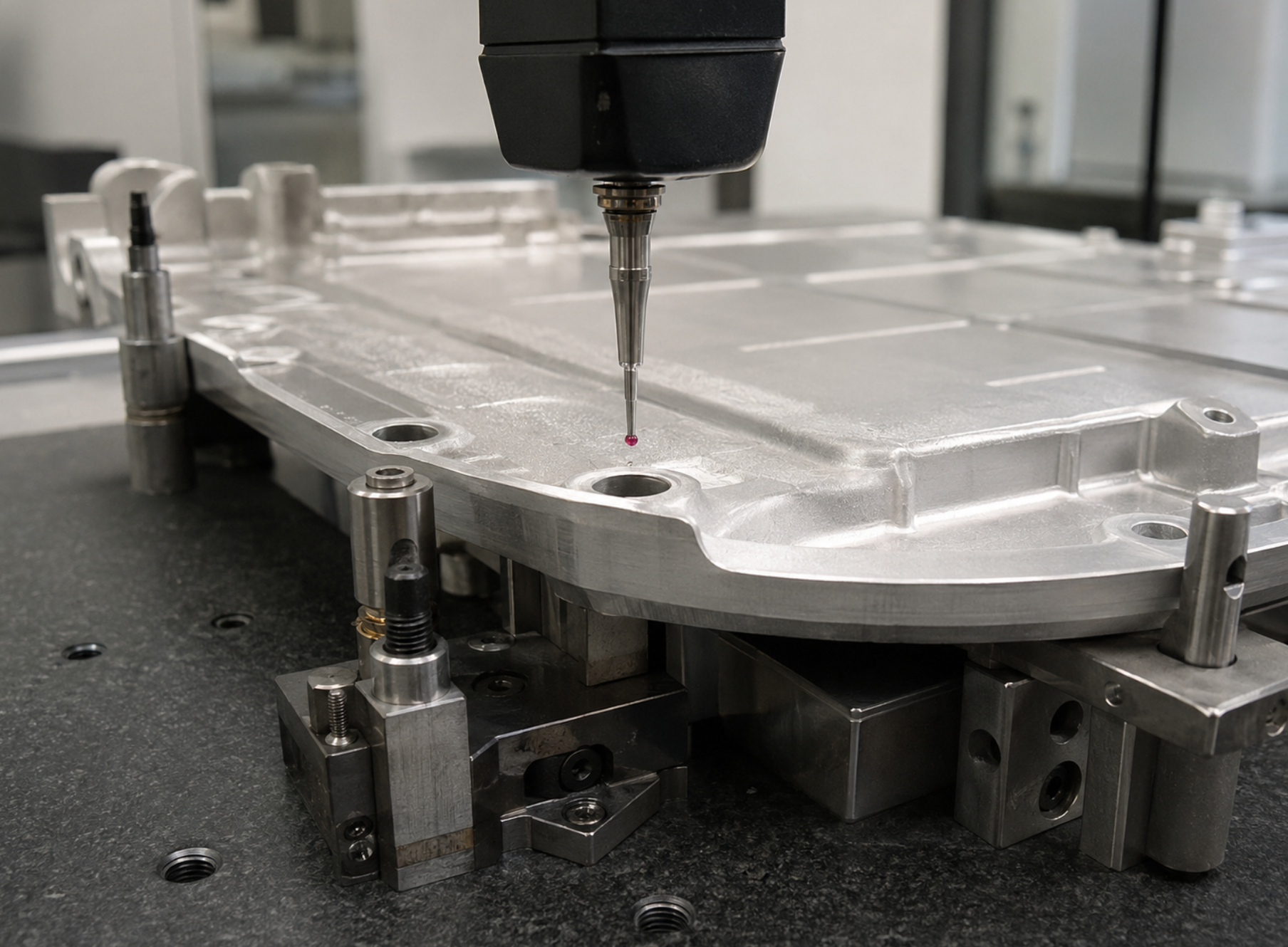

5. Fixture Support Is Critical For Large Battery Trays
EV battery trays are often large and may be affected by gravity, welding stress, machining stress or uneven support. If the part is not supported correctly, the measurement result may reflect fixture-induced deformation instead of the true part condition. This is why fixture design must be considered before final CMM selection.
A good fixture should support the tray according to the drawing datum, avoid over-clamping, leave enough access for the probe, and allow operators to load the part repeatably. For batch inspection, a dedicated fixture can improve measurement speed and consistency.
Fixture Checklist For EV Battery Tray
Does the fixture match the drawing datum structure?
Can the battery tray be supported without sagging or distortion?
Can the probe reach mounting holes, sealing surfaces and side features?
Is the loading method safe for large or heavy parts?
Can operators place the part in the same position every time?
Is the fixture suitable for first article inspection or batch inspection?
6. GD&T Reports For Supplier Quality Control
EV component drawings often include GD&T requirements such as position, flatness, profile, parallelism, perpendicularity and datum-based tolerance control. A suitable CMM software package should evaluate these requirements clearly and generate professional inspection reports for internal quality review, customer approval and supplier audits.
The report should include nominal values, measured values, deviation, tolerance, pass/fail result, datum reference, part ID, drawing number, operator, inspection date and program version when needed. For batch production, SPC data output can help monitor process drift and identify quality trends before defects become serious.
| Report Function | Value For EV Component Suppliers |
|---|---|
| CAD Import | Supports comparison between actual part and CAD model |
| GD&T Evaluation | Verifies position, flatness, profile and datum relationships |
| Automatic Inspection Report | Reduces manual reporting time and improves traceability |
| SPC Output | Helps monitor batch production stability |
| Pass / Fail Judgment | Supports faster approval and quality decision-making |
7. What Buyers Should Provide Before Requesting A Quote
To recommend the right CMM for EV battery tray and new energy vehicle component inspection, the supplier needs complete part and project information. A simple request for machine price is not enough because part size, fixture support, probe access and report requirements can change the final configuration.
Quotation Information Checklist
EV battery tray or component drawings and CAD files
Maximum part length, width, height and weight
Part material, process type, welding condition or machining condition
Critical dimensions and tolerance requirements
GD&T items and datum references
Measured features: mounting holes, flatness, sealing surfaces, profiles, cooling interfaces and side features
Inspection purpose: first article, batch inspection, final inspection or customer approval
Required probe type, fixture type, software report and SPC output
Installation environment, calibration needs and service expectations
8. Common Mistakes To Avoid
Choosing a CMM only by price without checking EV part size and tolerance requirements.
Selecting measuring range without considering fixture height, probe clearance and loading method.
Ignoring battery tray deformation caused by poor support or over-clamping.
Using basic dimension checks when GD&T reports are required by customers.
Not checking whether the probe can reach long frame features, side holes and sealing surfaces.
Comparing quotations without confirming probe, software, fixture, calibration and service details.
Requesting a quote without drawings, CAD files, tolerance data or inspection purpose.
Skipping real part testing before final CMM acceptance.
Conclusion
EV battery trays and new energy vehicle components require careful dimensional inspection because part size, flatness, mounting accuracy, sealing performance and datum relationships can directly affect battery pack assembly and vehicle reliability. A suitable CMM solution should combine the right measuring range, stable machine structure, proper probe configuration, repeatable fixture support, GD&T software, calibration support and reporting workflow. By providing drawings, CAD files, tolerance data, measured features and production requirements before quotation, buyers can receive a more accurate CMM recommendation for EV component inspection.
