What Information Should Buyers Provide Before Requesting A CMM Quote?

Requesting a quote for a coordinate measuring machine requires more than asking for a machine price. A CMM must be selected according to real part size, tolerance requirements, measured features, probe access, software needs, fixture design, inspection frequency, and installation environment. When buyers provide complete application information, suppliers can recommend a more suitable CMM configuration, avoid unnecessary cost, and reduce the risk of choosing the wrong machine. This guide explains what information buyers should prepare before requesting a CMM quote.

Quick Answer

Before requesting a CMM quote, buyers should provide part drawings, CAD files, maximum part size and weight, tolerance requirements, key measured features, material type, inspection purpose, production volume, required accuracy, probe and fixture needs, software reporting requirements, installation environment, and service expectations. The more complete the information, the more accurate and practical the CMM quotation will be.

1. Part Drawings And CAD Files

Part drawings and CAD files are the most important information for a CMM quotation. Drawings show the critical dimensions, tolerances, datum references, GD&T requirements, and inspection standards. CAD files help the technical team understand the 3D geometry, probe access, fixture space, and software programming requirements.

If the buyer only provides a part photo or a short description, the supplier can only provide a rough quotation. This may lead to an oversized machine, an under-specified system, or missing probe and software functions. For precision machined parts, automotive housings, aerospace brackets, molds, castings, and complex components, drawings and CAD files are essential for a reliable recommendation.

If full drawings cannot be shared at the first stage, buyers can provide simplified drawings, sample photos, key dimensions, and tolerance information. This still helps the supplier make a more accurate initial evaluation.

2. Maximum Part Size, Weight And Measuring Range

The CMM measuring range should be selected according to the largest part that needs to be inspected. Buyers should provide maximum part length, width, height, and weight. The supplier also needs to know whether the part will be placed directly on the granite table or held by a fixture.

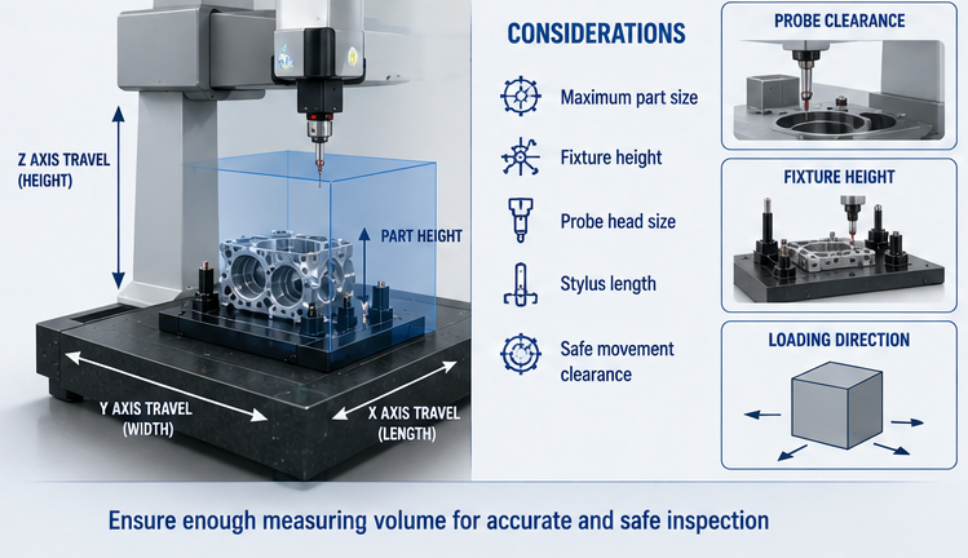

A common mistake is comparing part size directly with machine travel. In real inspection, buyers must also consider fixture height, clamping space, probe head movement, stylus length, loading direction, and safe clearance. A CMM that barely fits the part on paper may be difficult to use in daily inspection.

3. Tolerance Requirements And Required Accuracy

Accuracy is one of the key factors that affects CMM selection and quotation. Buyers should provide the smallest tolerance that needs to be verified, the most critical dimensions, and any required inspection standard. A machine for general dimensional inspection may not need the same accuracy level as a machine used for aerospace, high-precision machining, or strict GD&T inspection.

Buyers should avoid simply asking for the highest accuracy. Higher accuracy usually means a higher machine cost, stricter installation environment, and more careful calibration requirements. The best solution is to match the machine accuracy with the real part tolerance and inspection confidence needed.

4. Measured Features And Inspection Purpose

Different parts require different CMM configurations. Buyers should clearly explain which features need to be measured, such as holes, bores, planes, slots, grooves, edges, curved surfaces, profiles, deep features, datum surfaces, or assembly interfaces. The measured features directly affect probe selection, stylus configuration, fixture design, software functions, and measurement program planning.

Buyers should also explain the inspection purpose. A CMM used for incoming inspection may have different requirements from a CMM used for first article inspection, production process control, final inspection, reverse engineering, or automated quality control.

5. Probe, Fixture And Software Requirements

A CMM quotation should not include only the machine body. The probe system, fixture, and measurement software are often the difference between a machine that can measure the part and a machine that cannot complete the real inspection task efficiently.

Buyers should explain whether they need touch trigger measurement, scanning measurement, special styli, automatic probe changing, modular fixtures, dedicated fixtures, CAD import, GD&T analysis, SPC output, or custom report templates. These requirements can significantly affect the final quotation.

6. Production Volume And Inspection Workflow

The number of parts to be inspected also affects CMM configuration. If the machine is used occasionally for sample inspection, the buyer may prioritize flexibility. If the machine is used for daily batch production, the buyer may need faster programs, repeatable fixtures, automatic reports, barcode identification, or data output for process control.

Buyers should provide inspection frequency, batch quantity, cycle time expectations, operator arrangement, and whether the CMM will be used in a metrology lab or near the production line. This helps the supplier recommend a solution that fits the real workflow.

7. Installation Environment And Site Conditions

CMM accuracy depends heavily on the working environment. Buyers should provide installation site information, including room type, temperature stability, vibration sources, dust, humidity, air supply, power supply, floor condition, and available space. A machine installed in a controlled metrology room may require a different configuration from one installed near production.

8. Service, Calibration And Future Expansion Needs

Buyers should also clarify service expectations before requesting a quote. This includes installation, commissioning, calibration, acceptance testing, operator training, software training, warranty, remote support, spare parts, and maintenance service. These items affect both project cost and long-term equipment reliability.

Future expansion should also be considered. If the buyer may need scanning probes, automation, additional software modules, larger part families, or production data integration later, the supplier can recommend a more expandable platform from the beginning.

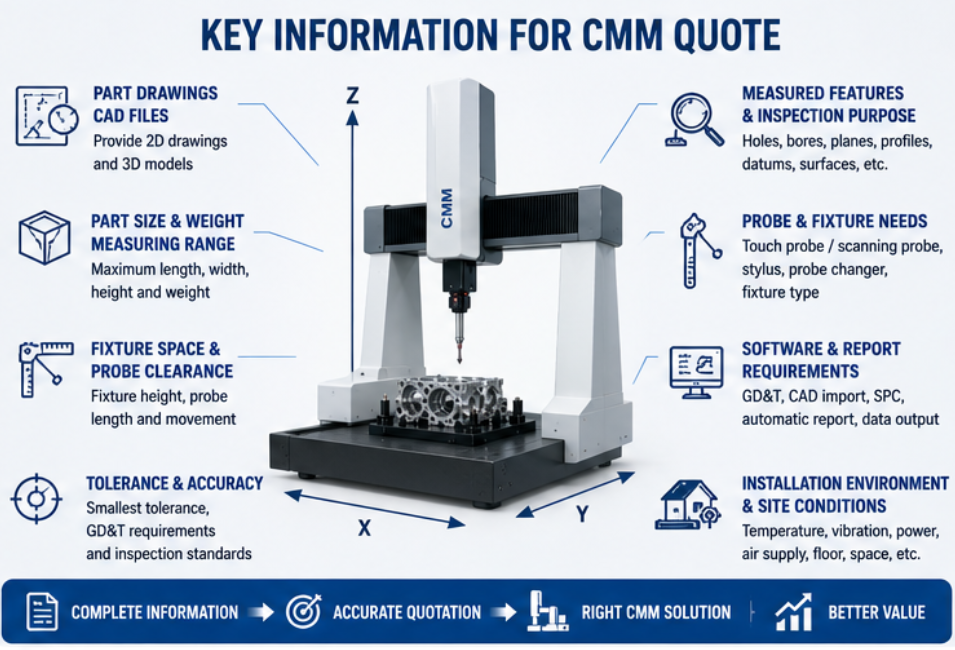

9. Final Checklist Before Requesting A CMM Quote

• Part drawings and CAD files

• Maximum part size, weight, and material

• Critical dimensions and tolerance requirements

• GD&T symbols, datum references, and inspection standards

• Main measured features and inspection purpose

• Required measuring range and fixture space

• Probe system, stylus, scanning, and fixture needs

• Software functions, report format, and data output requirements

• Inspection frequency and production volume

• Installation environment and site layout

• Calibration, training, warranty, and after-sales expectations

• Future automation or expansion plans

Preparing this information before requesting a quote helps the supplier recommend the right CMM solution faster and makes the quotation more accurate, practical, and cost-effective.

Conclusion

A coordinate measuring machine quote should be based on real inspection requirements, not only a machine model. Buyers should provide drawings, CAD files, part size, weight, tolerance requirements, measured features, probe needs, fixture requirements, software expectations, production volume, installation conditions, and service needs. With complete information, the supplier can recommend a CMM configuration that fits the application, controls cost, improves measurement reliability, and supports long-term quality management.
