Coordinate Measuring Machine For Transmission Housing And Gearbox Parts Inspection

Transmission housings and gearbox parts require accurate dimensional inspection because they directly affect shaft alignment, bearing fit, gear meshing, sealing performance, vibration control, and assembly reliability. These components often include multiple bearing bores, shaft center distances, mounting holes, sealing faces, datum planes, oil passage interfaces, machined surfaces, and complex GD&T requirements. A coordinate measuring machine helps manufacturers inspect transmission housings and gearbox components more accurately, generate traceable reports, and reduce assembly problems before batch production or shipment.

Quick Answer

For transmission housing and gearbox parts inspection, buyers should choose a coordinate measuring machine based on housing size, bore accuracy, shaft center distance, coaxiality, flatness, sealing face tolerance, mounting hole position, datum structure, fixture repeatability, probe access, GD&T software, and inspection report requirements. The CMM should support accurate bore measurement, datum-based alignment, automatic reports, and repeatable inspection for both first article and batch production.

1. Why Transmission Housing And Gearbox Parts Need CMM Inspection

Transmission housings and gearbox parts are usually functional assembly components. Their dimensional accuracy affects how gears, shafts, bearings, covers, seals, and mounting interfaces work together. If the bore position, shaft center distance, flatness, or datum relationship is not controlled, the final assembly may have noise, vibration, leakage, abnormal wear, or short service life.

Many gearbox components cannot be fully inspected with only calipers, height gauges, or simple manual tools. The critical dimensions are often related to three-dimensional feature relationships. A coordinate measuring machine can inspect bores, planes, holes, profiles, and GD&T items according to the drawing datum structure.

For automotive gearbox suppliers, industrial reducer manufacturers, electric drive system producers, CNC machining factories, and aluminum die casting suppliers, CMM inspection is useful for first article inspection, process validation, batch quality control, final inspection, and customer approval.

2. Typical Parts Measured By CMM

Transmission and gearbox assemblies contain different part types. Each part may require different measuring range, probe access, fixture method, and software functions.

3. Key Features To Inspect On Transmission Housings

Transmission housings usually have multiple functional features that must work together. The inspection plan should focus on assembly-related features instead of only checking simple outside dimensions.

4. Why Bore Alignment And Shaft Center Distance Are Critical

In transmission and gearbox assemblies, gears and shafts must operate with accurate center distance and alignment. If the bore axis position is incorrect, the gear mesh may become unstable. This can lead to noise, vibration, heat, abnormal wear, or premature failure.

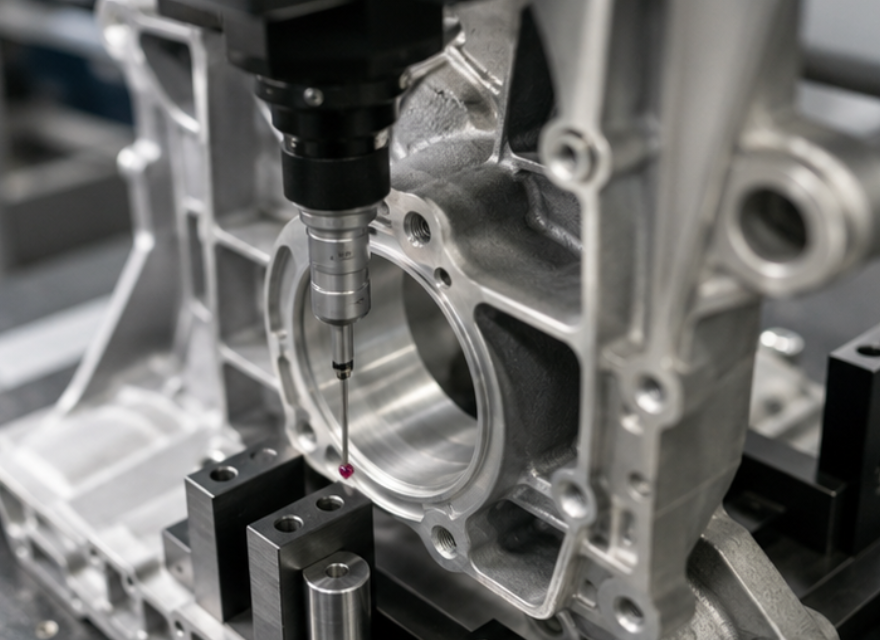

A CMM can measure multiple bore axes in relation to the drawing datums. It can check whether the bore diameter, bore form, bore position, coaxiality, parallelism, and center distance meet the drawing requirement. This is especially important for high-precision gearbox housings, EV drive housings, reducer bodies, and automotive transmission parts.

5. Recommended CMM Configuration For Gearbox Inspection

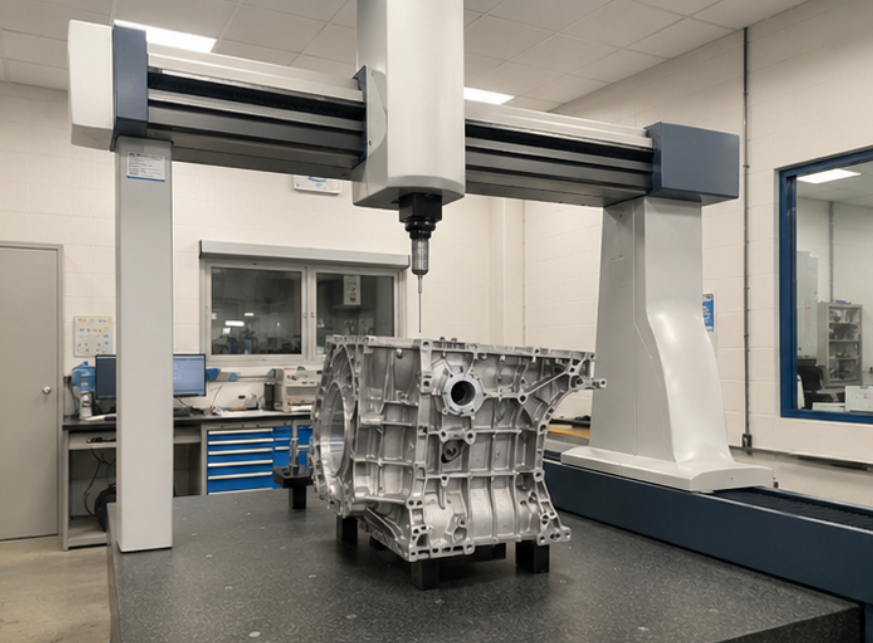

The suitable CMM configuration depends on housing size, bore depth, tolerance level, fixture height, software reporting needs, and inspection frequency. For many transmission housings and gearbox parts, a bridge CMM is a practical solution because it offers stable 3D dimensional inspection in a quality lab environment.

6. Fixture Design For Transmission Housing Inspection

Fixture design is important because transmission housings may be large, heavy, irregular, or thin-walled. If the housing is not supported correctly, it may move, tilt, or deform during measurement. The fixture should locate the part according to the drawing datum and allow the probe to access bearing bores, sealing faces, side holes, and mounting surfaces.

For batch production inspection, a dedicated fixture can reduce loading time and improve repeatability. For first article inspection or low-volume projects, modular fixturing may be enough if the datum structure can be controlled.

7. What Should Be Included In The CMM Report?

Transmission housing and gearbox inspection reports should clearly show whether critical assembly features meet drawing requirements. A useful CMM report should include nominal values, measured values, deviation, tolerance, pass/fail result, datum reference, part number, drawing revision, inspection date, and operator information.

8. What Buyers Should Provide Before Requesting A Quote

To recommend a suitable coordinate measuring machine for transmission housing and gearbox parts inspection, the supplier needs real application information. A simple request for “CMM price” may lead to an incomplete configuration.

9. Common Mistakes To Avoid

• Checking only bore diameter but ignoring shaft center distance and bore axis relationship.

• Ignoring datum setup and measuring features from the wrong reference.

• Choosing a CMM size without considering fixture height and probe clearance.

• Using a basic stylus package when deep bores require longer or special styli.

• Buying software that cannot support required GD&T reports.

• Skipping fixture design for large or irregular gearbox housings.

• Requesting quotation without drawings, CAD files or tolerance data.

• Comparing only machine price instead of the complete inspection solution.

Conclusion

Transmission housing and gearbox parts inspection requires accurate measurement of bearing bores, shaft center distance, coaxiality, sealing faces, mounting holes, datum planes and GD&T relationships. A suitable coordinate measuring machine should combine the right measuring range, stable accuracy, proper probe package, repeatable fixture support, GD&T software, automatic reporting, calibration certificate, installation guidance and after-sales service. By providing drawings, CAD files, tolerance data and inspection workflow before quotation, buyers can receive a more practical CMM solution for gearbox and transmission component quality control.

FAQ

Need A CMM For Transmission Housing Or Gearbox Parts Inspection?

Send us your transmission housing drawings, CAD files, bore tolerance requirements, shaft center distance details and inspection workflow. We can help evaluate a suitable CMM configuration for your gearbox quality control project.
