China Bridge CMM Manufacturer For Automotive And CNC Parts Suppliers

Automotive and CNC parts suppliers need reliable dimensional inspection equipment to control product accuracy, reduce rework, support customer approval, and improve production quality. A bridge coordinate measuring machine is widely used for inspecting CNC machined parts, aluminum housings, automotive components, EV motor housings, transmission housings, gearbox parts, mold inserts, tooling plates, and precision industrial components. When choosing a China bridge CMM manufacturer, buyers should compare not only machine price, but also measuring range, accuracy, probe system, GD&T software, fixture support, calibration documents, export packaging, installation guidance, training, and after-sales service.

Quick Answer

A China bridge CMM manufacturer for automotive and CNC parts suppliers should provide a complete inspection solution, including suitable measuring range, machine accuracy, probe package, Renishaw probe option, GD&T software, CAD import, automatic report, fixture support, calibration certificate, export packaging, remote installation guidance, training, warranty, and service response. Buyers should send drawings, CAD files, tolerance requirements, part size, measured features, and destination country before requesting a quotation.

1. Why Automotive And CNC Parts Suppliers Need Bridge CMM Inspection

Automotive and CNC parts suppliers often produce components with strict dimensional requirements. These parts may include bores, bearing seats, mounting holes, sealing faces, datum planes, slots, flat surfaces, profiles, and complex GD&T features. If these features are not measured correctly, the final part may pass simple manual checks but still fail assembly or customer inspection.

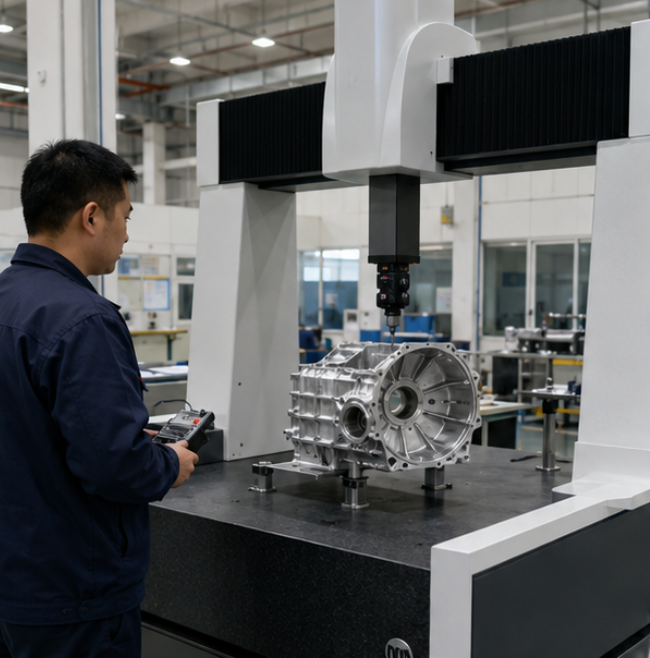

A bridge CMM helps suppliers verify the relationship between multiple features in three-dimensional space. It can support first article inspection, PPAP documentation, incoming inspection, process inspection, final inspection, pre-shipment inspection, and customer audit preparation.

For export-oriented suppliers, CMM inspection reports also help build trust with overseas customers. A clear report can show measured values, deviations, tolerances, pass/fail results, datum references, drawing number, inspection date, and operator information.

2. Typical Parts Measured By Bridge CMM

A professional China bridge CMM manufacturer should understand the buyer’s real parts before recommending a machine. Automotive and CNC parts suppliers may need different measuring ranges, probe packages, fixtures, and software functions depending on their product type.

3. How To Select The Right Bridge CMM Measuring Range

Measuring range is one of the most important factors when selecting a bridge CMM. Buyers should not only consider the length, width, and height of the largest part. Fixture height, clamp position, probe head size, stylus length, loading method, and future product expansion should also be considered.

For medium-size CNC machined parts, an 800x1000x600 bridge CMM may be suitable. For large aluminum housings, transmission housings, or long structural parts, a 1000x1500x800 or larger model may be more practical. The final choice should be based on real drawings and inspection workflow.

4. Probe Package And GD&T Software Should Be Compared Carefully

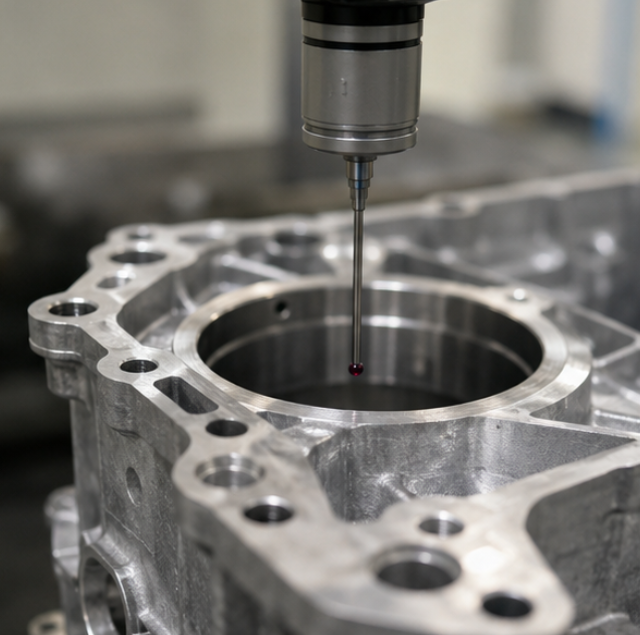

A bridge CMM quotation should clearly list the probe package. Buyers should confirm whether the machine includes a touch-trigger probe, motorized probe head, scanning option, stylus kit, extension bars, calibration sphere, probe changer, and spare accessories. A quotation that only says “with probe” is not detailed enough.

GD&T software is also important for automotive and CNC parts suppliers. It helps evaluate position, flatness, profile, runout, coaxiality, cylindricity, perpendicularity, parallelism, and datum-based tolerance requirements. If the software cannot generate clear reports, the CMM may not fully support customer approval or batch quality control.

5. Why Fixture Support Is Important For Automotive And CNC Parts

Many automotive and CNC machined parts cannot be measured reliably without proper fixture support. A fixture helps locate the part according to drawing datum, prevent movement during measurement, reduce operator variation, and improve repeatability in batch inspection.

Aluminum housings, thin-wall die castings, EV motor housings, gearbox parts, and precision brackets may deform if clamped incorrectly. The fixture should support the part without over-clamping and still allow the probe to reach all critical features.

6. Export Support From A China Bridge CMM Manufacturer

For overseas buyers, export support is an important part of supplier evaluation. A bridge CMM is precision equipment, so the machine body, granite table, controller, computer, probe package, accessories, calibration tools, and documents must be packed carefully for long-distance transportation.

Buyers should confirm export-grade packaging, moisture protection, shock protection, packing photos, shipping dimensions, gross weight, calibration certificate, user manual, installation guide, warranty document, and trade terms before placing an order.

7. What Buyers Should Provide Before Requesting A Quote

To recommend a suitable bridge CMM for automotive and CNC parts suppliers, the manufacturer needs detailed application information. A general request for “China bridge CMM price” may lead to a basic quotation that does not match real inspection needs.

8. Common Mistakes To Avoid

• Choosing a China bridge CMM manufacturer only by the lowest price.

• Requesting quotation without sending real drawings and CAD files.

• Ignoring probe package, stylus kit, calibration sphere, and software modules.

• Selecting measuring range without considering fixture height and probe clearance.

• Buying basic software when GD&T reports are required by automotive customers.

• Forgetting fixture repeatability for batch CNC parts inspection.

• Not confirming export packaging, calibration certificate, installation guidance, and training.

• Comparing machine bodies instead of complete inspection solutions.

Conclusion

A China bridge CMM manufacturer for automotive and CNC parts suppliers should provide more than a standard machine quotation. Buyers should evaluate measuring range, accuracy, probe package, GD&T software, CAD import, automatic report, fixture support, calibration certificate, export packaging, installation guidance, training, warranty, and after-sales response. By providing drawings, CAD files, tolerance requirements, measured features, and inspection workflow before quotation, buyers can receive a more practical bridge CMM solution for long-term quality control.

FAQ

Need A China Bridge CMM Manufacturer For Your Inspection Project?

Send us your automotive or CNC part drawings, CAD files, tolerance requirements, measured features, and destination country. We can help evaluate a suitable bridge CMM configuration for your quality control project.
