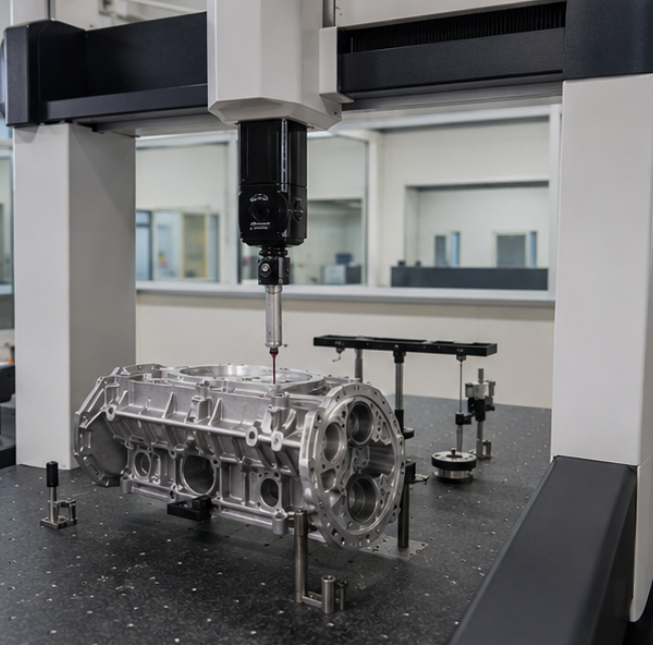

A CMM machine with Renishaw probe and GD&T software is suitable for industrial buyers who need reliable dimensional inspection, accurate feature measurement, and clear quality reports. For CNC machined parts, automotive components, aluminum die castings, EV motor housings, mold inserts, tooling parts, gearbox housings, and precision assemblies, the machine body alone is not enough. Buyers should also confirm the probe package, stylus accessories, software functions, GD&T reporting, CAD import, fixture support, calibration documents, installation guidance, and after-sales service before placing an order.
Quick Answer
When buying a CMM machine with Renishaw probe and GD&T software, buyers should confirm the machine measuring range, accuracy level, probe head, probe body, touch-trigger or scanning requirement, stylus kit, calibration sphere, CAD import function, GD&T evaluation, automatic report format, fixture method, calibration certificate, installation support, training, and service response. A complete quotation should explain the full inspection solution, not only the machine price.
1. Why Renishaw Probe And GD&T Software Matter
Industrial inspection is not only about moving a CMM probe to touch a part. The real inspection value comes from whether the complete system can measure the required features, follow the drawing datum structure, evaluate GD&T requirements, and generate reports that engineers and customers can trust.
A Renishaw probe package is commonly selected for CMM inspection because buyers often need stable probing, different stylus options, feature access, and compatibility with industrial measurement workflows. GD&T software is also important when drawings include position, flatness, profile, runout, coaxiality, perpendicularity, parallelism, cylindricity, or datum-based tolerance control.
For factories serving automotive, EV, aerospace, CNC machining, mold, die casting, and export customers, the probe package and software functions should be confirmed before purchase, not after delivery.

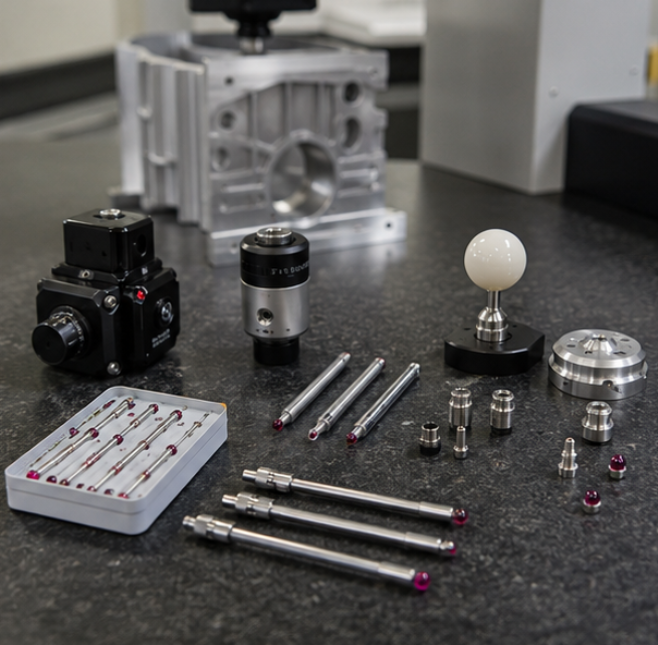

2. What Should Be Included In The Renishaw Probe Package?
Many quotations only say “with Renishaw probe”, but this is not detailed enough for serious industrial purchasing. Buyers should ask the supplier to list each probe-related item clearly.
| Probe Package Item | What Buyers Should Confirm | Why It Matters |
|---|---|---|
| Probe Head | Fixed, manual, or motorized probe head | Affects feature access and inspection efficiency |
| Probe Body | Exact model, quantity, and compatibility | Determines basic measurement capability |
| Stylus Kit | Ball sizes, stylus lengths, material, and spare styli | Controls access to holes, bores, slots, and small features |
| Extension Bars | Required length and compatibility | Needed for deep bores, tall parts, and hidden features |
| Calibration Sphere | Sphere size, base, and qualification accessories | Required for probe qualification and reliable measurement |
| Scanning Option | Included, optional, or not required | Useful for profiles, surfaces, and form measurement |
3. Touch-Trigger Probe Or Scanning Probe?
Buyers should confirm whether the inspection task needs touch-trigger probing, scanning probing, or both. Touch-trigger probes are usually used for discrete point measurement, such as holes, planes, edges, bores, slots, and standard geometric features. Scanning probes are more suitable when the factory needs dense surface data, form measurement, profile inspection, or CAD comparison.
A basic CNC machined bracket may only need touch-trigger measurement. A mold insert, aerospace surface, large aluminum housing, EV motor housing, or complex die casting part may require scanning capability depending on the drawing and reporting requirements.
| Probe Type | Suitable Features | Buyer Check Point |
|---|---|---|
| Touch-Trigger Probe | Holes, planes, edges, slots, bores, standard geometry | Good for many common industrial inspection tasks |
| Scanning Probe | Profiles, curved surfaces, form features, dense surface data | Check software support and scanning data processing |
| Combined Package | Factories inspecting both standard geometry and complex surfaces | Higher capability but needs clearer configuration and training |

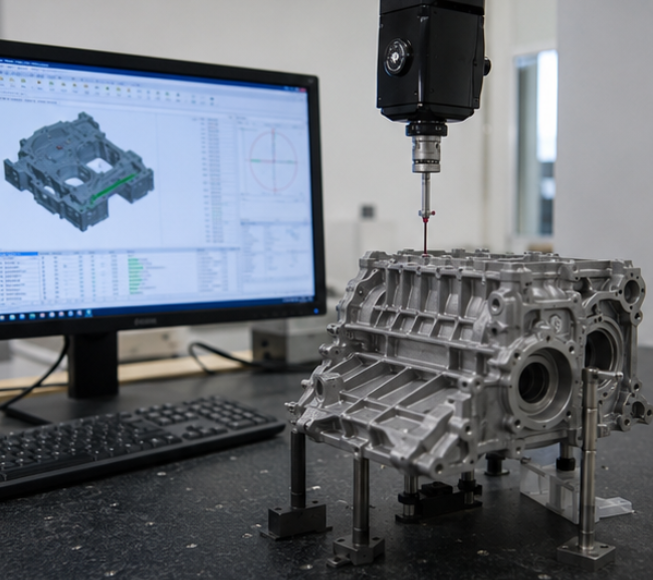

4. Why GD&T Software Is Critical For Industrial Inspection
GD&T software helps the CMM evaluate whether the part meets drawing requirements based on datum references and tolerance zones. This is important because many industrial parts may pass simple dimension checks but still fail functional assembly due to position error, flatness deviation, profile error, coaxiality problem, or datum relationship issues.
For overseas buyers and export manufacturers, GD&T reports also help reduce quality disputes. A clear report can show nominal value, measured value, deviation, tolerance, pass/fail result, datum reference, part number, drawing revision, inspection date, and operator information.
GD&T Functions Buyers Should Confirm
Position tolerance evaluation for hole patterns and mounting interfaces
Flatness and parallelism measurement for mounting planes and sealing faces
Profile evaluation for machined surfaces, cast profiles, and tooling parts
Coaxiality, cylindricity, and roundness for bores and bearing seats
Datum setup and alignment according to customer drawings
Automatic report generation for customer approval and internal quality records
SPC output for batch production quality control if required
5. Industrial Parts That Benefit From This Configuration
A CMM machine with Renishaw probe and GD&T software is especially useful when the factory needs accurate feature measurement, drawing-based reports, and repeatable inspection for customer approval or batch production control.
| Part Type | Inspection Focus | Why This Configuration Helps |
|---|---|---|
| CNC Machined Parts | Hole position, bores, planes, slots, datum surfaces | Supports accurate probing and GD&T reports |
| Automotive Components | Bore alignment, mounting holes, sealing faces, PPAP data | Improves traceability and customer approval efficiency |
| EV Motor Housings | Bearing bores, coaxiality, end face flatness, mounting interfaces | Helps verify assembly-related features |
| Mold Inserts And Tooling | Profiles, steps, slots, locating holes, cavity surfaces | Supports CAD comparison and profile measurement if configured |
| Aluminum Die Castings | Casting deformation, machined bores, sealing faces, datum planes | Checks both cast geometry and precision-machined features |
6. Recommended Configuration For Industrial Inspection
The final configuration should be selected according to the buyer’s part size, tolerance level, inspection purpose, report requirements, and production volume. A complete quotation should clearly explain machine body, probe package, software modules, fixture support, calibration, installation, and training.
Recommended Configuration Checklist
Machine Type: Bridge CMM or suitable CMM structure based on part size and inspection environment.
Measuring Range: Selected by maximum part size, fixture height, probe clearance, and future part plan.
Probe Package: Renishaw touch-trigger probe for standard features; scanning option if profile or surface data is required.
Stylus Kit: Different ball sizes, stylus lengths, extensions, angled styli, and spare styli for real part access.
Software: CAD import, GD&T evaluation, automatic reports, SPC output, and scanning data support if needed.
Fixture: Modular or custom fixture based on datum structure and repeatable loading needs.
Service: Calibration certificate, installation guidance, operator training, and after-sales technical response.
7. What Buyers Should Provide Before Requesting A Quote
To recommend the right CMM machine with Renishaw probe and GD&T software, the supplier needs real part and inspection information. A simple request for “CMM with Renishaw probe price” may lead to an incomplete configuration.
Quotation Information Checklist
Part drawings and CAD files
Maximum part length, width, height, and weight
Material, production process, and surface condition
Critical dimensions, tolerance requirements, and GD&T items
Measured features: holes, bores, planes, profiles, slots, side features, sealing faces, and datum planes
Inspection purpose: FAI, batch inspection, final inspection, export inspection, PPAP, or customer approval
Need for touch-trigger probing, scanning probing, or both
Required report format, SPC output, CAD comparison, and software language
Destination country, installation environment, calibration needs, and service expectations
8. Common Mistakes To Avoid
Accepting a quotation that only says “with Renishaw probe” without exact package details.
Ignoring whether the probe head is fixed, manual, or motorized.
Forgetting stylus length, ball size, extensions, and calibration sphere.
Buying basic software when GD&T reports are required by customers.
Choosing touch-trigger probing when profile or surface scanning is required.
Not confirming CAD import, report format, SPC output, and software support.
Ignoring fixture repeatability and datum-based alignment.
Requesting quotation without drawings, CAD files, or tolerance requirements.
Conclusion
A CMM machine with Renishaw probe and GD&T software should be purchased as a complete inspection system. Buyers should confirm the measuring range, accuracy, probe head, probe body, stylus kit, scanning option, calibration sphere, software modules, GD&T report capability, fixture support, calibration certificate, training, and service response before placing an order. By providing drawings, CAD files, tolerance data, measured features, and inspection workflow before quotation, buyers can receive a more suitable CMM configuration for industrial inspection.
FAQ
1. Is a Renishaw probe always included in a CMM quotation?
Not always. Buyers should check the exact probe head, probe body, stylus kit, calibration sphere, accessories, and whether scanning options are included or optional.
2. Why is GD&T software important for industrial inspection?
GD&T software helps evaluate position, flatness, profile, coaxiality, runout, perpendicularity, parallelism, and datum-based tolerance requirements according to the drawing.
3. Do all parts need scanning probes?
No. Many holes, planes, and standard features can be measured with touch-trigger probing. Scanning may be needed for profiles, freeform surfaces, dense point data, or CAD comparison.
4. What should buyers send before requesting a quote?
Buyers should send part drawings, CAD files, part size, weight, tolerance requirements, measured features, inspection purpose, report needs, probe requirements, and destination country.
Need A CMM With Renishaw Probe And GD&T Software?
Send us your part drawings, CAD files, tolerance requirements, measured features, and inspection workflow. We can help evaluate a suitable CMM configuration with probe package and GD&T software for your industrial inspection project.
