Coordinate Measuring Machine For EV Motor Housing Inspection
2026-06-14 17:22Coordinate Measuring Machine For EV Motor Housing Inspection
EV motor housings are critical components in new energy vehicle drive systems. They usually include precision bores, bearing seats, mounting holes, end faces, sealing surfaces, cooling interfaces, datum planes, and complex aluminum structures. If the housing has dimensional deviation, it may affect motor assembly, shaft alignment, bearing fit, sealing performance, vibration control, and long-term reliability. A coordinate measuring machine helps manufacturers inspect EV motor housings accurately, verify GD&T requirements, reduce quality disputes, and provide traceable inspection reports for sample approval and batch production.
Quick Answer
For EV motor housing inspection, buyers should choose a CMM according to housing size, bore accuracy, coaxiality requirement, end face flatness, bearing seat tolerance, mounting hole position, datum structure, fixture repeatability, probe access, GD&T software, and inspection report requirements. A suitable CMM solution should help inspect key motor housing features accurately and support both first article approval and batch quality control.
1. Why EV Motor Housing Inspection Requires A CMM
EV motor housings are usually produced through aluminum die casting, CNC machining, drilling, boring, tapping, cleaning, and surface treatment. During these processes, dimensional changes may appear due to casting shrinkage, machining stress, clamping force, tool wear, fixture positioning, or temperature variation. These changes may not be obvious by visual inspection, but they can affect motor assembly and product performance.
A coordinate measuring machine can inspect the three-dimensional relationship between bores, bearing seats, mounting holes, end faces, and datum planes. This is difficult to verify with only calipers, height gauges, or simple manual fixtures. For EV motor housing suppliers, CMM inspection is useful for first article inspection, customer approval, PPAP documentation, machining process validation, and final quality control before shipment.
In new energy vehicle projects, stable measurement data is important because motor housing quality can directly affect assembly accuracy, vibration, noise, sealing, and long-term drive system reliability.
2. Key Features To Inspect On EV Motor Housings
EV motor housings often have multiple functional areas. Buyers should confirm which features are most critical before selecting the CMM machine, probe package, fixture method, and software functions.
| Inspection Feature | Why It Matters | CMM Inspection Focus |
|---|---|---|
| Bearing Seat Bore | Affects bearing fit, shaft support, and motor rotation stability | Bore diameter, roundness, cylindricity, and position |
| Coaxiality | Helps control shaft alignment and reduce vibration risk | Datum-based bore alignment and GD&T evaluation |
| End Face Flatness | Affects assembly contact and motor sealing structure | Plane measurement, flatness, parallelism, and datum relationship |
| Mounting Hole Position | Affects motor installation and assembly with vehicle structure | Hole diameter, position tolerance, and bolt pattern accuracy |
| Cooling Interface | Affects cooling system fit and heat transfer performance | Flatness, profile, hole position, and sealing face measurement |
| Datum Planes | Controls the measurement reference and functional assembly reference | Datum setup, fixture repeatability, and software alignment strategy |
3. Common EV Motor Housing Measurement Problems
Many quality problems in EV motor housings are not caused by one single dimension. They often come from the relationship between multiple features. For example, the bore diameter may be acceptable, but the bore axis may not align correctly with another functional datum. The end face may appear flat in a simple check, but the datum relationship may fail when inspected with a CMM.
| Problem | Possible Cause | How CMM Inspection Helps |
|---|---|---|
| Bearing assembly is unstable | Bore size deviation, poor roundness, or coaxiality issue | Checks bore diameter, form, and datum relationship |
| Motor has abnormal vibration | Misalignment between housing bore and mounting datum | Verifies alignment, position, and coaxiality |
| Sealing surface fails assembly test | Flatness deviation, machining error, or clamping deformation | Measures flatness, profile, and datum plane condition |
| Mounting holes do not align | Machining program error or fixture positioning issue | Checks hole position, pitch, and bolt pattern accuracy |
| Batch quality is unstable | Tool wear, fixture wear, temperature variation, or process drift | Provides inspection data for trend analysis and process correction |
4. Recommended CMM Configuration For EV Motor Housing Inspection
EV motor housings may have medium-to-large size, complex geometry, deep bores, side holes, multiple datum surfaces, and strict GD&T requirements. The CMM configuration should be selected according to the largest housing size, fixture height, probe reach, inspection frequency, and reporting requirements.
Recommended Configuration

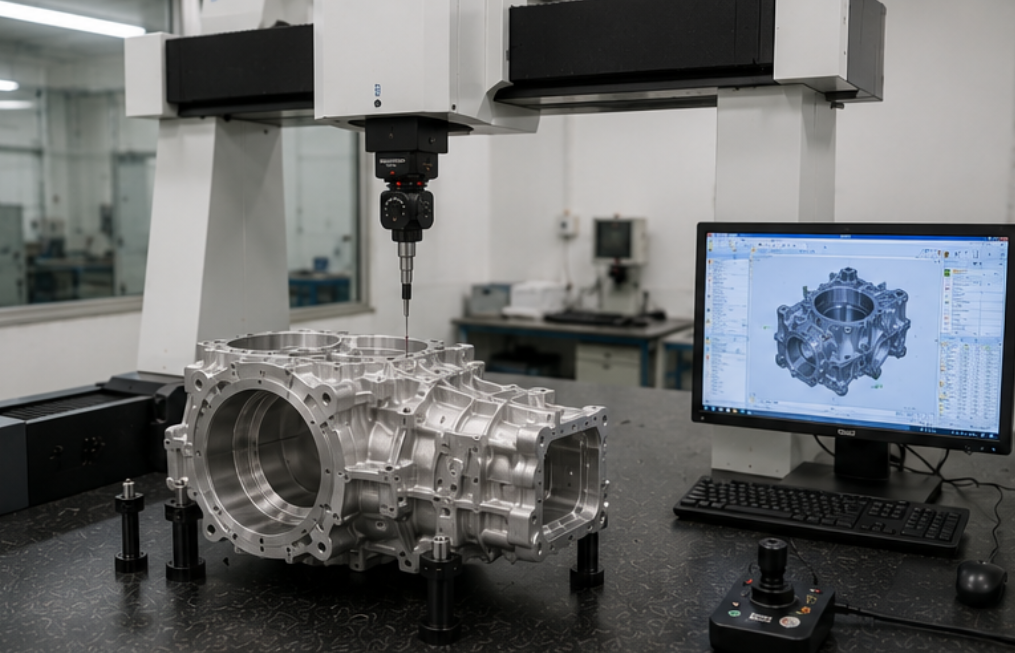

Machine Type: Bridge CMM for stable 3D dimensional inspection of EV motor housings.
Measuring Range: Selected by housing size, fixture height, probe clearance, and future part families.

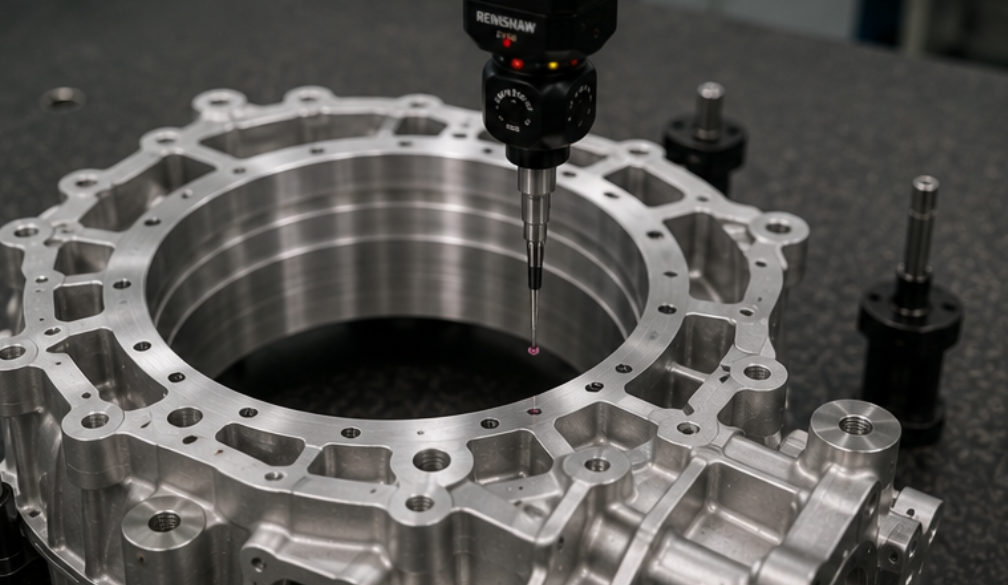

Probe System: Touch-trigger probe for bores, holes, planes, and standard geometry; scanning probe if profile or surface data is required.

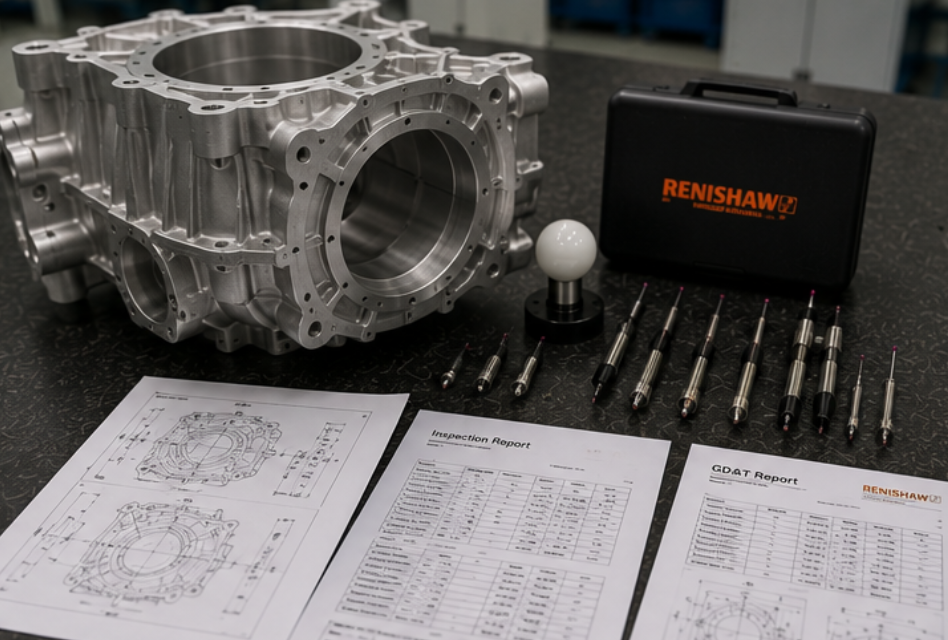

Stylus Package: Suitable stylus length, ball size, extension bars, and angled styli for deep bores or side features.
Fixture: Custom or modular fixture designed around datum structure and controlled clamping.

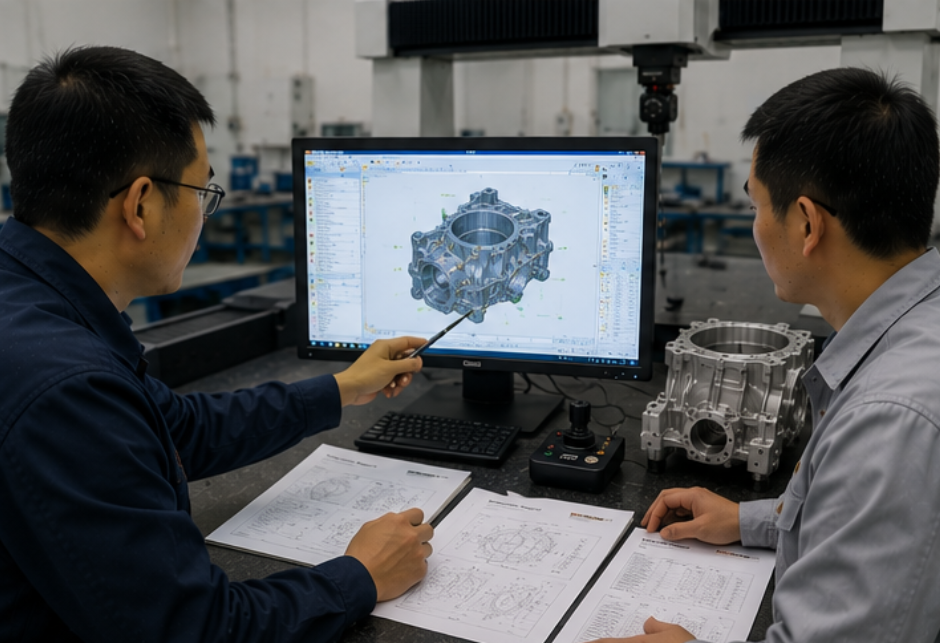

Software: CAD import, GD&T evaluation, automatic inspection report, and SPC output for batch quality control.
Service: Calibration, installation guidance, training, and after-sales support.
5. Fixture Design Must Protect Measurement Repeatability
Fixture design is especially important for EV motor housing inspection. Many housings are aluminum die-cast structures with machined datums, ribs, thin-wall areas, and circular bore features. If the fixture does not support the housing correctly, the part may tilt, move, or deform during measurement.
The fixture should follow the drawing datum structure, hold the housing repeatably, avoid over-clamping, and leave enough space for the probe to reach bores, mounting holes, cooling interfaces, and sealing faces. For batch production, a dedicated fixture can reduce loading time and improve inspection consistency across operators.
Fixture Checklist For EV Motor Housing
Does the fixture follow the housing datum structure?
Can the housing be loaded repeatedly in the same position?
Does the fixture avoid deformation or over-clamping?
Can the probe access bearing bores, mounting holes, end faces, and side features?
Is the fixture suitable for sample inspection or batch production?
Can the fixture support similar future EV motor housing models?
6. GD&T Reports For EV Motor Housing Approval
EV motor housing drawings often include GD&T requirements such as position, flatness, circularity, cylindricity, coaxiality, perpendicularity, parallelism, profile, and datum-based tolerance control. The CMM software should support clear evaluation of these requirements and generate reports that can be used for customer approval, supplier quality review, and internal process improvement.
A professional inspection report should include nominal values, measured values, deviations, tolerances, pass/fail results, datum references, part ID, drawing number, operator, inspection date, and program version. For batch production, SPC output can help monitor dimensional trends and detect process drift early.
| Report Function | Value For EV Motor Housing Suppliers |
|---|---|
| Bore Measurement Report | Supports bearing seat approval and assembly verification |
| GD&T Evaluation | Verifies position, flatness, coaxiality, profile, and datum relationships |
| Automatic Inspection Report | Reduces manual reporting time and improves traceability |
| CAD Comparison | Helps compare actual housing geometry with 3D model |
| SPC Output | Supports batch quality monitoring and process stability control |
7. What Buyers Should Provide Before Requesting A Quote
To recommend the right coordinate measuring machine for EV motor housing inspection, the supplier needs complete application information. A simple request for machine price is not enough because housing size, bore tolerance, fixture support, probe access, and reporting requirements can change the final configuration.
Quotation Information Checklist
EV motor housing drawings and CAD files
Maximum housing length, width, height, and weight
Material, casting process, machining process, and surface condition
Critical dimensions, bore tolerances, and bearing seat requirements
GD&T items such as position, flatness, coaxiality, cylindricity, and datum references
Measured features: bores, end faces, mounting holes, cooling interfaces, profiles, and side features
Inspection purpose: sample approval, FAI, PPAP, batch inspection, or final inspection
Required probe type, stylus package, fixture type, report format, and SPC output
Installation environment, calibration needs, training, and after-sales expectations
8. Common Mistakes To Avoid
Choosing a CMM only by price without checking EV motor housing tolerance requirements.
Selecting measuring range without considering fixture height and probe clearance.
Ignoring bore coaxiality, cylindricity, and datum relationship requirements.
Using a basic probe package when deep bores or side features require special styli.
Forgetting fixture repeatability and aluminum housing deformation risk.
Buying software that cannot support required GD&T reports.
Requesting a quotation without drawings, CAD files, tolerance data, or inspection purpose.
Skipping real part testing before final CMM acceptance.
Conclusion
EV motor housing inspection requires accurate measurement of bores, bearing seats, end faces, mounting holes, sealing surfaces, cooling interfaces, datum planes, and GD&T relationships. A suitable coordinate measuring machine should combine the right measuring range, stable accuracy, proper probe package, repeatable fixture design, GD&T software, calibration support, and reporting workflow. By providing drawings, CAD files, tolerance requirements, measured features, and production needs before quotation, buyers can receive a more suitable CMM recommendation for EV motor housing inspection.
