CMM Machine For Aluminum Die Casting Factory Quality Control
2026-06-13 17:17CMM Machine For Aluminum Die Casting Factory Quality Control

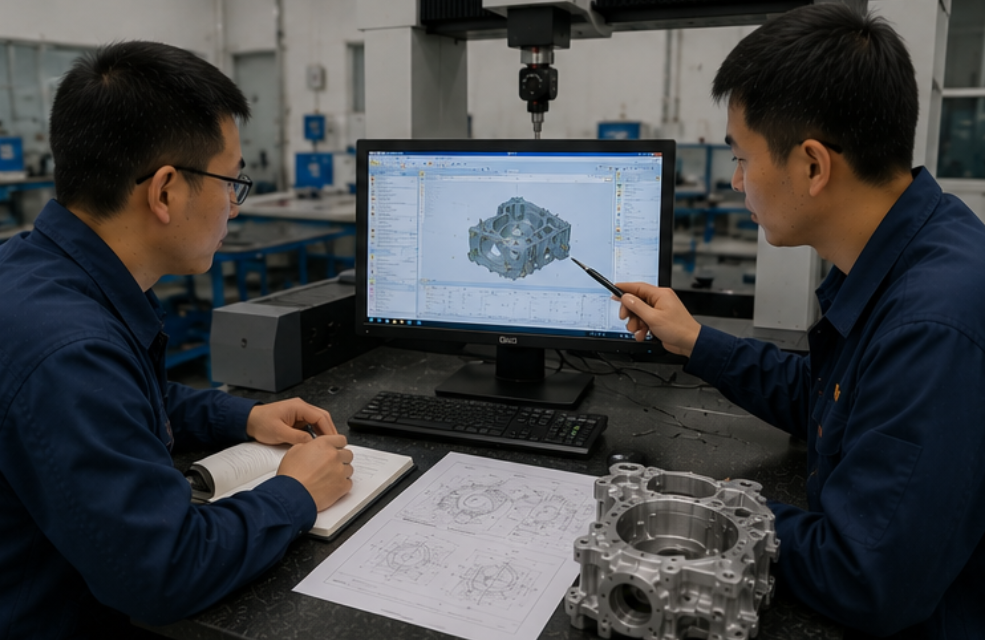

Aluminum die casting factories need reliable dimensional inspection to control casting variation, machining accuracy, assembly fit, and customer quality requirements. Parts such as automotive housings, motor housings, pump bodies, gearbox components, electronic enclosures, EV components, and industrial aluminum castings often include complex surfaces, thin walls, bores, mounting holes, sealing faces, datum planes, and GD&T requirements. A CMM machine can help die casting factories build a more stable quality control workflow from sample approval to batch production and final shipment.
Quick Answer
For aluminum die casting factory quality control, a CMM machine should be selected according to part size, casting deformation risk, machining tolerance, datum structure, hole position requirements, sealing face flatness, fixture support, probe access, GD&T reporting, and batch inspection volume. The right CMM solution helps factories reduce customer complaints, improve first article approval, monitor production stability, and provide traceable inspection reports before shipment.
1. Why Aluminum Die Casting Factories Need CMM Quality Control
Aluminum die casting parts may look stable after molding, trimming, machining, and surface finishing, but dimensional variation can still appear during real production. Shrinkage, thermal deformation, machining allowance, clamping stress, tool wear, burr removal, and fixture positioning can all affect final dimensions.
For factories supplying automotive, EV, motor, pump, electronics, and machinery customers, small dimensional problems can lead to assembly failure, sealing leakage, unstable mounting, customer rejection, or repeated rework. A CMM machine allows quality teams to inspect critical features more accurately than simple manual gauges.
More importantly, CMM inspection helps factories move from “checking finished parts” to “controlling the production process”. By comparing inspection results over time, factories can identify process drift before defects become large batches of rejected products.
2. Where CMM Inspection Fits In The Die Casting Quality Workflow
A CMM machine should not only be used at final inspection. For aluminum die casting factories, it can support multiple quality control stages, including sample development, first article inspection, machining validation, batch process monitoring, customer approval, and pre-shipment inspection.
| Quality Stage | CMM Inspection Purpose | Factory Benefit |
|---|---|---|
| Sample Development | Check casting deviation, machining allowance, and key datum surfaces | Helps adjust mold, machining program, and fixture design early |
| First Article Inspection | Verify drawing dimensions, GD&T, hole positions, and functional features | Supports customer approval and production release |
| Machining Process Control | Monitor bores, planes, sealing faces, and mounting features after machining | Reduces machining drift and repeated rework |
| Batch Production Inspection | Track dimensional stability across production batches | Improves process consistency and quality records |
| Pre-Shipment Inspection | Confirm final parts meet customer requirements before delivery | Reduces customer complaints and return risk |
3. Critical Features Aluminum Die Casting Factories Should Measure
Aluminum die casting parts usually include both cast surfaces and machined features. Cast surfaces may require profile or deformation checks, while machined features often require tighter dimensional control. The inspection plan should focus on features that affect assembly, sealing, positioning, and customer approval.
| Feature | Why It Matters | CMM Inspection Focus |
|---|---|---|
| Mounting Holes | Affects assembly fit and bolt alignment | Position tolerance, hole diameter, datum relationship |
| Bores And Cylinders | Important for bearings, shafts, rotating parts, and sealing structures | Diameter, roundness, coaxiality, alignment |
| Sealing Faces | Affects leakage control and assembly pressure | Flatness, profile, surface deviation, datum alignment |
| Datum Planes | Controls the measurement reference and assembly reference | Datum setup, repeatability, fixture support |
| Cast Profiles | Checks deformation, shrinkage, and mold-related deviation | Profile measurement and CAD comparison if needed |
4. Recommended CMM Configuration For Die Casting Factory QC
A suitable CMM configuration depends on the factory’s product size, tolerance range, inspection frequency, and customer requirements. Most aluminum die casting factories use a bridge CMM for stable 3D inspection of medium-size parts. Larger components, such as EV battery tray parts or large industrial housings, may require a larger measuring range or special fixture strategy.
Recommended Configuration

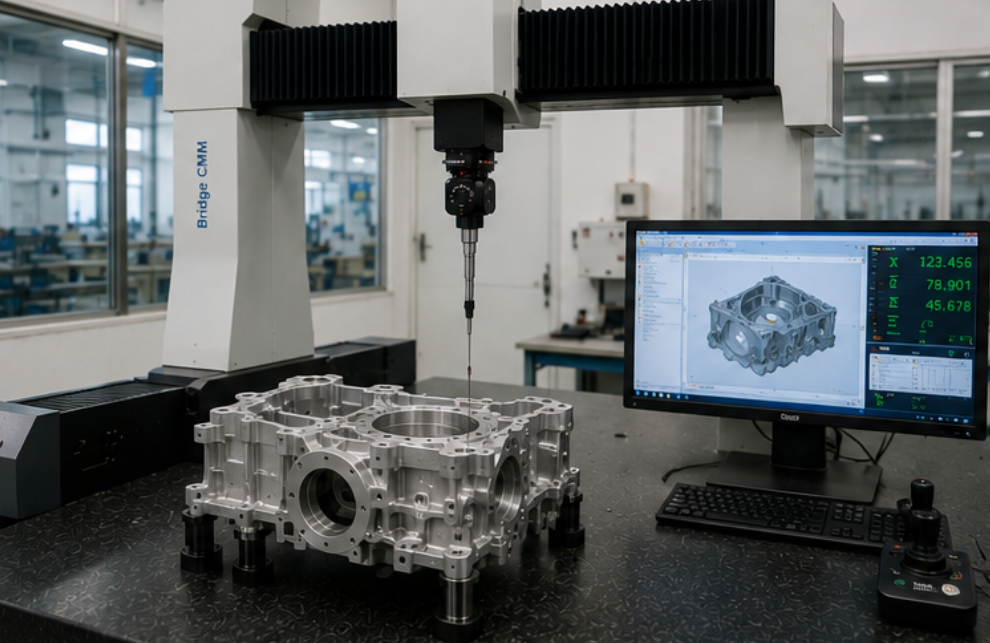

Machine Type: Bridge CMM for stable dimensional inspection in a quality lab.
Measuring Range: Selected by maximum part size, fixture height, probe clearance, and future part families.

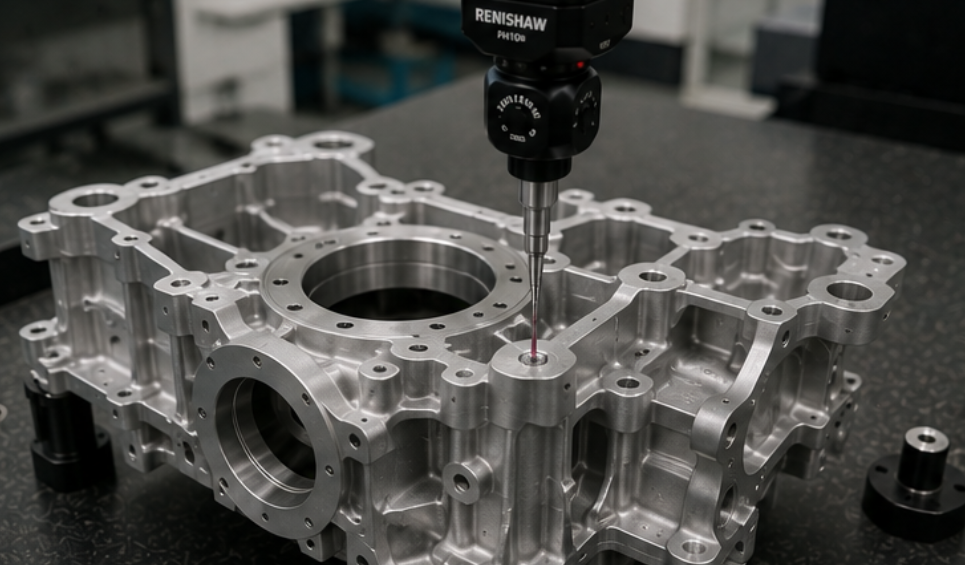

Probe System: Touch probe for holes, bores, and planes; scanning probe if profile or surface data is required.
Fixture: Modular or custom fixture based on datum structure and thin-wall support.
Software: CAD import, GD&T evaluation, automatic report, and SPC output for production quality control.
Service: Calibration, installation guidance, operator training, and after-sales support.
5. Fixture Design Is A Key Part Of Die Casting Inspection
Fixture design is critical for aluminum die casting parts because many parts have thin walls, ribs, irregular surfaces, and areas that can deform under excessive clamping force. If the fixture is not designed correctly, the CMM may measure clamping deformation instead of the true part condition.
A good fixture should locate the part according to the drawing datum, support the part without distortion, allow probe access to all critical features, and make loading repeatable for operators. For batch production, a dedicated fixture can reduce inspection time and improve consistency between shifts.
Fixture Checklist
Does the fixture follow the drawing datum structure?
Can the part be loaded repeatedly in the same position?
Does the fixture prevent thin-wall deformation?
Can the probe access holes, bores, sealing faces, and side features?
Is the fixture suitable for sample inspection or batch inspection?
Can fixture design support future similar die casting parts?
6. Use CMM Reports To Improve Customer Trust
For aluminum die casting factories, a professional CMM report can be more than an internal quality document. It can help support customer approval, reduce quality disputes, and prove that the factory has a controlled inspection process. This is especially important when supplying automotive, EV, medical, industrial equipment, or export customers.

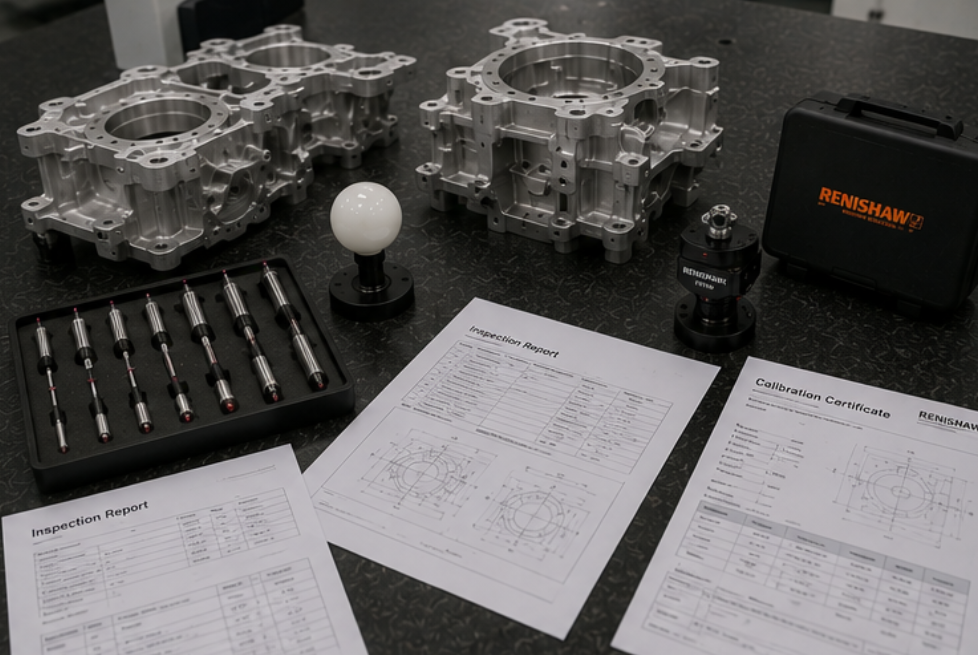

The report should clearly show nominal values, measured values, deviation, tolerance, pass/fail result, datum reference, part ID, drawing number, operator, inspection date, and program version. For batch production, SPC output can help monitor process trends and identify quality drift earlier.
| Report Function | Value For Die Casting Factory |
|---|---|
| GD&T Evaluation | Verifies position, flatness, profile, perpendicularity, coaxiality, and datums |
| Automatic Report | Reduces manual reporting time and improves traceability |
| CAD Comparison | Helps compare cast or machined features with the 3D model |
| SPC Output | Supports batch process monitoring and production quality control |
| Pass / Fail Judgment | Helps QC teams make faster approval decisions before shipment |
7. What Buyers Should Provide Before Requesting A Quote
To recommend a suitable CMM machine for aluminum die casting factory quality control, the supplier needs to understand the factory’s parts, tolerances, production volume, and inspection workflow. A simple request for “CMM price” is not enough for a practical recommendation.
Quotation Information Checklist
Aluminum die casting part drawings and CAD files
Maximum part length, width, height, and weight
Part material, casting process, machining process, and surface condition
Critical dimensions, tolerance requirements, and GD&T items
Measured features: holes, bores, sealing faces, datum planes, profiles, and side features
Inspection purpose: sample approval, FAI, machining control, batch inspection, or final inspection
Production volume and inspection frequency
Required probe type, fixture type, software report, and SPC output
Installation environment, calibration needs, and after-sales expectations
8. Common Mistakes To Avoid
Choosing a CMM only by price without checking real die casting inspection needs.
Selecting measuring range without considering fixture height and probe clearance.
Ignoring casting deformation, thin-wall support, and clamping force.
Using basic manual checks when customer GD&T reports are required.
Not confirming whether the probe can reach bores, side features, and sealing faces.
Forgetting fixture repeatability for batch production inspection.
Comparing quotations without checking software, calibration, training, and service support.
Requesting a quotation without drawings, CAD files, tolerance data, or inspection purpose.
Conclusion
A CMM machine can help aluminum die casting factories improve quality control from sample approval to batch production and final shipment. The right solution should combine suitable measuring range, stable machine accuracy, proper probe system, repeatable fixture design, GD&T software, automatic reports, calibration support, and training. By providing drawings, CAD files, tolerance requirements, measured features, and production workflow before quotation, buyers can receive a more accurate CMM recommendation for aluminum die casting factory quality control.
Need A CMM Machine For Aluminum Die Casting Quality Control?
Send us your aluminum die casting part drawings, CAD files, tolerance requirements, measured features, and production workflow. We can help evaluate a suitable CMM configuration for your factory quality control needs.
