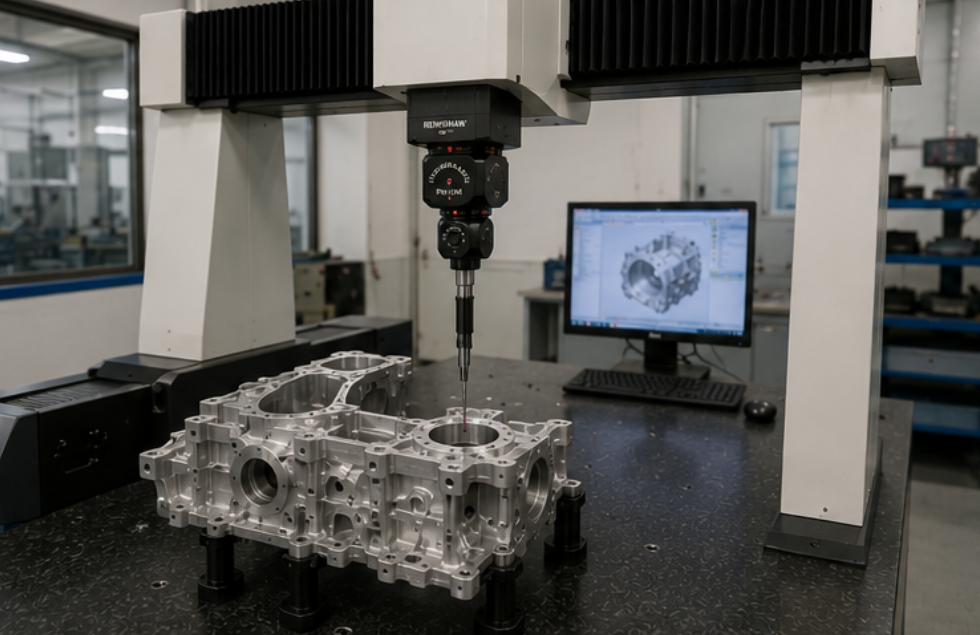

Bridge CMM With Renishaw Probe Package: What Should Be Included
2026-06-12 16:48Bridge CMM With Renishaw Probe Package: What Should Be Included
When buyers compare a bridge CMM with Renishaw probe package, they should not only ask whether the machine includes a Renishaw probe. The real question is what exactly is included in the probe package. A complete CMM probing solution may include probe head, probe body, stylus kit, extension bars, calibration sphere, probe changer, scanning option, software compatibility, fixture support, calibration service, and training. If these details are not confirmed before order, buyers may receive a machine that looks complete in the quotation but cannot fully support real inspection tasks after installation.
Quick Answer
A bridge CMM with Renishaw probe package should clearly list the probe head model, probe body, stylus kit, stylus ball sizes, extension bars, calibration sphere, probe qualification accessories, probe changer if required, scanning option if needed, software compatibility, fixture support, calibration document, training, and after-sales service. Buyers should compare the complete probing solution, not only the machine body or a simple phrase such as “with Renishaw probe”.
1. Why “With Renishaw Probe” Is Not Enough
Many CMM quotations simply write “with Renishaw probe”, but this description is too general for serious industrial purchasing. Different inspection tasks require different probing configurations. A basic touch-trigger probe may be suitable for many holes, planes, edges, and standard 3D features. However, complex parts may require a motorized probe head, longer styli, angled styli, star styli, extension bars, scanning probe, or automatic probe changing system.
For CNC machining factories, automotive component suppliers, aluminum die casting manufacturers, aerospace part producers, mold shops, and precision inspection labs, the probe package can directly affect measurement capability, inspection speed, report reliability, and long-term usability.
Before confirming an order, buyers should ask the supplier to list every probe-related item clearly. This avoids hidden costs and prevents missing accessories after delivery.

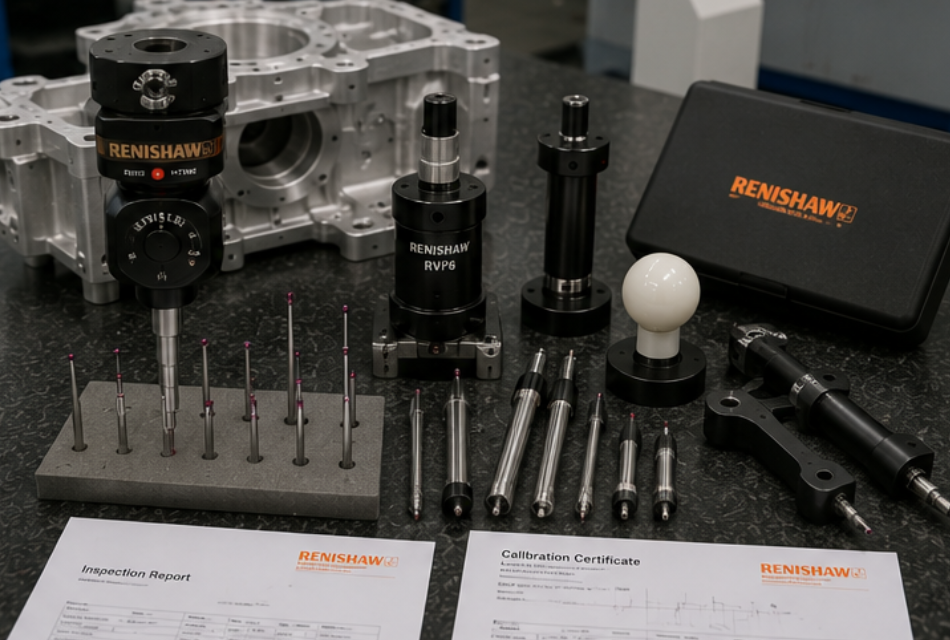

2. What Should Be Included In A Renishaw Probe Package?
A complete probe package should match the buyer’s parts, tolerances, measured features, inspection workflow, and software requirements. The table below shows the key items buyers should confirm before placing an order.
| Package Item | What Buyers Should Confirm | Why It Matters |
|---|---|---|
| Probe Head | Fixed, manual, or motorized probe head model | Affects feature access, automation level, and inspection efficiency |
| Probe Body | Exact Renishaw probe model and quantity | Determines measurement method and compatibility |
| Stylus Kit | Ball sizes, stylus lengths, material, quantity, and spare styli | Controls reach, access, and measurement stability |
| Extension Bars | Required length and compatibility with probe head | Needed for deep bores, tall parts, and difficult features |
| Calibration Sphere | Included size, mount, and qualification accessories | Required for probe qualification and reliable measurement |
| Probe Changer | Included, optional, or not required | Improves automation when multiple styli or probes are used |
| Software Compatibility | Probe setup, qualification, reporting, and scanning support | Ensures the hardware can be used correctly in real inspection |
3. Touch-Trigger Probe Or Scanning Probe?
Buyers should confirm whether their parts need touch-trigger measurement, scanning measurement, or both. Touch-trigger probes are commonly used for discrete point measurement, such as hole position, plane measurement, bore checks, edge points, slots, and standard geometric features. Scanning probes are more suitable when buyers need surface profiles, curved forms, dense point data, or continuous surface evaluation.
A simple CNC machined bracket may only need a touch-trigger probe. A mold insert, aerospace surface, automotive housing profile, or complex cast part may need scanning capability. If the quotation does not clearly explain this difference, buyers may choose a package that is too basic for their real inspection task.
| Probe Type | Suitable For | Buyer Check Point |
|---|---|---|
| Touch-Trigger Probe | Holes, planes, edges, slots, bores, standard geometry | Good for many common precision inspection tasks |
| Scanning Probe | Profiles, curved surfaces, form measurement, dense data | Check software support and scanning data processing |
| Combined Package | Factories inspecting both standard geometry and profiles | Higher capability but needs clear configuration and training |

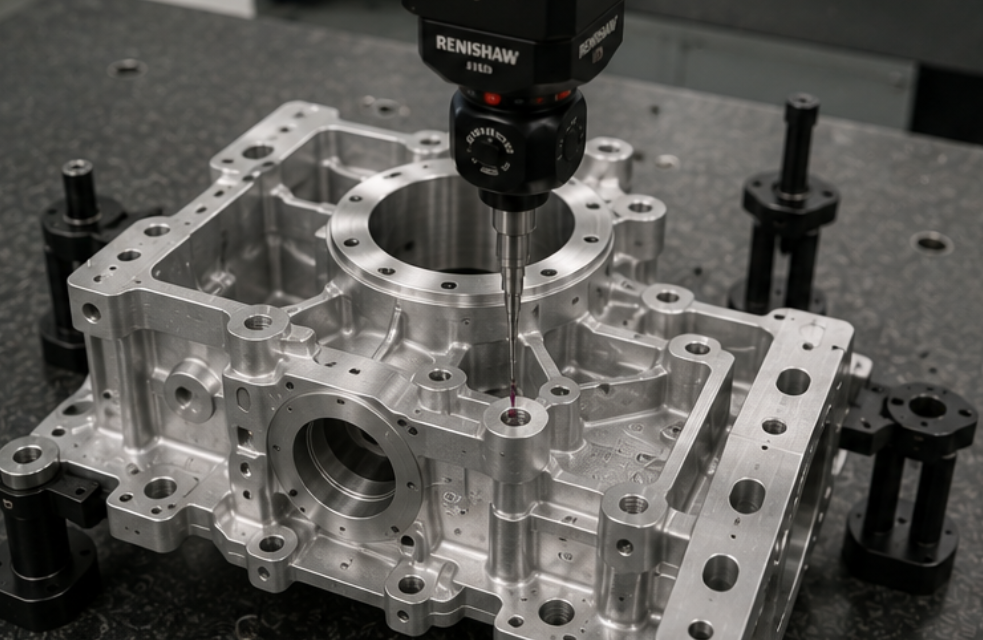

4. Probe Head: Fixed, Manual Or Motorized?
The probe head determines how the probe is positioned and how easily the CMM can access different faces of the part. For simple parts, a fixed or manual probe head may be enough. For complex parts with features on multiple sides, a motorized indexing probe head can reduce manual adjustment and improve repeatability.
CNC machined housings, automotive components, EV motor housings, die casting parts, and aerospace brackets often have side holes, angled surfaces, deep bores, and multiple datum faces. In these cases, buyers should ask whether the probe head can access these features without repeated part repositioning.
Probe Head Questions To Ask
Is the probe head fixed, manual, or motorized?
Can it access side holes, deep bores, and multi-face features?
Is the probe head compatible with the selected probe body?
Can the software support probe angle management?
Will the probe head improve batch inspection efficiency?
Is the probe head model clearly written in the quotation?
5. Stylus Kit And Accessory Details Are Easy To Miss
Stylus selection has a direct impact on measurement access and repeatability. A short and rigid stylus is usually better for stable measurement, but real parts may require longer styli, smaller stylus balls, star styli, angled styli, or extension bars. If these items are not included, the buyer may need to purchase them separately later.
Buyers should provide drawings and part photos so the supplier can evaluate probe reach, collision risk, fixture clearance, and stylus stability. The quotation should clearly list the stylus kit and all related accessories.
Stylus And Accessory Checklist
Stylus ball diameter and material
Stylus length and quantity
Spare styli for daily replacement
Extension bars for deep features
Star stylus or angled stylus for side features
Calibration sphere and mounting base
Probe tools, adapters, and storage case
6. Software Must Support The Probe Package
Hardware alone is not enough. The CMM software must support probe qualification, probe angle management, measurement programming, CAD import, GD&T evaluation, automatic reporting, and scanning data processing if scanning is included. If the software does not support the selected probe package, the buyer may not be able to use the full capability of the system.
This is especially important for factories that need PPAP reports, first article inspection reports, batch inspection records, customer approval documents, or SPC output for process control.
| Software Function | Why It Matters For Probe Package |
|---|---|
| Probe Qualification | Ensures each probe and stylus setup is ready for accurate measurement |
| Probe Angle Management | Supports multi-angle inspection for complex parts |
| CAD Import | Helps build measurement programs from 3D models |
| GD&T Evaluation | Supports position, flatness, profile, runout, and datum-based inspection |
| Scanning Data Processing | Required when scanning probe is used for profile or surface inspection |
| Automatic Reports | Improves traceability and customer approval efficiency |
7. What Buyers Should Provide Before Quotation
To recommend the right bridge CMM with Renishaw probe package, the supplier needs to understand the buyer’s actual inspection task. A general request for “bridge CMM with Renishaw probe price” is not enough for a complete quotation.
Quotation Information Checklist
Part drawings and CAD files
Maximum part length, width, height, and weight
Material and production process
Critical dimensions and tolerance requirements
GD&T items and datum references
Measured features: holes, bores, planes, profiles, side features, and sealing faces
Need for touch-trigger measurement, scanning measurement, or both
Need for motorized probe head, probe changer, or special styli
Required software report, SPC output, and customer approval documents
Installation environment, training, and after-sales expectations
8. Common Mistakes To Avoid
Accepting a quotation that only says “with Renishaw probe” without exact model details.
Not confirming whether the probe head is fixed, manual, or motorized.
Ignoring stylus length, ball size, extension bars, and special styli.
Buying a touch-trigger package when scanning measurement is required.
Forgetting calibration sphere and probe qualification accessories.
Not checking whether software supports the selected probe configuration.
Assuming probe changer, scanning module, or advanced software is included by default.
Requesting a quote without drawings, CAD files, or measured feature details.
Conclusion
A bridge CMM with Renishaw probe package should be evaluated as a complete inspection system. Buyers should confirm probe head, probe body, stylus kit, extension bars, calibration sphere, probe changer, scanning option, software compatibility, calibration support, training, and after-sales service before purchase. The right package should match the buyer’s part geometry, tolerance level, measured features, fixture strategy, and reporting workflow. By providing drawings, CAD files, tolerance data, and inspection requirements before quotation, buyers can receive a more accurate CMM recommendation and avoid hidden costs.
