Coordinate Measuring Machine Manufacturer For Automotive Component Inspection
2026-06-11 16:24Coordinate Measuring Machine Manufacturer For Automotive Component Inspection
Automotive component inspection requires stable, accurate, and repeatable dimensional measurement. Parts such as aluminum housings, engine components, transmission parts, EV motor housings, battery tray components, brackets, die-cast parts, machined plates, and assembly fixtures often include tight tolerances, complex datum structures, hole patterns, bores, sealing faces, and GD&T requirements. A coordinate measuring machine helps automotive suppliers verify critical dimensions, reduce rework, support PPAP and first article inspection, and provide reliable inspection reports for customer approval. Choosing the right CMM manufacturer is important for building a long-term quality control system.
Quick Answer
Automotive buyers should choose a coordinate measuring machine manufacturer based on real component drawings, tolerance requirements, measuring range, probe configuration, GD&T software, fixture support, calibration ability, installation guidance, training, and after-sales service. A suitable CMM solution should help inspect automotive parts accurately, generate clear reports, and support both sample approval and batch production quality control.
1. Why Automotive Component Inspection Needs CMM Measurement
Automotive components must meet strict dimensional requirements because they often connect with other assemblies. A small deviation in hole position, bore alignment, flatness, sealing surface, or datum relationship may cause assembly problems, leakage, vibration, noise, rework, or customer rejection.
Manual gauges and simple measuring tools can be useful for quick checks, but they are not enough for complex three-dimensional inspection. A coordinate measuring machine can inspect holes, bores, planes, slots, profiles, side features, datum systems, and GD&T requirements with better repeatability and report traceability.
For automotive suppliers, a CMM is commonly used for first article inspection, PPAP documentation, incoming inspection, process inspection, final inspection, customer audit preparation, and batch production quality control.

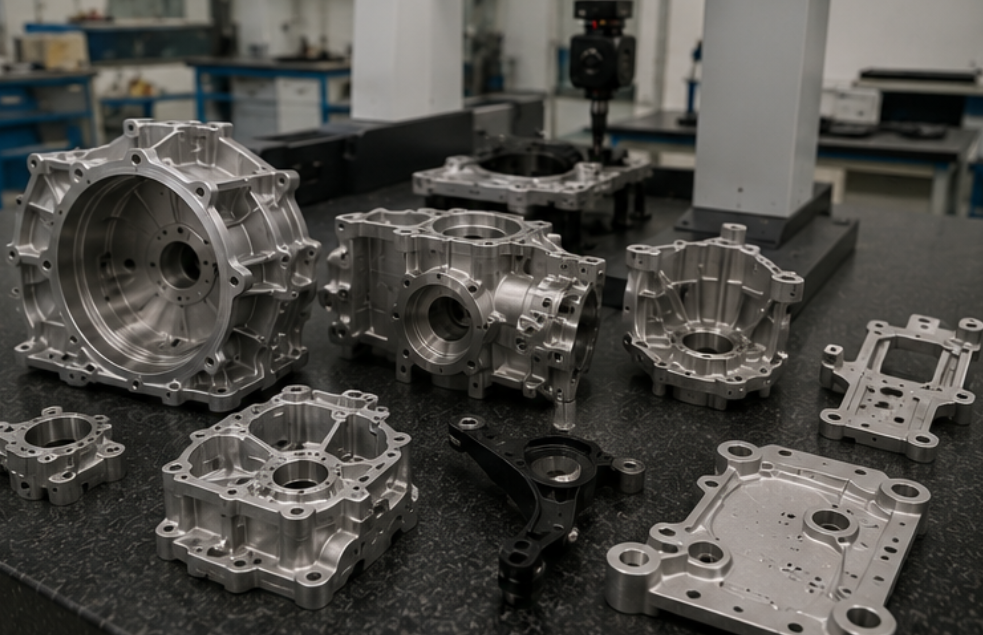

2. Common Automotive Components Measured By CMM
Different automotive components require different measuring ranges, probes, fixtures, and software functions. A professional CMM manufacturer should review the buyer’s real parts before recommending a machine configuration.
| Automotive Component | Inspection Focus | CMM Selection Priority |
|---|---|---|
| Engine Aluminum Housing | Bores, sealing faces, datum planes, mounting holes | Accuracy, probe access, GD&T reporting |
| Transmission Components | Bore alignment, shaft center distance, coaxiality, flatness | Stable stylus setup and datum strategy |
| EV Motor Housing | Roundness, coaxiality, end face flatness, hole position | Bore measurement and repeatable fixture support |
| Battery Tray Components | Large size, flatness, mounting holes, sealing surface | Measuring range and large-part fixture support |
| Automotive Brackets And Fixtures | Hole patterns, profile, perpendicularity, datum relationship | GD&T software and fixture repeatability |
3. What A CMM Manufacturer Should Confirm Before Quotation
A reliable coordinate measuring machine manufacturer should not recommend a machine only by catalog size. The manufacturer should first understand the buyer’s automotive parts, production process, tolerance requirements, measurement features, and inspection workflow.
This step helps avoid common purchasing problems such as insufficient measuring range, missing probe accessories, unsuitable software, poor fixture repeatability, or inaccurate quotation. Automotive inspection often requires more than a basic CMM package.
Before Quotation, Buyers Should Provide
Automotive component drawings and CAD files
Maximum part length, width, height, and weight
Part material, process type, casting or machining condition
Critical dimensions and tolerance requirements
GD&T items and datum references
Measured features such as holes, bores, flatness, profiles, sealing faces, and side features
Inspection purpose: FAI, PPAP, batch inspection, final inspection, or customer approval
Required report format, software function, and service expectation
4. Recommended CMM Configuration For Automotive Inspection

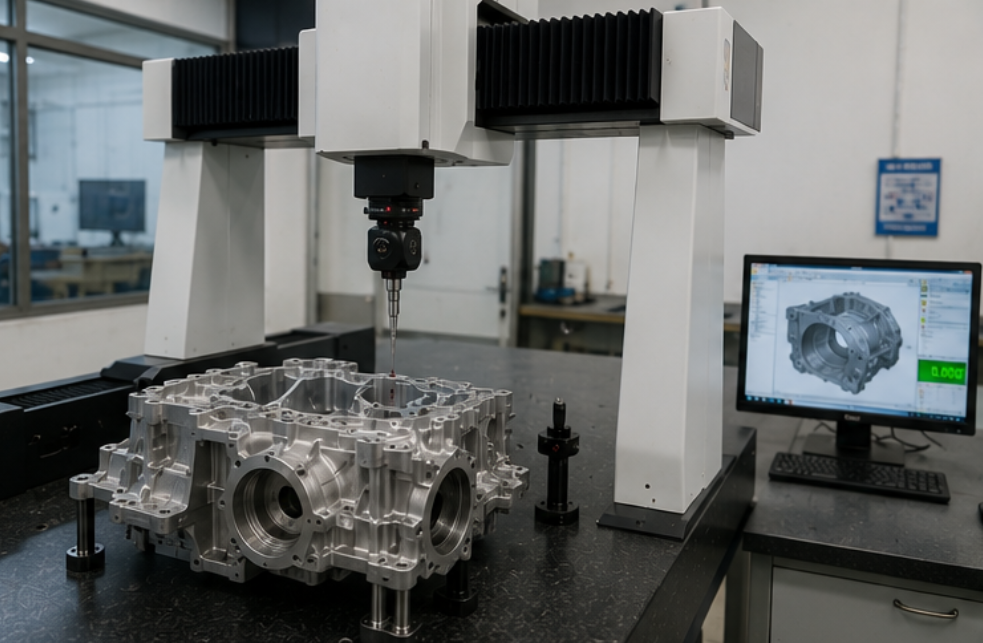

The right CMM configuration depends on part size, tolerance level, inspection frequency, and measured features. For many automotive components, a bridge CMM is a practical choice because it provides stable dimensional inspection for medium-size precision parts. Large battery trays or long aluminum structures may require a larger measuring range or special fixture strategy.
| Configuration Area | Recommended Focus | Buyer Benefit |
|---|---|---|
| Machine Type | Bridge CMM for stable 3D dimensional inspection | Suitable for common automotive components and quality labs |
| Measuring Range | Selected by part size, fixture height, probe clearance, and loading method | Avoids size limitation after installation |
| Probe System | Touch probe for holes and planes; scanning probe for profiles and surfaces | Matches real component features |
| Software | CAD import, GD&T, automatic report, SPC output | Supports PPAP, audits, and batch quality control |
| Fixture | Modular or custom fixture based on datum structure | Improves repeatability and loading efficiency |
5. Probe, Fixture And Software Must Work Together

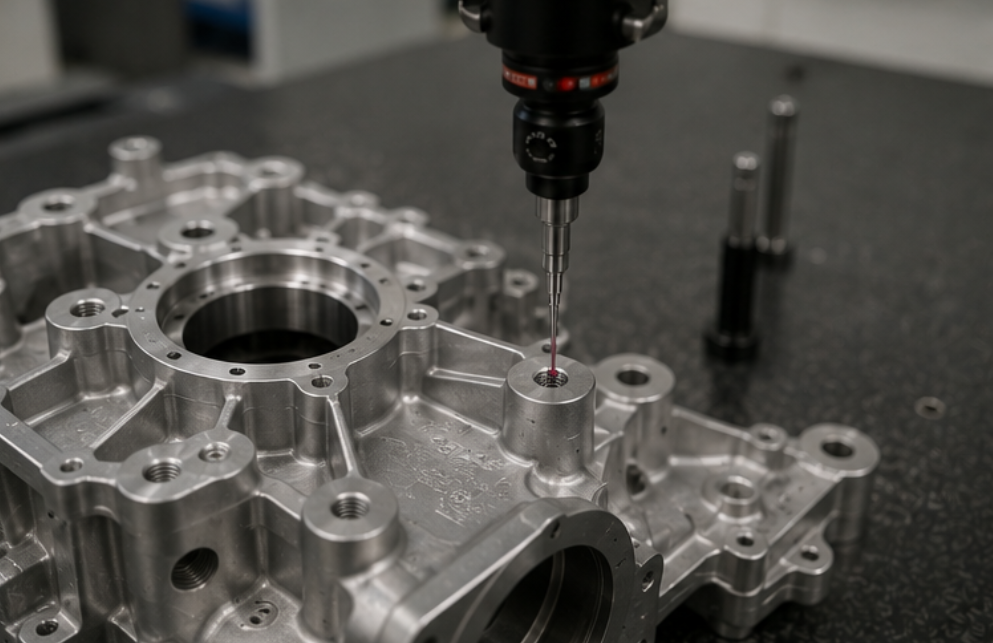

Automotive component inspection is not only about the CMM machine body. Probe selection, fixture design, and software capability must work together. A part may fit inside the measuring range, but if the probe cannot reach side features or deep bores, the machine will not support real inspection needs.
Fixture design is also critical. Automotive parts may have thin walls, cast surfaces, machined datums, and complex clamping requirements. If the fixture causes deformation or unstable positioning, the inspection result may not be repeatable.
Key Questions To Confirm
Can the probe reach all holes, bores, sealing faces, and side features?
Is the stylus length stable enough for the required tolerance?
Is a motorized probe head or scanning probe required?
Does the fixture follow the drawing datum structure?
Can the fixture avoid deformation and over-clamping?
Can the software generate GD&T reports required by automotive customers?
6. Reports For PPAP, FAI And Customer Approval
Automotive suppliers often need inspection reports for PPAP, first article inspection, customer approval, and internal quality records. A useful CMM report should clearly show nominal values, measured values, deviations, tolerances, pass/fail results, datum references, part ID, drawing number, operator, and inspection date.
If the factory needs batch production monitoring, SPC output can help identify machining drift, casting variation, fixture problems, or process instability before defects become serious. This is especially important for automotive suppliers that need stable quality over repeated production runs.
| Report Function | Value For Automotive Suppliers |
|---|---|
| CAD Import | Supports model-based inspection and faster programming |
| GD&T Evaluation | Verifies position, flatness, profile, runout, coaxiality, and datums |
| Automatic Report | Reduces manual work and improves traceability |
| SPC Output | Helps monitor batch stability and process trends |
| Pass / Fail Judgment | Supports faster customer approval and internal quality decisions |
7. What Automotive Buyers Should Confirm Before Order
Before placing an order, buyers should make sure the CMM manufacturer has clearly confirmed all major technical and service details. This reduces procurement risk and helps ensure the machine can be used effectively after installation.
Order Confirmation Checklist
Machine model, measuring range, accuracy, and load capacity
Probe head, probe body, stylus kit, and calibration sphere
Scanning probe or motorized probe head if required
Software modules, CAD import, GD&T, report, and SPC output
Fixture scope: included, optional, or customized
Calibration certificate and acceptance testing arrangement
Installation guidance, training, warranty, and after-sales service
Export packaging, delivery terms, lead time, and payment conditions
8. Common Mistakes To Avoid
Choosing a CMM manufacturer only by the lowest machine price.
Requesting a quotation without sending real automotive component drawings.
Ignoring fixture height, probe clearance, and side feature access.
Buying basic software when PPAP or GD&T reports are required.
Not confirming calibration, installation, training, and service support.
Assuming probe accessories and fixture tools are included by default.
Skipping sample testing or acceptance verification before final delivery.
Comparing machine bodies instead of complete inspection solutions.
Conclusion
Automotive component inspection requires reliable dimensional measurement, stable reports, and repeatable quality control. A suitable coordinate measuring machine manufacturer should help buyers evaluate part size, tolerance requirements, measured features, probe access, fixture support, software reporting, calibration, installation, and after-sales service. By providing drawings, CAD files, GD&T requirements, and inspection workflow before quotation, buyers can receive a more accurate CMM recommendation for automotive component inspection and reduce purchasing risk.
