CMM Purchase Checklist Before Paying Deposit To A Supplier
2026-06-09 14:02CMM Purchase Checklist Before Paying Deposit To A Supplier
Paying a deposit for a coordinate measuring machine is an important step in the purchasing process. Before sending payment, industrial buyers should make sure the supplier has clearly confirmed the machine model, measuring range, accuracy, probe system, software functions, fixture requirements, calibration documents, export packaging, installation support, training, warranty, and delivery terms. A CMM is not only a machine body; it is a complete dimensional inspection system. If key details are not confirmed before deposit, buyers may face missing accessories, hidden costs, delayed installation, unsuitable configuration, or inspection problems after delivery.
Quick Answer
Before paying a deposit to a CMM supplier, buyers should confirm the final machine configuration, accuracy specification, probe package, stylus kit, software modules, fixture scope, calibration certificate, acceptance testing, delivery terms, export packaging, installation support, operator training, warranty, spare parts, and after-sales response. The supplier should also review the buyer’s drawings, CAD files, tolerance requirements, measured features, and installation environment before finalizing the order.
1. Confirm The Supplier Has Reviewed Your Real Parts
Before paying a deposit, buyers should make sure the supplier has reviewed the real inspection application. A quotation based only on “CMM price” or “standard bridge CMM” may not be enough. The supplier should understand the buyer’s part drawings, CAD files, maximum part size, part weight, tolerance requirements, GD&T items, measured features, fixture needs, and inspection purpose.
This step is especially important for CNC machined parts, aluminum die casting parts, automotive housings, EV battery tray components, aerospace brackets, molds, tooling parts, and precision assemblies. These parts may require special probe access, higher accuracy, larger measuring range, custom fixtures, or advanced software reporting.
If the supplier has not reviewed your real parts before deposit, the final machine may not match your actual inspection workflow.
2. Check The Final Machine Model And Measuring Range
The purchase agreement should clearly list the CMM model, machine type, X/Y/Z measuring range, table load capacity, accuracy specification, repeatability, and installation environment requirements. Buyers should not only check whether the part fits inside the measuring range. Fixture height, clamps, probe head size, stylus length, and safe movement clearance must also be considered.
| Item To Confirm | What Should Be Written Clearly | Risk If Missing |
|---|---|---|
| Machine Model | Exact model, machine type, and configuration version | Wrong machine or unclear specification after delivery |
| Measuring Range | X, Y, Z travel and usable working volume | Part or fixture may not fit real inspection setup |
| Accuracy | Accuracy specification and calibration condition | Machine may not verify required tolerance reliably |
| Load Capacity | Maximum part and fixture weight allowed | Heavy parts may create safety or measurement risk |
| Environment Requirement | Temperature, vibration, air supply, power supply, floor condition | Machine may not perform well after installation |
3. Confirm The Complete Probe Package

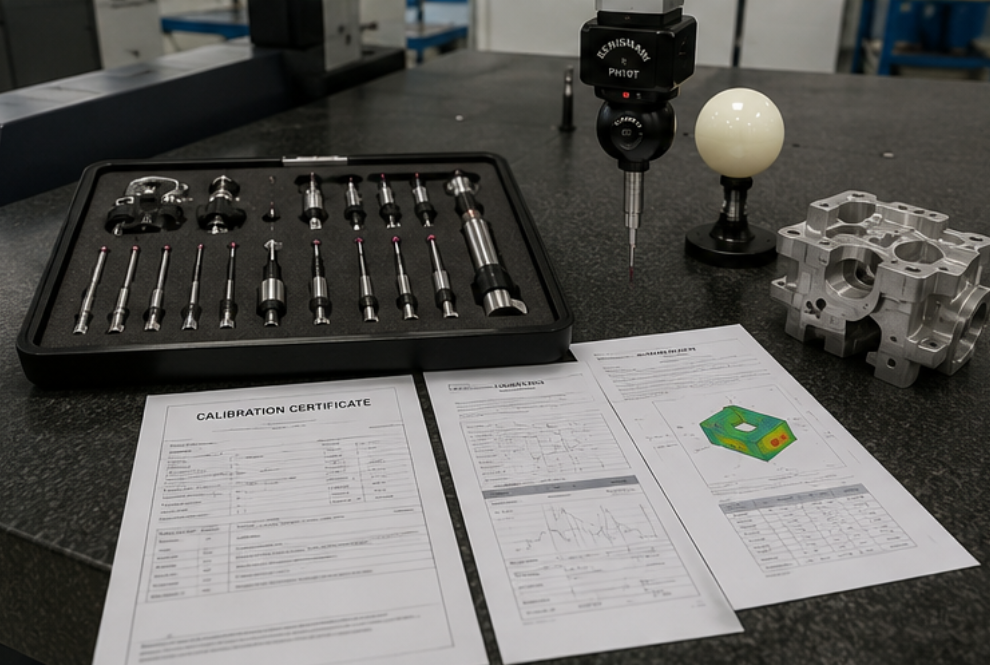

The probe system directly affects what the CMM can measure. Before deposit, buyers should confirm exactly what probe head, probe body, stylus kit, extension bars, calibration sphere, probe changer, and scanning option are included. A quotation that simply says “with probe” or “with Renishaw probe” is not detailed enough.
If the part has deep bores, side holes, narrow grooves, multiple datum surfaces, profiles, or curved surfaces, a basic touch-trigger probe package may not be enough. Missing probe accessories often become extra cost after the deposit is paid.
Probe Package Checklist
Probe head model and probe body model
Touch-trigger probe or scanning probe configuration
Stylus kit, stylus ball sizes, stylus lengths, and spare styli
Extension bars, star stylus, or angled stylus if required
Calibration sphere and probe qualification accessories
Probe changer or automatic probe changing system if included
Compatibility between probe package, CMM controller, and software
4. Confirm Software Modules And Report Functions
Software should be confirmed before deposit, not after machine delivery. Buyers should check whether the software includes CAD import, GD&T evaluation, automatic inspection reports, SPC data output, scanning data processing, offline programming, and custom report templates. These functions may be standard in some packages but optional in others.
For automotive, aerospace, CNC machining, die casting, mold, medical device, and EV component inspection, professional reports are often required by customers. The report should clearly show nominal value, measured value, deviation, tolerance, pass/fail result, datum reference, part ID, drawing number, inspection date, and operator information.
| Software Function | Confirm Before Deposit | Why It Matters |
|---|---|---|
| CAD Import | Included or optional | Supports model-based measurement programming |
| GD&T Evaluation | Included or optional | Needed for position, flatness, profile, runout and datums |
| Automatic Report | Report format and language | Improves traceability and customer approval efficiency |
| SPC Output | Included if batch control is needed | Helps monitor production process stability |
| Scanning Data Processing | Required if scanning probe is used | Supports profiles, curves and surface measurement |
5. Clarify Fixture Scope Before Deposit
Fixtures are often not included by default. Before paying a deposit, buyers should ask whether the quotation includes a modular fixture, custom fixture, fixture base plate, clamps, locating pins, or no fixture at all. For repeatable batch inspection, the fixture can be just as important as the machine itself.
Parts such as aluminum housings, thin-wall die castings, EV battery tray components, aerospace brackets, mold inserts, and precision machined parts may require dedicated fixture support. Without proper fixture design, measurement repeatability may be poor, and operators may spend too much time loading and aligning parts.
Fixture Questions To Ask
Is any fixture included in the quotation?
Is the fixture modular or custom-made?
Does the fixture follow the drawing datum structure?
Can it prevent thin-wall deformation or over-clamping?
Can the probe access all critical features after the part is fixed?
Is the fixture suitable for sample inspection or batch inspection?
6. Confirm Calibration, Acceptance Testing And Documents
Calibration and acceptance testing should be clearly agreed before deposit. Buyers should confirm whether the machine will be calibrated before shipment, whether a calibration certificate will be provided, and whether factory acceptance testing or site acceptance testing is included.
Documentation is also important for customs clearance, installation, quality audits, and internal equipment records. Missing documents can delay delivery, installation, and formal acceptance.
| Document / Test | What Buyers Should Confirm |
|---|---|
| Calibration Certificate | Machine serial number, test date, accuracy result and traceability information |
| Factory Acceptance Test | Machine movement, accuracy verification, probe function and software check before shipment |
| Site Acceptance Test | Installation verification and real part testing after delivery if required |
| Manuals And Training Files | Operation manual, maintenance guide, software guide and training materials |
| Export Documents | Commercial invoice, packing list, warranty document and shipping documents |
7. Confirm Export Packaging, Delivery Terms And Payment Conditions
For overseas buyers, delivery terms and packaging must be written clearly before deposit. A CMM is precision equipment, so the machine body, granite table, controller, computer, probe system, accessories, and documents should be protected during long-distance transportation.
Buyers should confirm export-grade wooden case packaging, moisture protection, shock protection, packing photos, shipping dimensions, gross weight, Incoterms, delivery schedule, payment balance terms, and responsibility for freight, insurance, customs clearance, and local delivery.
Export And Payment Checklist
Deposit ratio and balance payment timing
Production lead time and estimated shipment date
Incoterms such as EXW, FOB, CIF, DAP or DDP
Export packaging method and protection level
Shipping size, gross weight and packing list
Pre-shipment photos and inspection confirmation
Responsibility for freight, insurance, customs and local delivery
8. Confirm Installation, Training, Warranty And Service Response
After delivery, the machine still needs installation, leveling, software setup, probe qualification, calibration verification, and operator training. Buyers should confirm whether these services are included before paying the deposit. If on-site service is required, the quotation should clearly state the service fee, travel cost, schedule, and scope.
Warranty and after-sales service should also be written clearly. Buyers should confirm warranty period, covered parts, response time, spare parts availability, remote support, software support, and maintenance guidance. A low purchase price is not enough if the supplier cannot support the machine after delivery.
9. Final Deposit Checklist
The supplier has reviewed part drawings, CAD files and inspection requirements.
Machine model, measuring range, accuracy, load capacity and environment requirements are confirmed.
Probe package, stylus kit, calibration sphere and probe accessories are clearly listed.
Software modules, CAD import, GD&T, report and SPC functions are confirmed.
Fixture scope is clearly stated as included, optional or excluded.
Calibration certificate, factory acceptance and site acceptance requirements are agreed.
Export packaging, shipping terms, delivery schedule and payment conditions are written clearly.
Installation guidance, training, warranty and after-sales support are confirmed.
Spare parts, software support and service response are explained.
All important items are included in the written quotation or purchase agreement before deposit.
10. Common Mistakes To Avoid Before Paying Deposit
Paying deposit before the supplier reviews real part drawings.
Accepting a quotation that only lists the machine body and price.
Ignoring probe accessories, software modules and fixture requirements.
Not confirming calibration certificate and acceptance testing.
Assuming installation, training and after-sales service are included by default.
Not checking export packaging, shipping terms and payment balance conditions.
Choosing the lowest price without comparing total inspection solution.
Relying only on verbal promises instead of written confirmation.
Conclusion
Before paying a deposit to a CMM supplier, buyers should carefully confirm machine configuration, measuring range, accuracy, probe package, software functions, fixture scope, calibration, documents, export packaging, installation support, training, warranty and service response. A coordinate measuring machine should be purchased as a complete inspection solution, not only a machine body. By checking all key items before deposit, buyers can avoid hidden costs, reduce delivery risk and make sure the CMM can support real inspection work after installation.
