Quick Answer

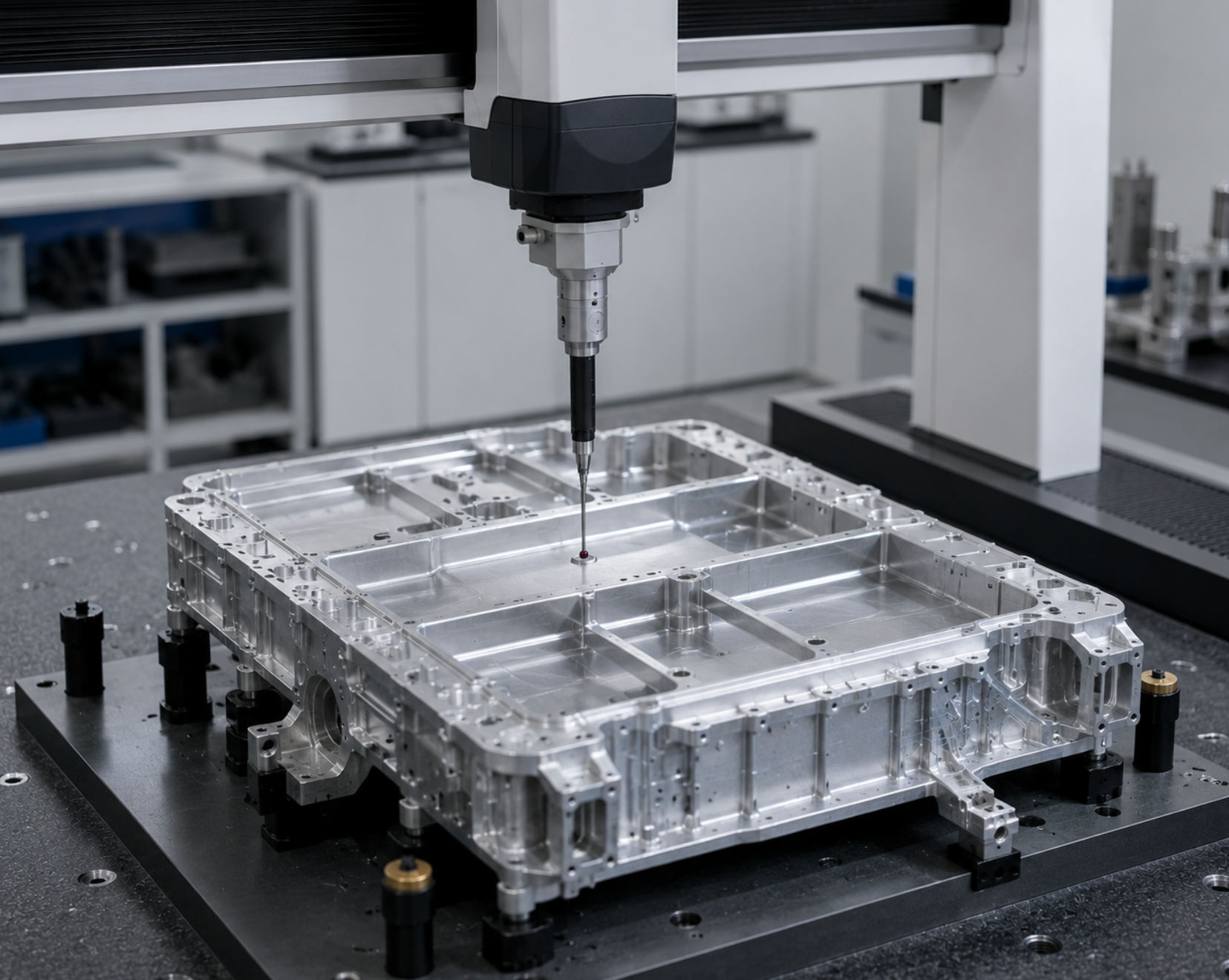

A CMM machine for EV battery box and aluminum frame inspection should be selected according to frame length, width, height, weight, fixture support, probe clearance, flatness tolerance, hole position accuracy, sealing surface requirement, welded or machined structure, GD&T report needs, and loading method. For large battery trays and aluminum frames, buyers should also consider measuring range, Z-axis clearance, table load, crane loading, custom fixture design, and CAD comparison capability.
1. Why EV Battery Box Inspection Requires Careful CMM Selection
EV battery boxes and aluminum frames are not small precision blocks. They are usually long, wide, thin-wall, and structurally complex. A battery box may include extruded aluminum profiles, welded joints, machined mounting surfaces, sealing grooves, cross beams, threaded inserts, bolt holes, locating pins, cooling plate interfaces, and crash protection structures.
The dimensional accuracy of these parts affects battery pack assembly, sealing performance, vehicle body connection, module positioning, crash safety, thermal management, and final vehicle quality. If the frame is twisted, the sealing face is uneven, or the mounting holes are out of position, the battery pack may be difficult to assemble or fail customer inspection.
A CMM machine can inspect the 3D relationship between long frame edges, datum planes, holes, slots, sealing faces, and mounting surfaces. For EV battery structures, this is often more reliable than checking only with manual gauges.
2. Typical EV Battery Box And Aluminum Frame Parts Measured By CMM
Different EV battery structure parts require different measuring range, fixture support, and probe access. The CMM should be selected based on real drawings and inspection workflow.
| Part Type | Inspection Focus | CMM Selection Priority |
|---|---|---|
| EV Battery Box | Overall length and width, sealing face flatness, mounting holes, datum planes | Large measuring range, fixture support, flatness report |
| Battery Tray | Frame profile, module mounting points, threaded inserts, sealing grooves | Long X/Y range, hole position accuracy, probe access |
| Aluminum Frame Assembly | Welded frame distortion, diagonal deviation, flatness and hole pattern | Custom fixture, datum alignment and CAD comparison |
| Side Beam And Cross Member | Length, straightness, hole pitch, machined mounting pads | Long measuring range and repeatable support points |
| Cooling Plate Interface | Flatness, parallelism, sealing relationship and mounting location | Surface measurement and GD&T software |
| Battery Pack Mounting Bracket | Hole position, perpendicularity, profile and datum relationship | Stylus access and automatic report output |
3. Key Features To Inspect On EV Battery Boxes
EV battery box inspection should focus on features that directly affect sealing, module installation, body assembly, structural strength, and repeatable production quality.
| Measured Feature | Why It Matters | CMM Inspection Focus |
|---|---|---|
| Sealing Surface Flatness | Affects waterproof and dustproof sealing performance | Flatness, profile, parallelism and surface relationship |
| Mounting Hole Position | Controls assembly with vehicle body and battery pack components | Hole position, pitch, diameter, threaded insert location |
| Frame Profile And Straightness | Affects module fit, structural alignment and installation accuracy | Long edge profile, straightness, CAD comparison if required |
| Diagonal And Overall Geometry | Detects frame twist, welding distortion and assembly deformation | Overall length, width, diagonal relationship and datum alignment |
| Datum Planes And Locating Points | Defines assembly and inspection reference | Datum setup, flatness, perpendicularity and repeatability |
| Machined Pads And Bracket Interfaces | Controls battery module, cooling plate or protective structure installation | Height, position, flatness, parallelism and hole relationship |
4. Common Dimensional Risks In EV Battery Box Production
EV battery box and aluminum frame production may include extrusion, cutting, welding, friction stir welding, CNC machining, riveting, bonding, heat treatment and surface treatment. Each process may introduce dimensional changes.
| Quality Risk | Possible Cause | CMM Control Method |
|---|---|---|
| Frame Twist Or Warpage | Welding heat input, uneven clamping, stress release or handling deformation | Measure diagonal relationship, flatness, profile and datum-based geometry |
| Sealing Face Distortion | Welding deformation, machining stress, local fixture pressure | Inspect sealing surface flatness, profile and local deviation |
| Hole Pattern Deviation | Machining datum shift, fixture error, tool wear or accumulated tolerance | Check mounting hole position, pitch and GD&T result |
| Module Mounting Point Error | Welding distortion, insert installation variation, CNC positioning error | Measure mounting pad height, hole position and datum relationship |
| Profile Mismatch | Extrusion tolerance, machining deviation or frame assembly variation | Use profile measurement or CAD comparison when required |
5. Measuring Range And Loading Method Are Critical
EV battery boxes and aluminum frames are usually larger than typical machined housings. Even if the part is thin, it may require a long X/Y measuring range. Buyers should not choose a CMM only by checking the outside dimensions of the part. Fixture height, support points, clamps, probe clearance and loading method also matter.
Large battery trays may need trolley loading, crane loading, or special transfer carts. The CMM room should have enough space for safe loading and unloading, and the machine table should support the combined weight of the frame and fixture.
Size And Loading Checklist
Maximum battery box length, width, height and weight
Fixture length, fixture height and support point layout
Probe clearance for long edges, holes, sealing faces and side features
Loading method: manual, trolley, crane or transfer cart
Inspection room size, door access and workpiece transfer route
Future EV frame sizes and new platform expansion plans
6. Recommended CMM Configuration For EV Battery Box Inspection
The suitable CMM configuration depends on part size, tolerance, inspection frequency, fixture method and report requirements. For larger battery trays and aluminum frame assemblies, a large bridge CMM is often more practical because it provides stable measurement volume and clear access for long parts.
| Configuration Area | Recommended Focus | Buyer Benefit |
|---|---|---|
| Measuring Range | Selected by battery box length, width, fixture size and probe clearance | Avoids insufficient travel for large frame inspection |
| Table Load | Must support battery frame plus fixture weight | Improves safety and long-term measurement stability |
| Probe System | Touch-trigger probe for holes and planes; scanning option for long profiles and sealing surfaces | Matches both routine and complex inspection needs |
| Stylus Package | Long styli, angled styli, star styli and extensions for side holes and frame edges | Improves access to mounting holes, grooves and side features |
| Software | GD&T, CAD import, automatic reports, SPC output and profile evaluation | Supports customer approval and production monitoring |
| Fixture Support | Custom support fixture for long aluminum frame without deformation | Improves repeatability and avoids measuring fixture-induced distortion |
7. Fixture Design For Long Aluminum Frames
Fixture design is especially important for EV battery boxes because long aluminum frames can bend or twist if they are not supported correctly. Over-clamping can also change the measured condition of the frame. The fixture should simulate the functional support condition as closely as possible while still allowing probe access.
Fixture Checklist
Does the fixture support the battery box according to functional datums?
Can the long frame be held without bending or twisting?
Does the fixture avoid blocking mounting holes and sealing surfaces?
Can the part be loaded repeatedly by different operators?
Can the fixture work with trolley or crane loading?
Does the inspection reflect free-state or assembly-state requirements?
8. What Should Be Included In The CMM Inspection Report?
A useful EV battery box inspection report should help quality engineers understand whether the frame is suitable for assembly, sealing and customer acceptance. The report should clearly show critical dimensions, GD&T results and inspection references.
Recommended Report Content
Part name, part number, drawing number, CAD version and revision
Overall length, width, height and diagonal relationship
Sealing surface flatness, profile and local deviation
Mounting hole position, pitch, threaded insert location and datum relationship
Frame straightness, profile, flatness and twist measurement
Module mounting point height and location
Nominal value, measured value, tolerance, deviation and pass/fail result
Fixture method, probe setup, inspection date, operator and machine information
SPC output if batch monitoring is required
9. What Buyers Should Provide Before Requesting A Quote
To recommend the right CMM machine for EV battery box and aluminum frame inspection, the supplier needs complete application information. A simple request for CMM price does not show whether the machine can handle the real frame size, fixture, loading method and inspection workflow.
Quotation Information Checklist
EV battery box or aluminum frame drawings and CAD files
Maximum part length, width, height and weight
Material, extrusion, welding, machining and surface treatment process
Critical dimensions, tolerance requirements and GD&T items
Measured features: sealing surfaces, mounting holes, frame profile, module points, datum planes and side features
Fixture size, support method, clamping method and loading method
Whether CAD comparison, profile measurement or SPC output is required
Inspection purpose: first article, process control, batch sampling, final inspection or customer approval
Installation room size, loading route, destination country and service expectations
10. Common Mistakes To Avoid
Choosing a CMM only by part length and ignoring fixture size and probe clearance.
Ignoring sealing surface flatness and only checking outside dimensions.
Using an unstable fixture that bends or twists the long aluminum frame.
Forgetting crane, trolley or transfer cart loading requirements.
Not checking table load capacity for the battery frame plus fixture.
Using a probe setup that cannot reach side holes, grooves or long frame edges.
Buying software without GD&T, CAD import or profile report functions.
Requesting a quotation without drawings, CAD files, frame size and loading method.
Conclusion
EV battery boxes and aluminum frames require accurate inspection of long frame geometry, sealing surface flatness, mounting hole position, datum relationships, module mounting points, profile deviation, welded deformation and machined interfaces. A suitable CMM machine should combine proper measuring range, table load, probe clearance, fixture support, GD&T software, CAD import, automatic reports, calibration certificate, installation guidance and after-sales service.
By providing drawings, CAD files, part size, weight, tolerance requirements, fixture method and loading method before quotation, buyers can receive a more practical CMM solution for EV battery box and aluminum frame quality control.
FAQ
1. Why does an EV battery box need CMM inspection?
EV battery boxes need accurate control of frame geometry, sealing surface flatness, mounting hole position, module mounting points and datum relationships. These features affect sealing, battery pack assembly and vehicle installation.
2. What CMM size is suitable for EV battery tray inspection?
The suitable size depends on the battery tray length, width, height, fixture size, support method, probe clearance and future platform size. Large frames usually require a larger bridge CMM.
3. Can a CMM check welded aluminum frame deformation?
Yes. A CMM can measure frame twist, diagonal relationship, flatness, profile deviation, hole position and datum relationship to help evaluate welding or machining deformation.
4. What should buyers send before requesting a quote?
Buyers should send drawings, CAD files, frame size, part weight, tolerance requirements, measured features, fixture method, loading method, report format and destination country.
