CMM For Aluminum Die Casting Parts Inspection
2026-05-31 13:25CMM For Aluminum Die Casting Parts Inspection
Aluminum die casting parts are widely used in automotive, electric vehicle, electronics, machinery, pump, motor, and industrial equipment applications. These parts often include complex shapes, thin walls, mounting holes, datum surfaces, bores, ribs, sealing faces, and assembly interfaces. Because die casting parts may have shrinkage, deformation, draft angles, machining allowance, and surface variation, dimensional inspection is critical before mass production approval and final delivery. A coordinate measuring machine can help manufacturers inspect aluminum die casting parts accurately, verify GD&T requirements, reduce quality disputes, and improve batch production control.
Quick Answer
For aluminum die casting parts inspection, buyers should choose a CMM according to part size, wall thickness, datum structure, machining features, tolerance requirements, fixture support, probe access, GD&T reporting, and batch inspection volume. A suitable CMM solution should measure holes, bores, flatness, profile, mounting surfaces, sealing faces, and datum relationships while avoiding deformation caused by poor fixture support or excessive clamping force.
1. Why Aluminum Die Casting Parts Need CMM Inspection
Aluminum die casting parts are not always simple blocks or standard machined components. Many parts have irregular shapes, curved surfaces, complex ribs, thin walls, bosses, mounting holes, threaded inserts, sealing faces, and functional assembly areas. During casting, cooling, trimming, machining, and heat treatment, small dimensional changes may appear. These changes can affect assembly, sealing, positioning, and product performance.

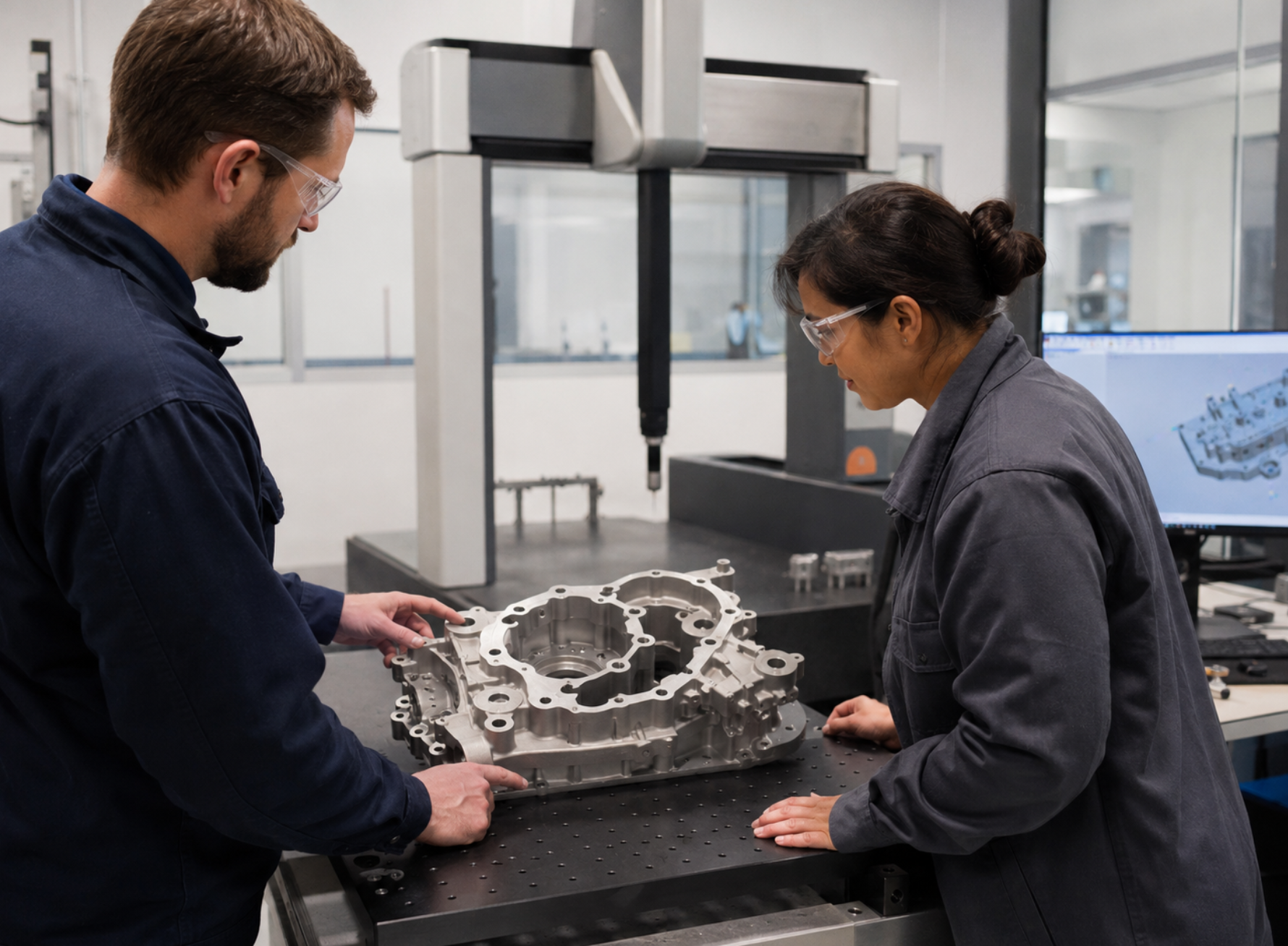

A CMM can measure three-dimensional features and datum relationships that are difficult to verify with only calipers, height gauges, or simple fixtures. For aluminum die casting suppliers, CMM inspection is especially useful for first article inspection, customer approval, PPAP preparation, machining process validation, incoming inspection, and final quality control.
When die casting parts are used in automotive, EV, motor, pump, gearbox, electronic housing, or industrial machinery projects, a reliable CMM report can help buyers confirm that the part meets drawing requirements before large-volume production.

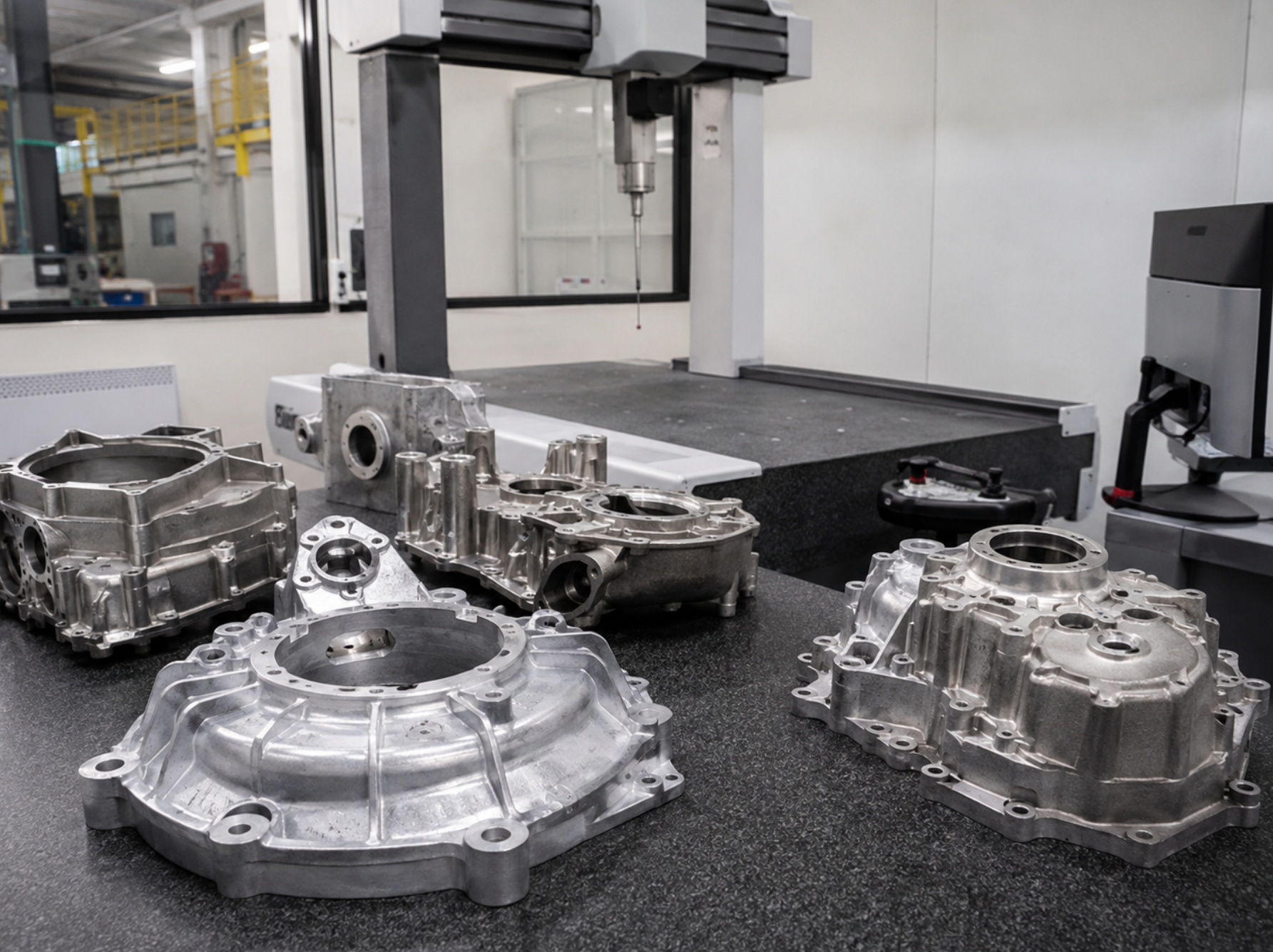

2. Common Aluminum Die Casting Parts Measured By CMM
Different aluminum die casting parts require different CMM configurations. Buyers should define the part type, measured features, tolerance requirements, and inspection purpose before requesting a quotation.
| Part Type | Typical Inspection Focus | CMM Selection Priority |
|---|---|---|
| Automotive Aluminum Housing | Hole position, bore diameter, flatness, datum alignment | GD&T software, probe access, fixture repeatability |
| EV Battery Tray Components | Large size, mounting points, flatness, assembly interfaces | Large measuring range and stable support fixture |
| Motor And Pump Housings | Coaxiality, sealing surface, mounting face, bore alignment | Accuracy, bore measurement, datum strategy |
| Gearbox And Transmission Parts | Bores, shaft centers, parallelism, perpendicularity, runout | Probe configuration and GD&T reporting |
| Electronic Enclosures | Thin wall deformation, screw holes, flatness, cover fit | Controlled fixture support and low clamping force |
3. Key Features To Inspect On Aluminum Die Casting Parts
Aluminum die casting parts usually include both cast features and machined features. Cast surfaces may require profile or deformation checks, while machined surfaces often require tighter dimensional verification. The CMM program should be built around the drawing datum structure and functional features.
Buyers should identify which features are critical for assembly and function. If the part has many holes, bores, sealing surfaces, and side features, the CMM may need a suitable probe head, stylus kit, scanning option, and professional GD&T software.
| Inspection Feature | Why It Matters | Recommended CMM Focus |
|---|---|---|
| Hole Position | Affects mounting, assembly, and customer fit | Touch trigger probe and GD&T position tolerance |
| Bore Diameter And Coaxiality | Important for bearings, shafts, gears, and rotating parts | Stable stylus, bore strategy, repeatability check |
| Flatness And Sealing Faces | Affects sealing, leakage control, and assembly pressure | Datum plane alignment and surface measurement |
| Profile Of Cast Surface | Checks casting deformation and surface deviation | Scanning probe or CAD comparison software |
| Datum Relationships | Controls functional assembly reference | Correct fixture and software datum strategy |
4. Recommended CMM Configuration For Die Casting Inspection

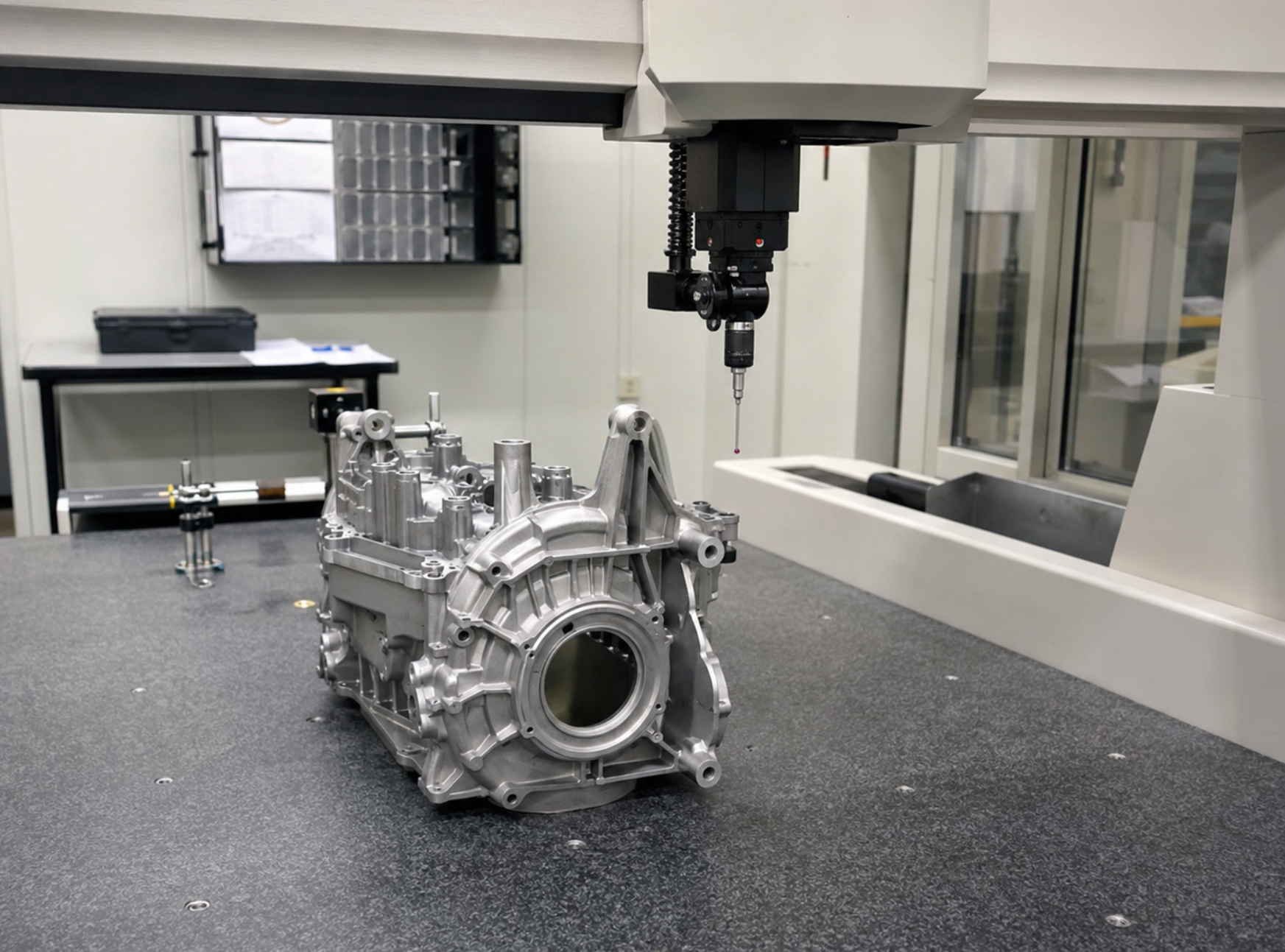

A suitable CMM configuration depends on the part size, tolerance, inspection volume, and measured features. For most aluminum die casting parts, a bridge CMM is commonly used because it provides stable 3D measurement for medium-size and precision parts. Large EV components or large housings may require a larger measuring range or customized inspection solution.
Recommended Configuration
Machine Type: Bridge CMM for stable dimensional inspection of aluminum die casting parts.
Measuring Range: Selected according to maximum part size, fixture height, and probe clearance.
Probe System: Touch trigger probe for holes, planes, and bores; scanning probe if profile or surface data is required.
Fixture: Custom or modular fixture designed around datum structure and thin-wall support.
Software: CAD import, GD&T evaluation, automatic reporting, and SPC output if batch control is needed.
Service: Installation, calibration, operator training, and acceptance testing support.
Buyers should avoid selecting a CMM only by machine size or price. The correct solution should include machine, probe, fixture, software, calibration, and inspection workflow together.
5. Fixture Design Is Critical For Aluminum Die Casting Parts

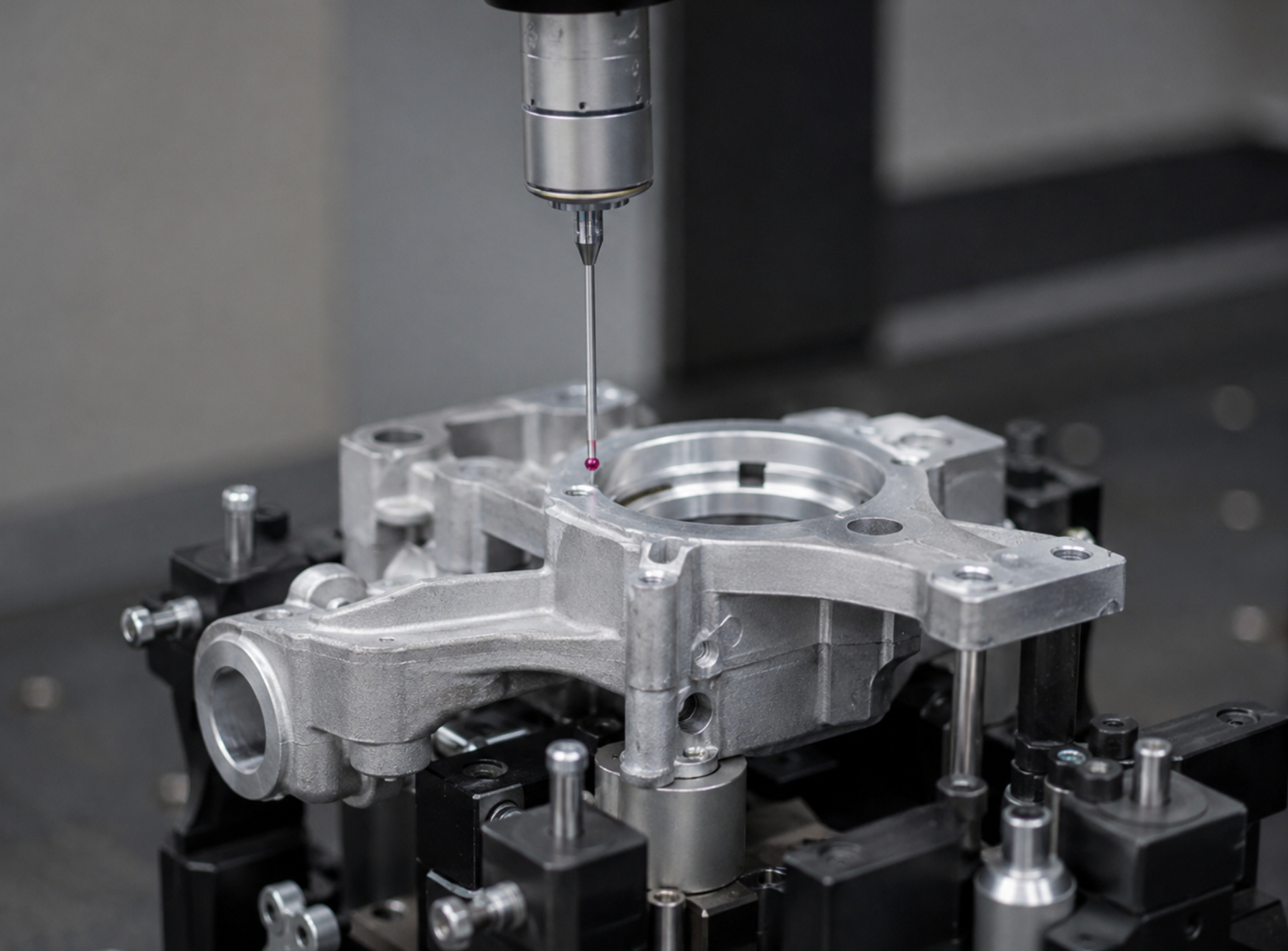

Fixture design has a major impact on repeatability. Aluminum die casting parts may have thin walls, ribs, uneven surfaces, and areas that can deform under excessive clamping force. If the fixture does not support the part correctly, the CMM may measure deformation caused by the fixture instead of the real part condition.
A good fixture should locate the part according to the drawing datum, support the part without distortion, allow probe access to critical features, and make loading easy for operators. For repeated inspection, a custom fixture can reduce setup time and improve batch consistency.
Fixture Checklist
Does the fixture match the drawing datum structure?
Can the part be loaded in the same position every time?
Is clamping force controlled to avoid thin-wall deformation?
Can the probe reach holes, bores, sealing surfaces, and side features?
Is the fixture suitable for first article inspection or batch production?
Can the fixture support future similar die casting parts?
6. GD&T Reporting And Customer Approval
Many aluminum die casting drawings include GD&T requirements such as position, flatness, profile, perpendicularity, parallelism, coaxiality, and runout. A suitable CMM software package should evaluate these tolerances clearly and generate inspection reports that can be used for internal quality control, customer audits, PPAP files, and production approval.
The report should show nominal values, measured values, deviation, tolerance, pass/fail results, datum references, part ID, operator, inspection date, and program version when required.
| Report Function | Value For Die Casting Suppliers |
|---|---|
| CAD Import | Supports comparison between part geometry and CAD model |
| GD&T Evaluation | Verifies datum-based tolerance requirements |
| Automatic Inspection Report | Reduces manual reporting time and improves traceability |
| SPC Data Output | Helps monitor batch production trends and process stability |
| Pass / Fail Judgment | Helps quality engineers make faster acceptance decisions |
7. What Buyers Should Provide Before Requesting A Quote
To recommend a suitable CMM for aluminum die casting parts inspection, the supplier needs more than a general request for price. Buyers should prepare part drawings, CAD files, tolerance requirements, inspection features, and production information.
Quotation Information Checklist
Part drawings and CAD files
Maximum part length, width, height, and weight
Material, wall thickness, and surface condition
Critical dimensions and tolerance requirements
GD&T items and datum references
Measured features: holes, bores, sealing faces, profiles, datum planes, side features
Inspection purpose: first article, PPAP, batch inspection, final inspection, or process control
Required probe type, fixture type, software report, and SPC output
Installation environment and service expectations
8. Common Mistakes To Avoid
Choosing a CMM only by price without checking die casting part tolerance.
Selecting measuring range without considering fixture height and probe clearance.
Ignoring thin-wall deformation caused by poor fixture support.
Using only basic dimensions when GD&T reporting is required by customers.
Not checking whether the probe can reach side features, deep bores, or sealing faces.
Comparing quotations without confirming probe, software, calibration, and service details.
Requesting a quote without drawings, CAD files, tolerance data, or inspection purpose.
Skipping real part testing before final machine acceptance.
Conclusion
Aluminum die casting parts require careful dimensional inspection because casting deformation, machining features, thin walls, datum surfaces, and assembly interfaces can directly affect product quality. A suitable CMM solution should combine the right measuring range, probe system, fixture design, GD&T software, calibration support, and reporting workflow. By providing drawings, CAD files, tolerance data, measured features, and production requirements before quotation, buyers can receive a more accurate CMM recommendation for aluminum die casting parts inspection.
