Quick Answer
CNC quality labs should choose a China coordinate measuring machine supplier based on machine accuracy, measuring range, probe system, software capability, fixture support, calibration certificate, factory acceptance test, export experience, installation guidance, training, warranty, spare parts, and after-sales response. Before quotation, buyers should provide part drawings, CAD files, maximum part size, tolerance level, measured features, inspection workflow, report requirements, and destination country.
1. Why CNC Quality Labs Need A Reliable CMM Supplier
CNC machining factories often produce parts with tight tolerances, multiple datum relationships, complex hole patterns, deep bores, machined surfaces, profiles, and GD&T requirements. A CMM is not only a measuring device. It becomes part of the factory’s quality control system.
For CNC quality labs, the supplier should not only offer a machine price. The supplier should help buyers confirm the right measuring range, probe configuration, software functions, fixture method, report format, calibration documents, installation conditions, and operator training.
A reliable China CMM supplier can help overseas CNC factories reduce inspection uncertainty, improve first article approval, support batch inspection, and provide traceable quality reports for customers.
2. Typical CNC Parts Inspected In A Quality Lab
CNC quality labs may inspect many different part types. The selected CMM should match the factory’s current parts and future machining projects.
| CNC Part Type | Inspection Focus | CMM Selection Priority |
|---|---|---|
| Precision Machined Aluminum Parts | Hole position, flatness, pockets, slots, mounting surfaces | Stable bridge CMM, GD&T software, flexible stylus kit |
| Automotive Housings | Bearing bores, coaxiality, sealing faces, shaft center distance | Bore access, fixture support, automatic report output |
| Aerospace Brackets | Hole patterns, profile, datum planes, lightweight pockets | CAD import, profile measurement, repeatable fixture |
| Mold And Die Components | Cavities, cores, guide holes, parting surfaces, profiles | Scanning option, small stylus access, CAD comparison |
| Precision Fixtures | Locating pins, reference holes, flatness, parallelism | High repeatability and accurate datum alignment |
| Batch Production Parts | Critical dimensions, process drift, tool wear, SPC data | Automatic reports and efficient inspection programs |
3. What A China CMM Supplier Should Help Confirm
A professional supplier should help buyers choose a complete CMM solution, not only a machine body. This is especially important for CNC factories that are building or upgrading a quality lab.
| Selection Area | What To Confirm | Why It Matters |
|---|---|---|
| Measuring Range | Largest part size, fixture height, probe clearance, future workpieces | Prevents the machine from becoming too small after installation |
| Accuracy Level | Part tolerance, acceptance standard, calibration certificate | Ensures the CMM can support real CNC inspection requirements |
| Probe System | Touch-trigger probe, scanning probe option, stylus kit, calibration sphere | Determines whether the CMM can access all critical features |
| Software | CAD import, GD&T evaluation, automatic report, SPC output | Supports customer reports and production quality monitoring |
| Fixture Support | Modular fixture, custom fixture, datum-based loading method | Improves repeatability and reduces operator variation |
| Service Support | Installation guidance, training, troubleshooting, spare parts, warranty | Reduces risk after delivery and helps the quality lab start faster |
4. Bridge CMM Configuration For CNC Quality Labs

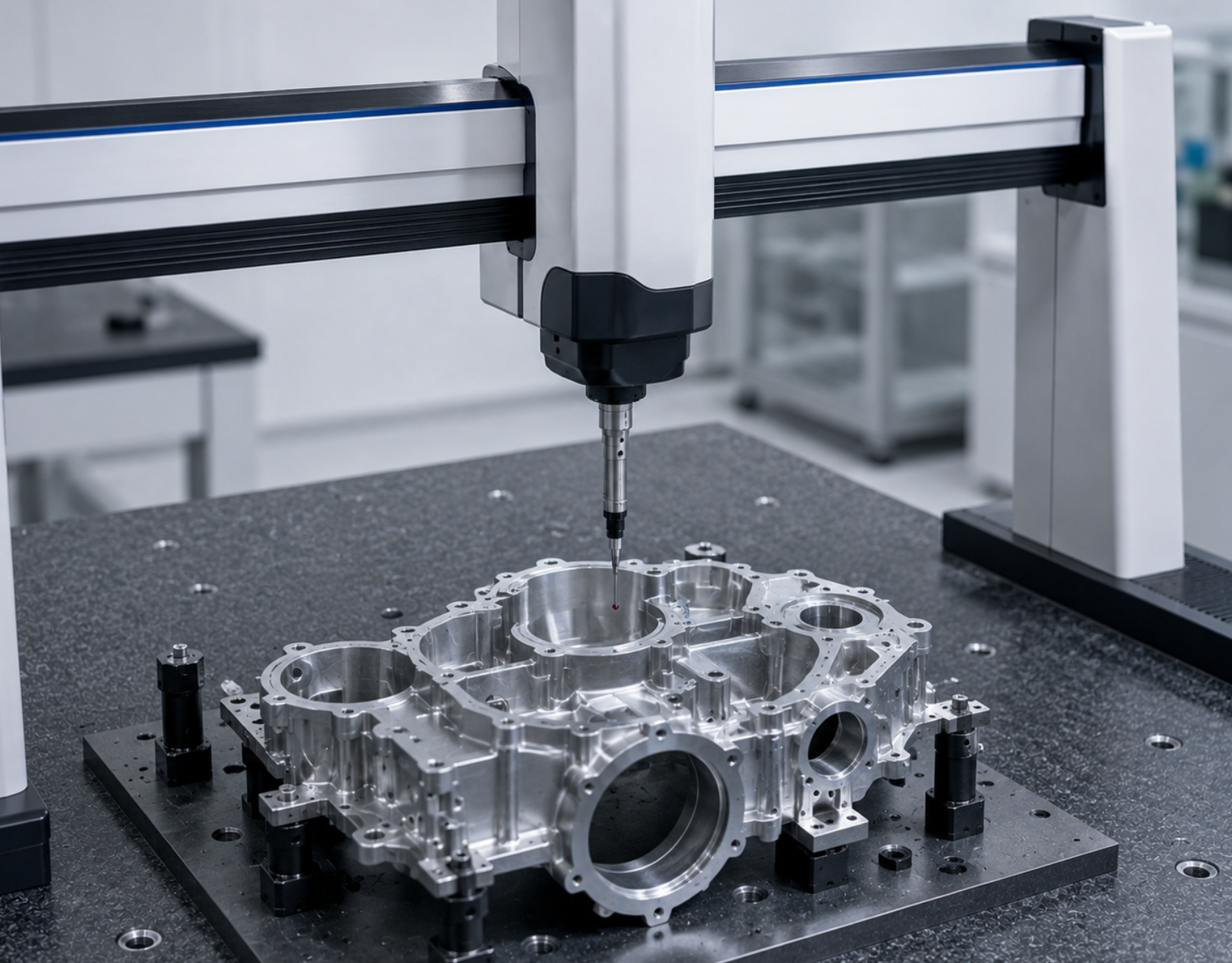

For many CNC machining factories, a bridge CMM is a practical choice because it provides stable measurement for machined parts, housings, brackets, plates, inserts, and structural components. The final configuration should be selected according to the factory’s main product size, tolerance, and inspection workflow.
Common Configuration Items
Bridge CMM body with suitable X/Y/Z measuring range
Granite table and stable machine structure
Controller, computer, air system requirement and power supply details
Touch-trigger probe package for holes, bores, planes and standard features
Optional scanning probe for profiles, surfaces and CAD comparison
Stylus kit, extensions, calibration sphere and probe qualification tools
CAD import, GD&T software, automatic report and SPC output
Calibration certificate, factory acceptance test and pre-shipment inspection
5. Software And Report Functions CNC Buyers Should Check
Software can determine whether the CMM is easy to use in daily CNC quality control. A basic measuring program may not be enough if the factory needs GD&T reports, CAD-based programming, automatic inspection reports, or SPC output.
| Software Function | Application In CNC Quality Lab | Buyer Benefit |
|---|---|---|
| CAD Import | Program inspection from 3D models and compare part geometry | Improves programming efficiency for complex CNC parts |
| GD&T Evaluation | Position, flatness, profile, perpendicularity, coaxiality and datum checks | Supports drawing-based customer inspection reports |
| Automatic Report | Generate repeatable reports for FAI, batch inspection and shipment | Saves time and improves report consistency |
| SPC Output | Track batch trends, tool wear and process stability | Helps CNC factories monitor production quality |
| Profile / Scanning Module | Inspect mold surfaces, aerospace profiles and complex contours | Supports advanced inspection requirements when needed |
6. Supplier Capability Checklist
When comparing China coordinate measuring machine suppliers, overseas buyers should check whether the supplier can support both machine delivery and practical application needs.
Supplier Evaluation Points
Can the supplier recommend a CMM based on drawings and real parts?
Can they explain measuring range, accuracy, probe package and software clearly?
Can they provide calibration certificate and factory acceptance records?
Can they support export packaging and international shipment documents?
Can they provide installation guidance and operator training?
Can they help with probe qualification, report setup and software use?
Can they provide spare parts, stylus accessories and after-sales troubleshooting?
Can they explain optional items and hidden costs before deposit?
7. Export Packaging, Installation And Training
For overseas CNC quality labs, export support is an important part of supplier selection. A CMM is precision equipment, so the machine, granite table, controller, computer, probe system, accessories, calibration tools and documents must be protected during transportation.
After delivery, buyers also need installation guidance, leveling instructions, air supply preparation, software setup, probe qualification, report training and basic maintenance guidance. These items should be confirmed before placing the order.
Export And Service Items To Confirm
Export-grade wooden case packaging and shock protection
Packing size, gross weight and loading method
Commercial invoice, packing list, user manual and warranty document
Installation manual, site preparation guide and remote video support
Operator training for measurement programs and report generation
Warranty period, spare parts availability and after-sales response method
8. What Buyers Should Provide Before Requesting A Quote
To receive a practical quotation from a China coordinate measuring machine supplier, CNC quality labs should provide enough application information. A simple request for CMM price is usually not enough.
Quotation Information Checklist
CNC part drawings and 3D CAD files
Maximum part length, width, height and weight
Typical part types: housings, brackets, plates, mold inserts, fixtures or batch parts
Critical dimensions, tolerance requirements and GD&T items
Measured features: holes, bores, planes, profiles, slots, pockets and datum surfaces
Fixture height, fixture method and loading method
Inspection purpose: first article, process inspection, batch inspection, final inspection or customer approval
Required probe package, software functions, report format and SPC output
Destination country, delivery term preference, installation room condition and service expectations
9. Common Mistakes To Avoid
Choosing a CMM supplier only by the lowest machine price.
Ignoring probe package, stylus kit, software modules and report functions.
Selecting measuring range without considering fixture height and future parts.
Buying software that cannot support CAD import, GD&T or SPC output.
Not checking calibration certificate and factory acceptance test before shipment.
Forgetting export packaging, installation guidance and training support.
Requesting a quotation without drawings, CAD files or tolerance information.
Not confirming warranty, spare parts and after-sales response method before deposit.
Conclusion
Choosing a China coordinate measuring machine supplier for CNC quality labs requires more than comparing machine prices. Buyers should evaluate machine accuracy, measuring range, probe system, stylus kit, software functions, fixture support, calibration certificate, export packaging, installation guidance, training, warranty and after-sales service.
By providing drawings, CAD files, part size, tolerance requirements, measured features, inspection workflow and destination country before quotation, CNC factories can receive a more accurate CMM recommendation and build a practical quality lab for precision machining inspection.
FAQ
1. Why should CNC quality labs use a CMM?
A CMM helps CNC quality labs inspect holes, bores, planes, profiles, datum relationships and GD&T items more accurately than many manual tools. It also supports traceable reports for customers.
2. What CMM size is suitable for CNC machining factories?
The suitable size depends on the largest part size, fixture height, probe clearance, part weight and future workpiece plan. Buyers should provide drawings and CAD files before selecting the measuring range.
3. What should be included in a CMM quotation?
A complete quotation should include machine model, measuring range, accuracy, probe package, stylus kit, software modules, calibration certificate, packaging, installation guidance, training, warranty and optional items.
4. What should buyers send before requesting a quote?
Buyers should send drawings, CAD files, part size, weight, tolerance requirements, measured features, fixture method, inspection purpose, report needs and destination country.
