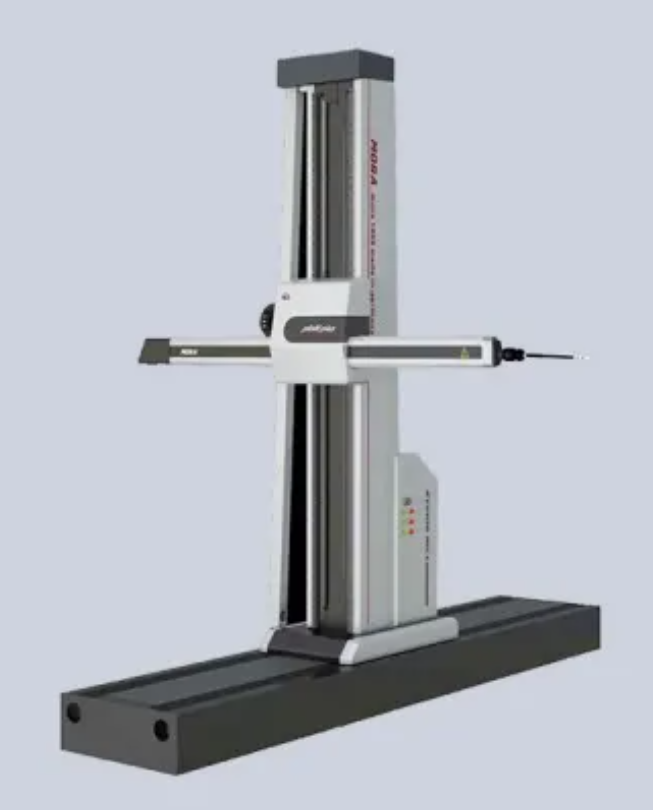

Bridge CMM For Aerospace Brackets And Precision Structural Parts
2026-06-27 16:42Bridge CMM For Aerospace Brackets And Precision Structural Parts
Aerospace brackets and precision structural parts often require strict dimensional control because they are used in assemblies where strength, weight, hole alignment, datum relationship, and installation accuracy are critical. These parts may include machined aluminum brackets, titanium structural parts, mounting plates, aircraft fixture components, lightweight frames, support blocks, aerospace connectors, and precision structural assemblies. A bridge coordinate measuring machine helps manufacturers inspect hole position, profile, flatness, perpendicularity, parallelism, datum relationships, and GD&T requirements before customer approval, assembly, or shipment.
Quick Answer
A bridge CMM for aerospace brackets and precision structural parts should be selected according to part size, tolerance level, material, lightweight structure, hole pattern accuracy, datum setup, profile requirement, fixture support, probe access, GD&T software, calibration certificate, and report traceability. The right CMM solution helps inspect complex structural parts accurately and supports first article inspection, batch inspection, customer approval, and export quality control.

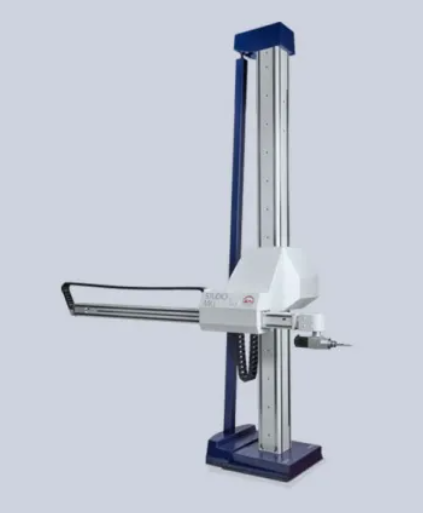

1. Why Aerospace Brackets Need CMM Inspection
Aerospace brackets are not simple metal supports. They may connect structural frames, hold equipment, support assemblies, locate components, or transfer load within a larger system. A small deviation in hole position, profile, flatness, or datum relationship can cause assembly difficulty, misalignment, stress concentration, or customer rejection.
Many aerospace structural parts are lightweight designs with pockets, ribs, thin walls, machined edges, countersunk holes, slots, and complex datum systems. Manual inspection tools may be useful for simple checks, but they are often not enough for full three-dimensional feature verification.
A bridge CMM can measure features according to the drawing datum structure and generate traceable reports for first article inspection, internal quality control, customer review, and pre-shipment confirmation.

2. Typical Aerospace And Precision Structural Parts Measured By CMM
Aerospace and precision structural parts vary widely in size, geometry, and tolerance. A professional CMM recommendation should be based on actual drawings, CAD files, tolerance requirements, and measured features.
| Part Type | Inspection Focus | CMM Selection Priority |
|---|---|---|
| Aerospace Brackets | Hole position, profile, datum planes, mounting surfaces | GD&T software, probe access, fixture repeatability |
| Lightweight Structural Frames | Flatness, parallelism, slot position, machined edges | Measuring range, stable fixture, CAD comparison |
| Mounting Plates | Hole pattern, surface flatness, countersink position, datum relationship | Automatic reports and datum-based alignment |
| Precision Support Blocks | Bores, slots, perpendicularity, parallelism, profile | Stylus package and high repeatability |
| Aircraft Fixture Components | Locating pins, reference holes, assembly datum, surface relationships | Fixture inspection and report traceability |
3. Key Features To Inspect On Aerospace Brackets
Aerospace brackets and structural parts usually include several functional features. The inspection plan should focus on the features that affect assembly, load transfer, location accuracy, and customer drawing approval.
| Measured Feature | Why It Matters | CMM Inspection Focus |
|---|---|---|
| Mounting Hole Position | Affects assembly alignment and fastener fit | Position tolerance, hole pitch, datum-based hole pattern |
| Profile And Contour | Verifies lightweight shape, machined edges, and designed geometry | Profile tolerance, CAD comparison, scanning if required |
| Datum Planes | Controls inspection reference and assembly reference | Flatness, perpendicularity, datum setup, alignment strategy |
| Slots And Pockets | Affects weight reduction, fit, and structural design intent | Width, depth, profile, position, perpendicularity |
| Countersunk Holes | Affects fastener seating and flush assembly | Hole location, angle, depth, concentric relationship |
| Parallelism And Perpendicularity | Controls structural assembly and interface stability | GD&T evaluation based on functional datums |
4. Why Fixture Design Is Important For Thin-Wall Structural Parts
Aerospace brackets and lightweight structural parts may include thin walls, ribs, cutouts, pockets, and weight-reduction features. If the fixture clamps the part incorrectly, the part may deform during inspection. In that case, the CMM may measure clamping distortion instead of the true part geometry.
A good fixture should follow the drawing datum structure, support the part without deformation, allow probe access to critical features, and make loading repeatable for operators. For low-volume aerospace parts, modular fixturing may be suitable. For batch production or repeated inspection, a dedicated fixture can improve consistency.

Fixture Questions To Confirm
Does the fixture follow the drawing datum structure?
Can the part be supported without bending or twisting?
Can the probe reach holes, pockets, slots, and side features?
Does the fixture allow repeatable loading by different operators?
Is the inspection based on free-state or assembly-state condition?
Is a modular fixture enough, or is a custom fixture required?
5. Probe And Software Configuration For Aerospace Part Inspection
Aerospace brackets and precision structural parts may require different probe and software configurations depending on their geometry. Standard holes and planes can often be measured with a touch-trigger probe. Complex profiles, thin edges, or curved surfaces may need scanning capability or CAD comparison.
| Configuration Item | Recommended Focus | Inspection Benefit |
|---|---|---|
| Touch-Trigger Probe | Holes, planes, edges, standard geometric features | Efficient inspection for common bracket features |
| Scanning Option | Profiles, contours, surface shape, complex geometry | Supports profile tolerance and CAD comparison needs |
| Stylus Kit | Small ball styli, extensions, angled styli, star styli | Improves access to pockets, holes, slots, and side faces |
| GD&T Software | Position, profile, flatness, perpendicularity, parallelism, datums | Generates drawing-based reports for customer review |
| CAD Import | 3D model-based programming and profile checking | Improves programming efficiency and inspection clarity |
6. What Should Be Included In The Inspection Report?
Aerospace and precision structural part inspection reports should be clear, traceable, and based on the correct drawing revision. The report should show whether the part meets functional and customer requirements, not only whether a few simple dimensions are acceptable.
Recommended Report Content
Part name, part number, drawing number, and revision
Nominal value, measured value, tolerance, and deviation
Hole position, profile, flatness, perpendicularity, and parallelism results
Datum reference and inspection alignment strategy
CAD comparison result if profile measurement is required
Probe setup, fixture method, machine information, and calibration status
Inspection date, operator, report version, and pass/fail result
Customer approval or first article inspection reference if needed
7. What Buyers Should Provide Before Requesting A Quote
To recommend a suitable bridge CMM for aerospace brackets and precision structural parts, the supplier needs complete application information. A general request for “CMM price” may lead to a configuration that does not match real inspection needs.
Quotation Information Checklist
Aerospace bracket or structural part drawings and CAD files
Maximum part length, width, height, and weight
Material, machining process, heat treatment, and surface condition
Critical dimensions, tolerance requirements, and GD&T items
Measured features: holes, profiles, slots, pockets, datum planes, countersinks, and side features
Inspection purpose: FAI, batch inspection, final inspection, customer approval, or export inspection
Required probe package, scanning need, software report, and fixture method
Destination country, installation environment, calibration requirements, and service expectations
8. Common Mistakes To Avoid
Checking only outside dimensions and ignoring hole position, profile, and datum relationship.
Using an unstable fixture that deforms lightweight structural parts.
Selecting a CMM without checking stylus access to pockets, slots, and side holes.
Buying basic software when GD&T reports and CAD comparison are required.
Ignoring drawing revision, report traceability, and customer approval requirements.
Requesting a quotation without CAD files, tolerance data, or measured feature details.
Comparing only machine price instead of the complete inspection solution.
Skipping first article inspection before batch production or export shipment.
Conclusion
Aerospace brackets and precision structural parts require reliable inspection of hole position, profile, flatness, datum relationships, pockets, slots, countersunk holes, and GD&T requirements. A suitable bridge CMM should combine proper measuring range, stable accuracy, suitable probe package, repeatable fixture support, CAD import, GD&T software, automatic reports, calibration certificate, training, and after-sales service. By providing drawings, CAD files, tolerance data, measured features, and inspection workflow before quotation, buyers can receive a more practical CMM recommendation for aerospace and structural part quality control.
FAQ
1. Why are aerospace brackets difficult to inspect?
Aerospace brackets often include lightweight pockets, thin walls, complex datum structures, precision hole patterns, countersunk holes, and profile requirements. These features usually require CMM inspection rather than simple manual measurement.
2. Does every aerospace bracket need scanning inspection?
Not always. Standard holes and planes may be inspected with a touch-trigger probe. Scanning may be needed when the part has profile tolerance, curved surfaces, complex contours, or CAD comparison requirements.
3. Why is fixture design important?
Lightweight aerospace parts may deform if clamped incorrectly. A proper fixture supports the part according to datum structure and improves repeatability without changing part geometry.
4. What should buyers send before requesting a quote?
Buyers should send drawings, CAD files, part size, part weight, tolerance requirements, GD&T items, measured features, fixture needs, report format, and destination country.
Need A Bridge CMM For Aerospace Brackets Or Structural Parts?
Send us your aerospace bracket drawings, CAD files, tolerance requirements, GD&T items, measured features, and inspection workflow. We can help evaluate a suitable bridge CMM configuration for your precision structural part inspection project.
