High-Speed Engraving and Milling Center: Precision for Complex Surface Details

High-Speed Engraving and Milling Center: Precision for Complex Surface Details

The Engine of Detail: Advanced Spindle Technology and Kinematic Stability

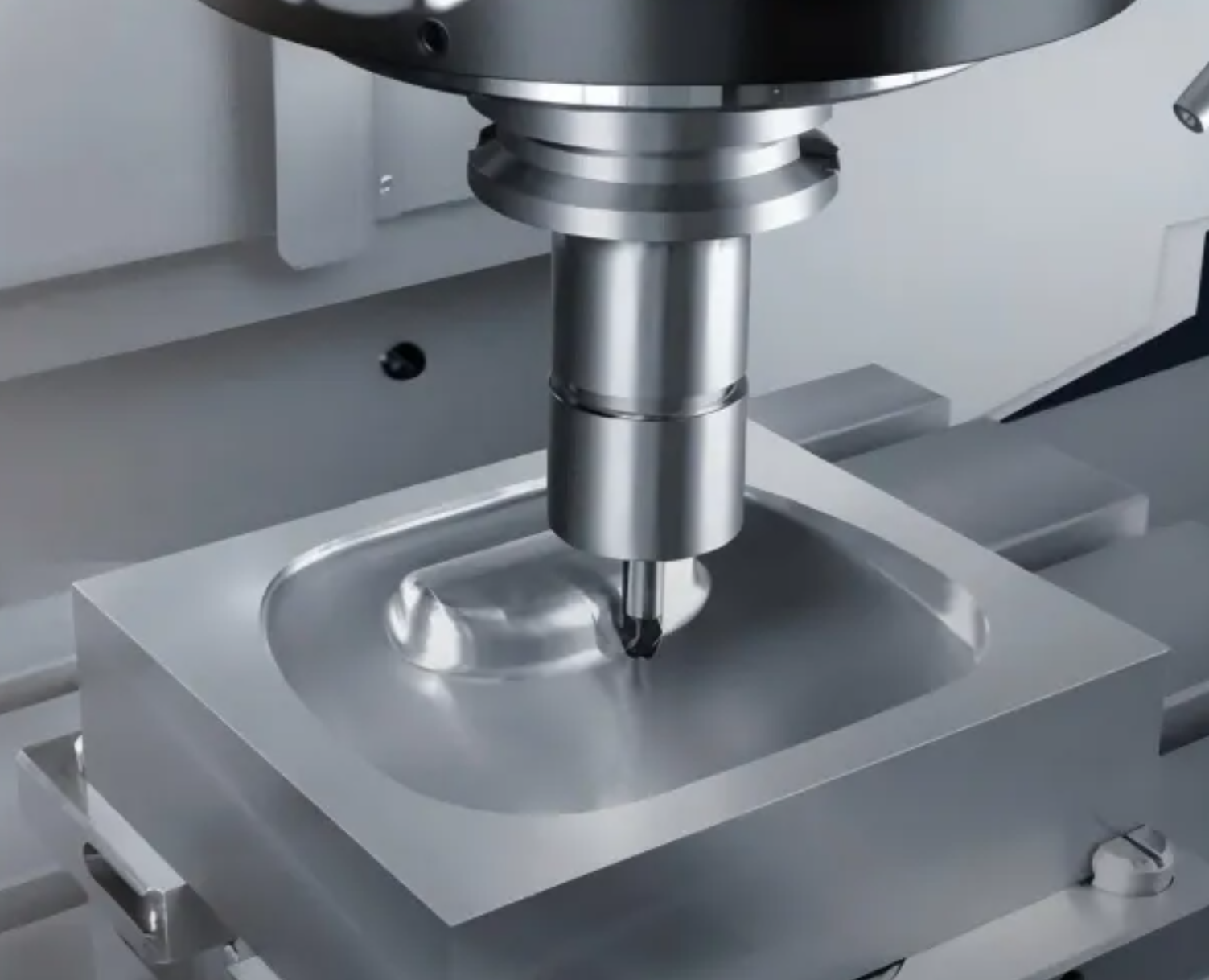

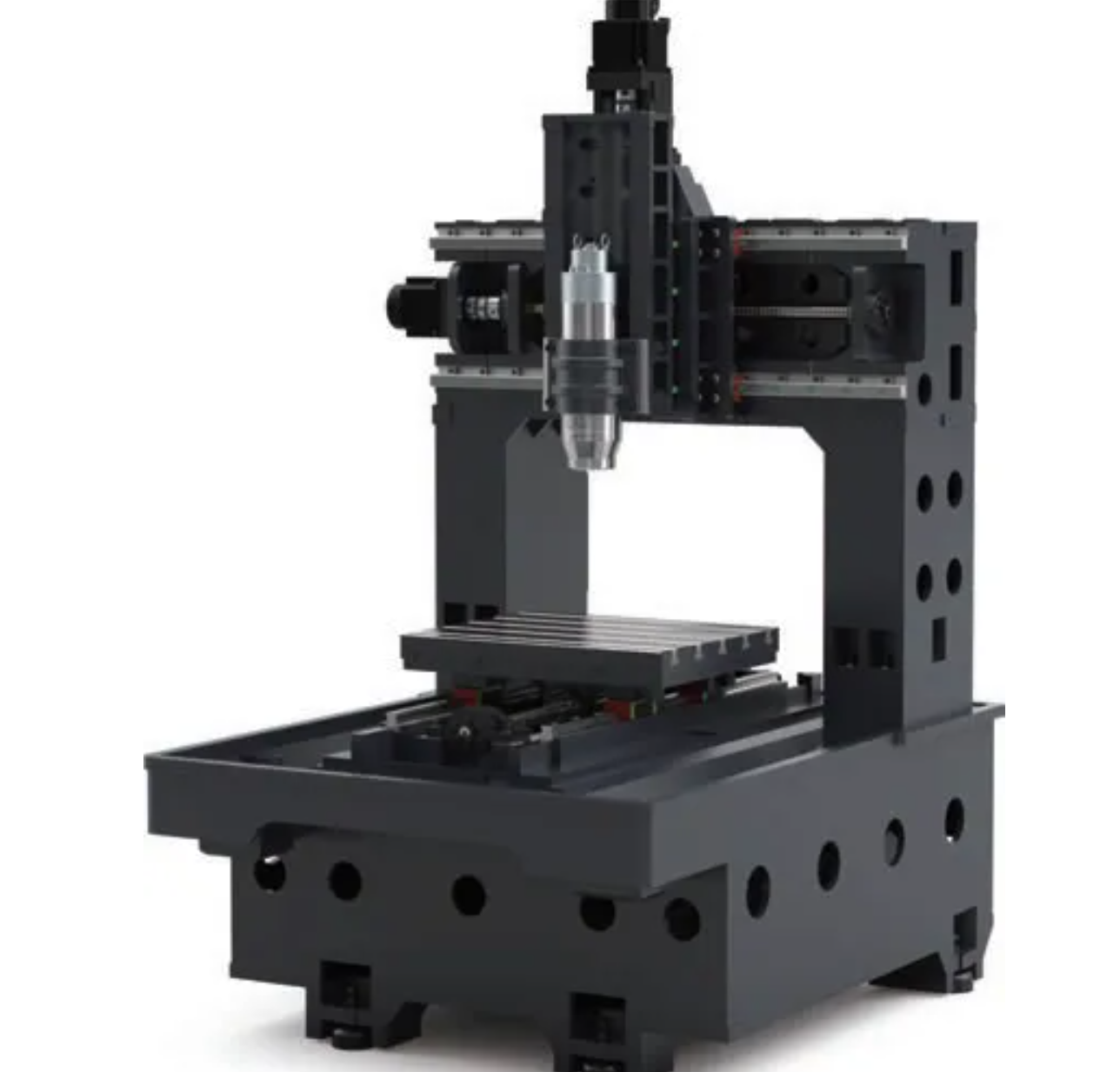

At the heart of a high-speed engraving and milling center lies the sophisticated synergy between an ultra-precise, high-frequency spindle and a mechanically stable machine structure. For machining complex surface details—such as intricate textures on molds, fine lettering, or delicate 3D reliefs—the spindle must deliver exceptional rotational accuracy and minimal runout at very high speeds (often 24,000 RPM or higher). This ensures that even the smallest diameter tools, essential for fine detail, run true and vibrate minimally. However, this high-speed capability is only effective when mounted on a machine with superior dynamic rigidity and damping characteristics. The bed, column, and gantry must be constructed from high-grade, stress-relieved materials (like mineral cast polymer or reinforced cast iron) to absorb vibrations and resist thermal distortion. This stable foundation allows the spindle to translate its rotational precision into impeccable surface finish and geometric accuracy on the workpiece, enabling the creation of details with crisp edges and smooth, flawless surfaces that require minimal post-processing.

Precision in Motion: Control Systems and Tool Path Optimization

The ability to render complex digital designs into physical reality with micron-level fidelity depends on two interconnected systems: the CNC control system and the CAM software. Modern digital servo drives and high-resolution linear encoders provide the control system with the data needed for precise, real-time positioning and velocity control. This enables smooth, jerk-free motion even during rapid directional changes along intricate 3D contours, preventing "stair-stepping" artifacts and maintaining contour fidelity. The intelligence of the operation, however, comes from advanced CAM programming. For high-detail work, the software must generate optimized, high-density tool paths that account for tool deflection, material characteristics, and desired finish. This includes strategies like spiral machining, z-level finishing, and pencil milling to clean out sharp corners. The seamless flow from 3D CAD model, through intelligent CAM toolpath generation, to the machine's precise execution, is what allows a high-speed center to act as a "digital sculptor," faithfully reproducing the most nuanced details of a design.

Tooling and Process Integration for Unmatched Fidelity

The final pillar of precision is the integration of specialized micro-tooling and in-process measurement. Engraving and milling fine details necessitates a vast array of small-diameter end mills, ball nose cutters, and engraving tools, often with diameters below 1mm. A reliable, high-speed automatic tool changer (ATC) is crucial for allowing the machine to switch seamlessly between roughing tools and a sequence of progressively finer finishing tools without manual intervention, maintaining process continuity. Furthermore, the integration of a touch probe or a laser tool setting system elevates the machine's capability from automated to autonomous. The probe can be used for on-machine part setup and verification, ensuring the workpiece is perfectly aligned. More importantly, the laser tool setter can automatically measure tool length and diameter, and detect tool breakage for micro-tools—a critical function, as a broken 0.3mm cutter could otherwise go unnoticed and ruin hours of meticulous work. This closed-loop of precise tool management, combined with the machine's inherent speed and stability, guarantees unmatched fidelity and repeatability in producing complex surfaces, batch after batch.

A high-speed engraving and milling center is a technological symphony where mechanical stability, digital control intelligence, and precision tooling converge to master the art of detail. It transforms the challenge of manufacturing complex, intricate surfaces into a reliable, repeatable, and efficient process. By leveraging high-RPM spindles on rigid frames, executing optimized toolpaths with flawless servo control, and integrating smart tool management, these centers empower manufacturers to push the boundaries of design complexity. Whether producing intricate molds, precision optics, medical components, or luxury decorative items, they deliver the micron-level precision and flawless surface quality that define excellence in advanced manufacturing, making them indispensable tools for innovation and quality.
