Bridge CMM 800x1000x600 For CNC Machined Parts Inspection
2026-06-21 16:06Bridge CMM 800x1000x600 For CNC Machined Parts Inspection
A bridge CMM 800x1000x600 is a practical coordinate measuring machine size for many CNC machining factories that inspect medium-size precision parts. It can be used for aluminum housings, machined plates, steel brackets, mold inserts, automotive components, gearbox parts, EV components, fixtures, and industrial mechanical parts. For buyers who need accurate dimensional inspection, GD&T reports, first article inspection, and batch quality control, an 800x1000x600 bridge CMM can provide a balanced solution between measuring capacity, floor space, price, and inspection capability.
Quick Answer
A bridge CMM 800x1000x600 is suitable for CNC machined parts when the workpiece, fixture height, probe clearance, and required measuring features fit within the usable measuring volume. It is commonly used for medium-size aluminum parts, steel machined components, automotive housings, precision brackets, tooling parts, and first article inspection. Buyers should confirm part size, tolerance, weight, probe access, software requirements, fixture method, and installation conditions before requesting a quotation.

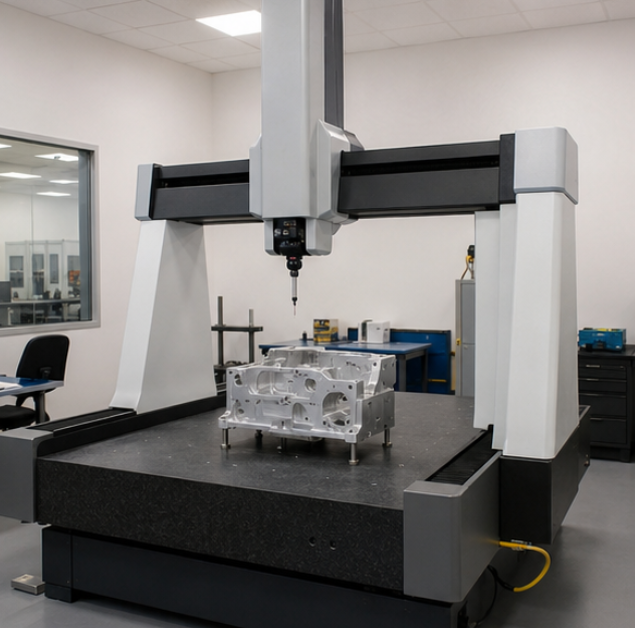

1. Why 800x1000x600 Is A Popular Bridge CMM Size
The 800x1000x600 measuring range is often selected by CNC machining factories because it can cover many medium-size parts without requiring an oversized machine. For many factories, this size is large enough for common machined housings, plates, brackets, fixtures, mold inserts, and precision components, while still being easier to install and operate than very large CMM systems.
However, buyers should remember that 800x1000x600 refers to the nominal measuring range. The actual usable space depends on the part size, fixture height, clamp position, probe head, stylus length, and safe movement clearance. A part that looks suitable by size may still need a larger machine if it requires tall fixtures, side access, long styli, or multiple probe angles.
Before choosing this model, the supplier should review the buyer’s largest workpiece, drawings, CAD files, and inspection features.

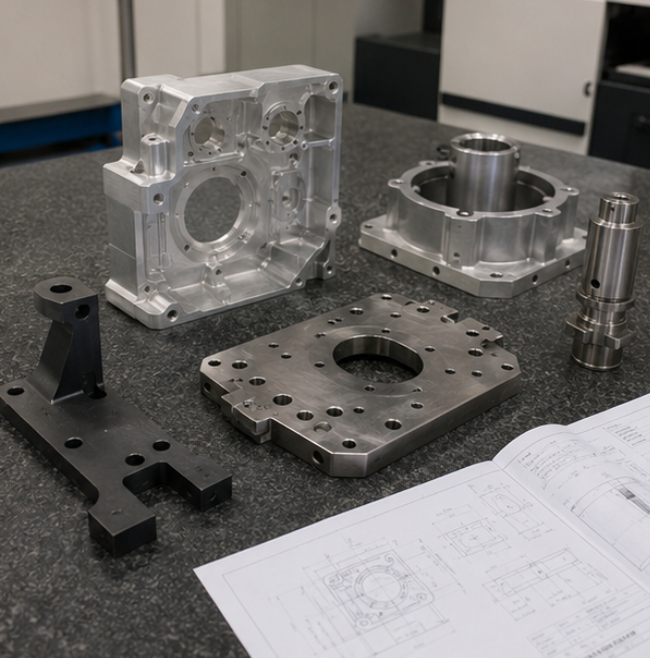

2. Typical CNC Machined Parts Suitable For 800x1000x600 CMM
An 800x1000x600 bridge CMM is suitable for many CNC machined parts used in automotive, machinery, mold, tooling, electronics, robotics, EV components, and industrial equipment applications. The key is not only part size, but also the tolerance level and measured features.
| CNC Part Type | Inspection Focus | Why 800x1000x600 May Fit |
|---|---|---|
| Aluminum CNC Housings | Bores, mounting holes, sealing faces, datum planes | Suitable for many medium-size housings and machined aluminum bodies |
| Steel Brackets | Hole pattern, flatness, perpendicularity, profile | Enough space for medium brackets and fixture support |
| Machined Plates | Flatness, hole position, parallelism, slot dimensions | Good for plates that need accurate 3D inspection and report output |
| Mold Inserts | Profiles, slots, steps, locating holes, datum surfaces | Useful for mold shops inspecting precision tooling parts |
| Automotive Components | Bore alignment, sealing faces, mounting holes, GD&T | Suitable for many medium automotive machined parts and housings |

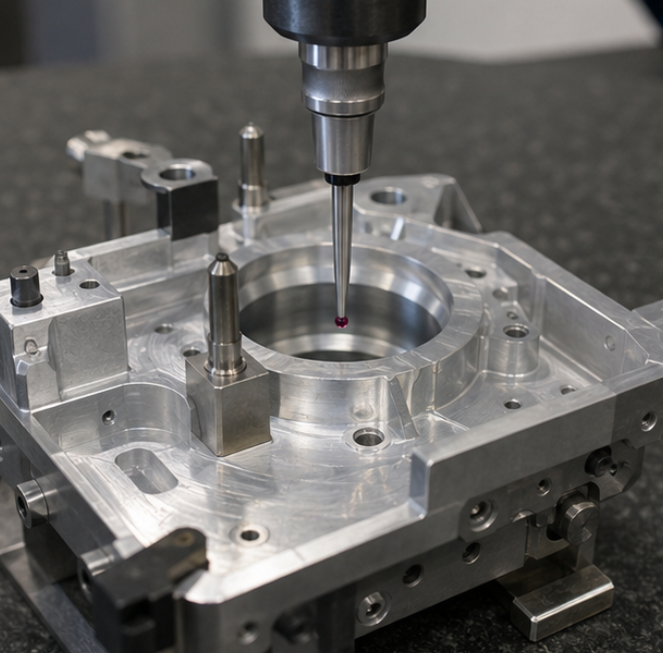

3. What CNC Features Can Be Inspected
CNC machined parts usually contain more than simple outside dimensions. Many parts require inspection of three-dimensional relationships, datum references, hole positions, profiles, planes, bores, and GD&T features. A bridge CMM can help quality teams inspect these features more consistently than manual tools.
| Measured Feature | Common Requirement | CMM Inspection Value |
|---|---|---|
| Hole Position | Bolt pattern accuracy and datum-based position tolerance | Verifies assembly fit and customer drawing compliance |
| Bores And Cylinders | Diameter, roundness, cylindricity, coaxiality | Supports bearing seat, shaft hole and precision fitting inspection |
| Flatness And Parallelism | Mounting planes, sealing faces and assembly surfaces | Checks functional contact surfaces more reliably |
| Slots And Steps | Width, depth, location, perpendicularity and profile | Useful for machined pockets, guide slots and functional steps |
| Profile And Contour | CAD-based shape verification and surface deviation | Can support profile comparison if software and probe package allow |
4. How To Confirm Whether 800x1000x600 Is Enough
Before selecting a bridge CMM 800x1000x600, buyers should compare the machine measuring range with the real inspection setup. The part itself is only one part of the decision. Fixture height, clamps, probe head size, stylus reach and safe travel space all affect whether the machine is suitable.
Size Confirmation Checklist
What is the largest part length, width and height?
What is the maximum part weight?
Will the part be placed directly on the granite table or on a fixture?
How high is the fixture or support tooling?
Does the probe need to measure side holes, deep bores or internal features?
Will future parts be larger than current parts?
Does the inspection require manual loading, trolley loading or crane loading?
5. Recommended Configuration For CNC Parts Inspection
A bridge CMM 800x1000x600 should be configured according to the buyer’s inspection task. The machine size alone does not decide the final capability. Probe system, software modules, fixture strategy and calibration support are also important.
| Configuration Area | Recommended Focus | Buyer Benefit |
|---|---|---|
| Machine Structure | Stable bridge structure and granite base | Supports repeatable inspection for precision parts |
| Probe Package | Touch probe for holes, planes and bores; scanning option if profiles are required | Matches real CNC part features |
| Stylus Kit | Different ball sizes, stylus lengths and extensions | Improves access to bores, holes, slots and side features |
| Software | CAD import, GD&T evaluation, automatic report, SPC output | Supports customer approval and batch quality control |
| Service | Calibration, installation guidance, training and after-sales response | Reduces operating risk after delivery |
6. Software And Report Functions For CNC Manufacturing
CNC machining factories often need inspection reports for first article approval, customer audit, batch production control and final quality confirmation. The CMM software should help generate clear and traceable reports that include nominal values, measured values, deviation, tolerance, pass/fail result, datum reference, part ID, drawing number and inspection date.
If the factory handles automotive, aerospace, EV or export customers, GD&T and CAD-based reporting may be especially important.
Software Functions Buyers Should Confirm
CAD model import for measurement programming
GD&T evaluation for position, flatness, profile, runout and datums
Automatic inspection report generation
SPC output for batch quality monitoring
Scanning data processing if profile measurement is required
Report export format for customer approval
Multi-language or customized report template if needed
7. Installation Requirements Buyers Should Prepare
A bridge CMM 800x1000x600 should be installed in a suitable inspection environment. Temperature, vibration, air supply, power supply, floor condition and available space can affect measurement performance. Buyers should prepare the installation area before the machine arrives.
| Installation Item | Buyer Should Check |
|---|---|
| Room Space | Enough space for machine, operator, computer, loading and maintenance |
| Temperature Control | Stable inspection environment according to supplier recommendation |
| Vibration | Avoid installation near heavy machining vibration if possible |
| Air Supply | Confirm clean and stable compressed air if required |
| Power Supply | Confirm voltage, grounding and electrical requirements |
8. What Buyers Should Provide Before Requesting A Quote
To recommend whether a bridge CMM 800x1000x600 is suitable, the supplier needs real part and inspection information. A simple request for machine price may lead to a configuration that does not fully match the buyer’s quality control needs.
Quotation Information Checklist
CNC part drawings and CAD files
Maximum part length, width, height and weight
Material, machining process and surface condition
Critical dimensions, tolerance requirements and GD&T items
Measured features: holes, bores, flatness, profiles, slots, side features and datum planes
Inspection purpose: first article inspection, batch inspection, final inspection or customer approval
Required probe package, software functions, fixture method and report format
Destination country, installation environment and service expectations
9. Common Mistakes To Avoid
Choosing 800x1000x600 only by part size without considering fixture and probe clearance.
Ignoring part weight and loading method.
Using a basic probe package when deep bores, side holes or profiles need special accessories.
Buying software that cannot support required GD&T reports.
Not confirming calibration certificate, installation support and operator training.
Comparing only the machine price instead of the complete inspection solution.
Requesting a quotation without drawings, CAD files or tolerance requirements.
Forgetting future part size and inspection expansion needs.
Conclusion
A bridge CMM 800x1000x600 is a practical choice for many CNC machining factories inspecting medium-size precision parts. It can support first article inspection, batch inspection, final inspection and customer approval when the part size, fixture height, probe access, tolerance and software requirements are suitable. Buyers should confirm real part drawings, CAD files, measured features, installation conditions and report needs before requesting a quotation. The best CMM solution should match actual inspection work, not only the nominal measuring range.
FAQ
1. What does 800x1000x600 mean for a bridge CMM?
It usually refers to the nominal X/Y/Z measuring range of the machine. Buyers should still confirm usable measuring volume after considering fixture height, probe clearance and part loading method.
2. Is 800x1000x600 suitable for all CNC machined parts?
No. It is suitable for many medium-size parts, but the final decision depends on part size, fixture height, tolerance, probe access, measured features and future inspection plans.
3. What parts are commonly inspected with this CMM size?
Common parts include aluminum housings, steel brackets, machined plates, mold inserts, tooling components, automotive parts, EV components and industrial precision parts.
4. What should buyers send before requesting a quotation?
Buyers should send drawings, CAD files, maximum part size, part weight, tolerance requirements, measured features, inspection purpose, software report needs and destination country.
Need A Bridge CMM 800x1000x600 For CNC Parts Inspection?
Send us your CNC part drawings, CAD files, tolerance requirements, measured features and destination country. We can help evaluate whether an 800x1000x600 bridge CMM is suitable for your inspection project.
